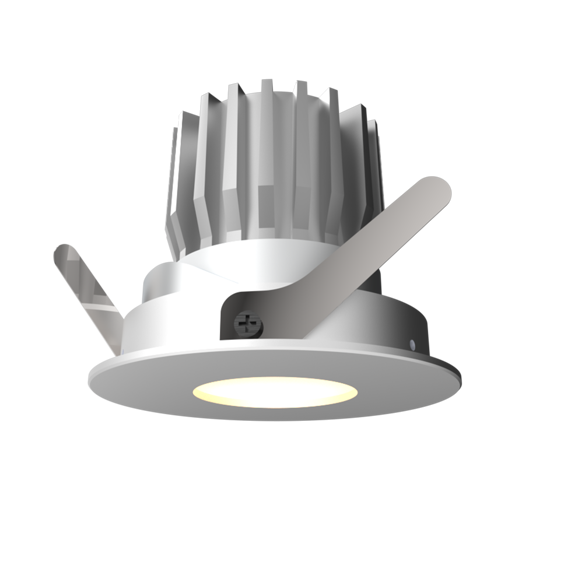

Zagreb 1080X1080

Zagreb

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector & Transparent Diffuser

Luminous Flux
1183 lm / 637 lm / 819 lm

Consumption Power
13 W / 7 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 02 50K LED life

LED life

Colour Options

RAL 9005

RAL 9010

RAL 9006

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9010 - RAL 9006
Housing Aluminum Extrusion
Optics 15° 30° 40° Reflector & Transparent Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 1183 lm / 637 lm / 819 lm
Consumption Power 13 W / 7 W / 9 W
Luminaire Efficiency 91 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >50.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

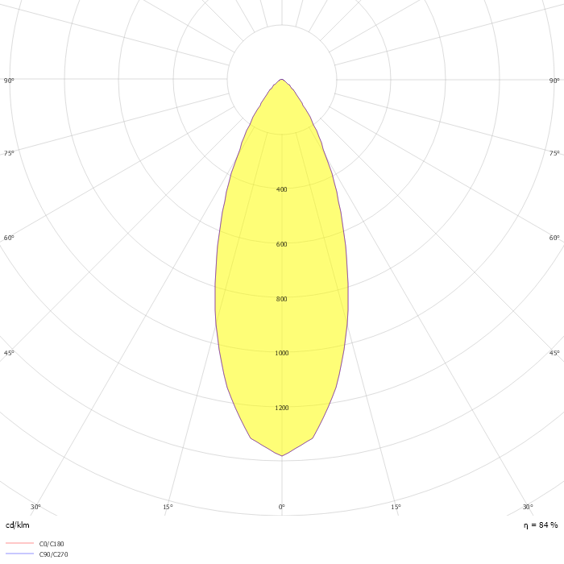

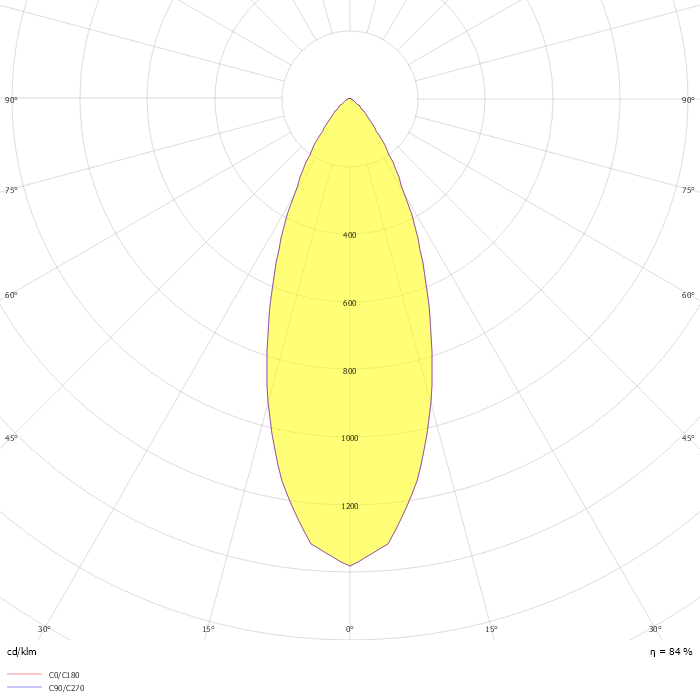

Optics

Dimensions

Zagreb Teknik (1)

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet	LDT
13003938	BDP 009 007 007A 9040 10 15 SD 44 RT	7	637	4000	15° Reflector	Ø92
13003954	BDP 009 007 007A 9040 10 30 SD 44 RT	7	637	4000	30° Reflector	Ø92
13003970	BDP 009 007 007A 9040 10 40 SD 44 RT	7	637	4000	40° Reflector	Ø92
13003986	BDP 009 007 009A 9040 10 15 SD 44 RT	9	819	4000	15° Reflector	Ø92
13003926	BDP 009 007 009A 9040 10 30 SD 44 RT	9	819	4000	30° Reflector	Ø92
13004015	BDP 009 007 009A 9040 10 40 SD 44 RT	9	819	4000	40° Reflector	Ø92
13004031	BDP 009 007 013A 9040 10 15 SD 44 RT	13	1183	4000	15° Reflector	Ø92
13004046	BDP 009 007 013A 9040 10 30 SD 44 RT	13	1183	4000	30° Reflector	Ø92
13004061	BDP 009 007 013A 9040 10 40 SD 44 RT	13	1183	4000	40° Reflector	Ø92
