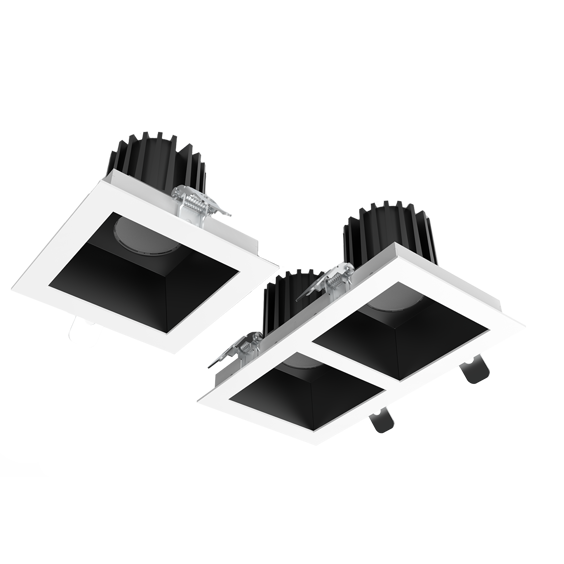

Oblong 1080X1080

Oblong II

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector & Opal Diffuser

Luminous Flux
1260 lm / 1620 lm / 2340 lm

Consumption Power
14 W / 18 W / 26 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 02 70K LED life

LED life

Colour Options

RAL 9005

RAL 9006

RAL 9010

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9006 - RAL 9010
Housing DKP Sheet
Optics 15° 30° 40° Reflector & Opal Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 1260 lm / 1620 lm / 2340 lm
Consumption Power 14 W / 18 W / 26 W
Luminaire Efficiency 90 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

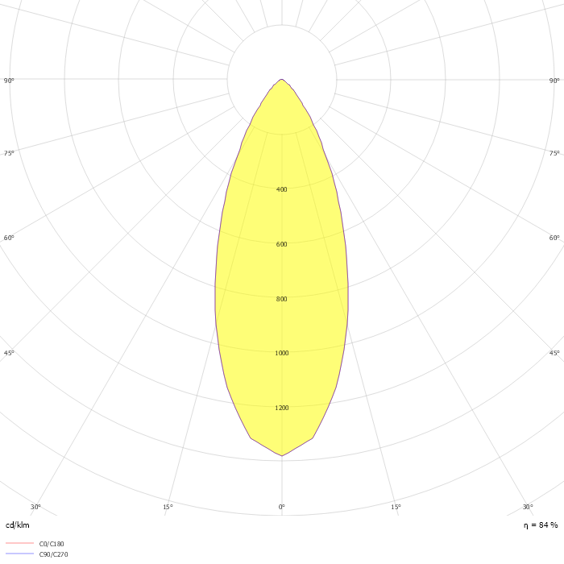

Optics

Dimensions

Oblong Tekli (1)

Oblong İkili (1)

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
13501647	OBL 019 008 014A 8040 10 15 SD 40 00	14	1260	4000	15° Reflector	107x107x86
13501665	OBL 019 008 014A 8040 10 30 SD 40 00	14	1260	4000	30° Reflector	107x107x86
13501683	OBL 019 008 014A 8040 10 40 SD 40 00	14	1260	4000	40° Reflector	107x107x86
13501701	OBL 019 008 018A 8040 10 15 SD 40 00	18	1620	4000	15° Reflector	107x107x86
13501719	OBL 019 008 018A 8040 10 30 SD 40 00	18	1620	4000	30° Reflector	107x107x86
13501737	OBL 019 008 018A 8040 10 40 SD 40 00	18	1620	4000	40° Reflector	107x107x86
13501755	OBL 019 008 026A 8040 10 15 SD 40 00	26	2340	4000	15° Reflector	107x107x86
13501773	OBL 019 008 026A 8040 10 30 SD 40 00	26	2340	4000	30° Reflector	107x107x86
13501791	OBL 019 008 026A 8040 10 40 SD 40 00	26	2340	4000	40° Reflector	107x107x86
