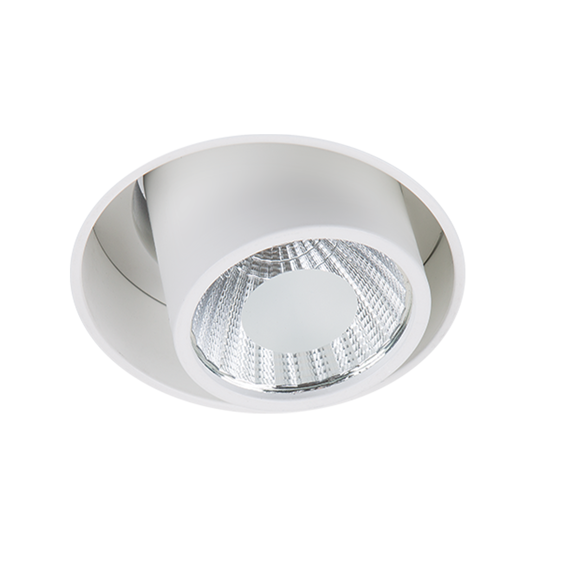

Beetle 1080X1080

Beetle

Recessed Downlight & Spot Luminary

Optics
30°Reflector

Luminous Flux
1170 lm / 810 lm

Consumption Power
13 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 02 50K LED life

LED life

Colour Options

RAL 9005

RAL 9006

RAL 9010

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9006 - RAL 9010
Housing Aluminum
Optics 30°Reflector
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 1170 lm / 810 lm
Consumption Power 13 W / 9 W
Luminaire Efficiency 810 lm /1170 lm
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >50.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

Optics

30º

Dimensions

Beetle (1)

Product Variations

Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
BTL 008 009 009T 8027 10 30 SD 40 00	9	810	4000	25° Reflector	Ø85x68
BTL 008 009 013T 8027 10 30 SD 40 00	13	1170	4000	25° Reflector	Ø85x68

Download

Create fact sheet (pdf)

Related Products

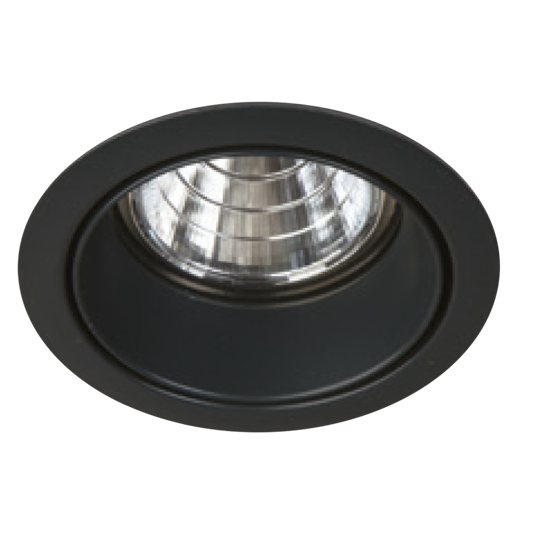

Budapeşte 1080X1080

Budapeşte Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

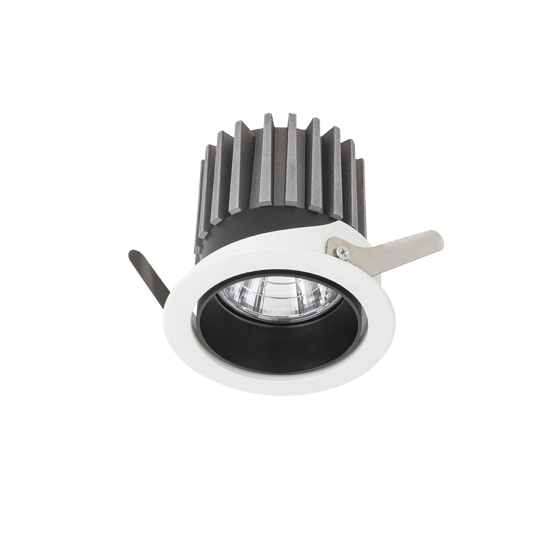

Budapeste A 1 1080X1080

Budapeşte A Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

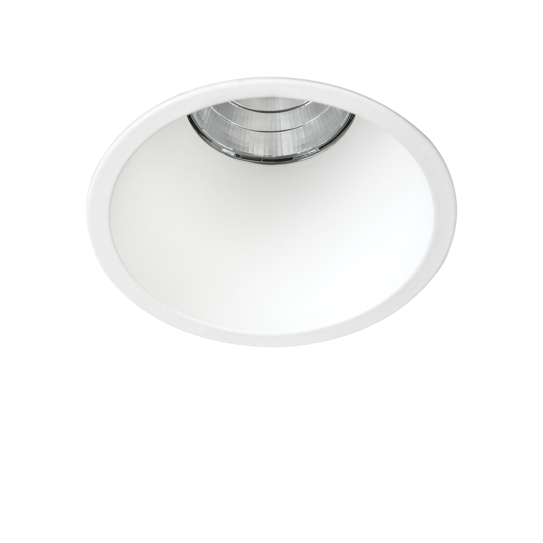

Rainbow Beyaz 1080X1080

Rainbow Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

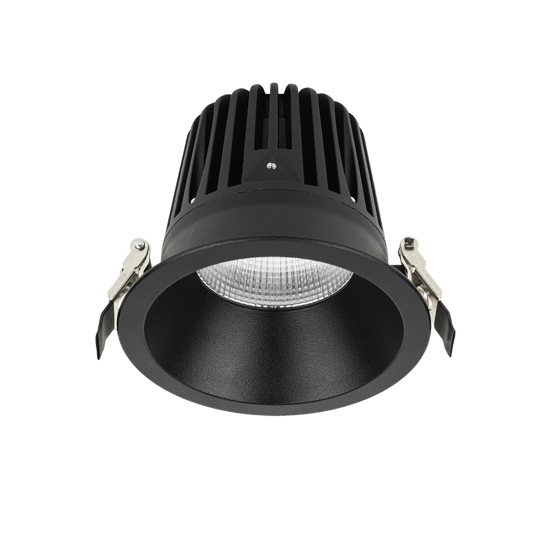

Sole 1080X1080 1

Sole Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

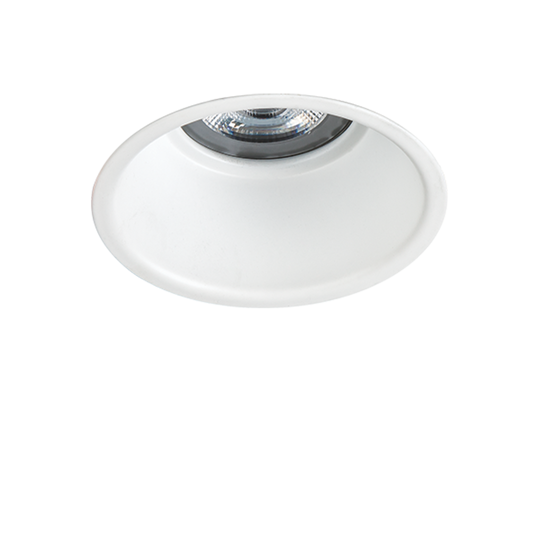

Recta 1080X1080

Recta Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

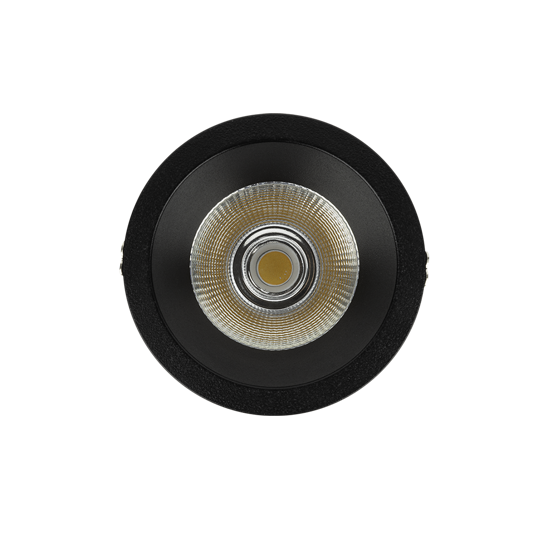

Solemandarin 1080X1080 2

Sole Mandarin Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

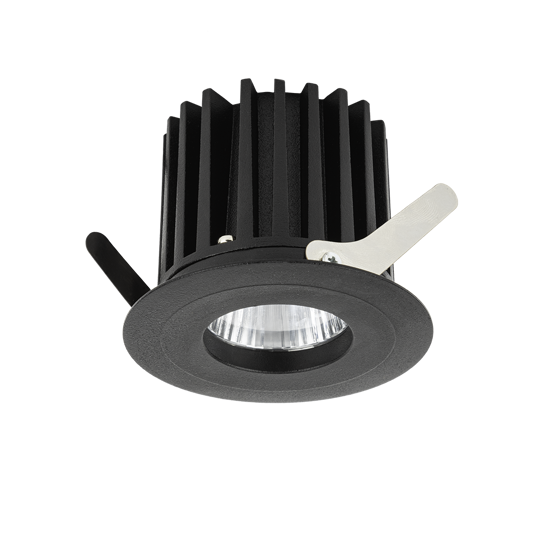

Sturdy S 1080X1080 1

Sturdy S Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

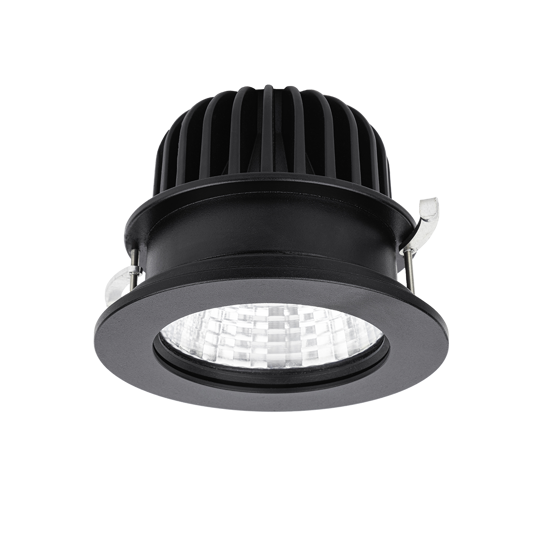

Sturdy M 1080X1080 1

Sturdy M Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Wina S Hareketli 1080X1080 1

Wina S HR Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

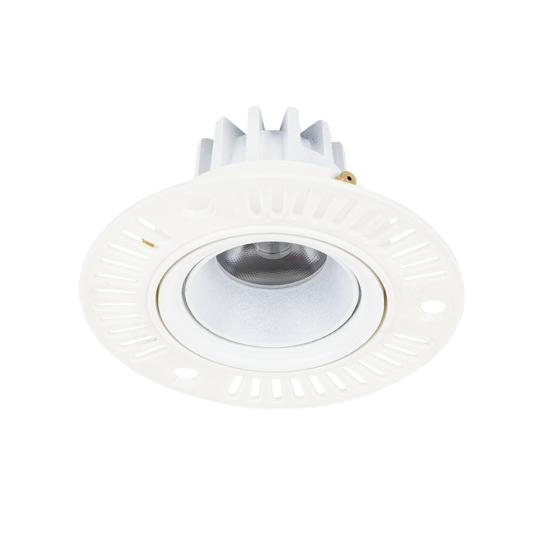

Wina Trimless Hareketli 1080X1080

Wina S TH Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

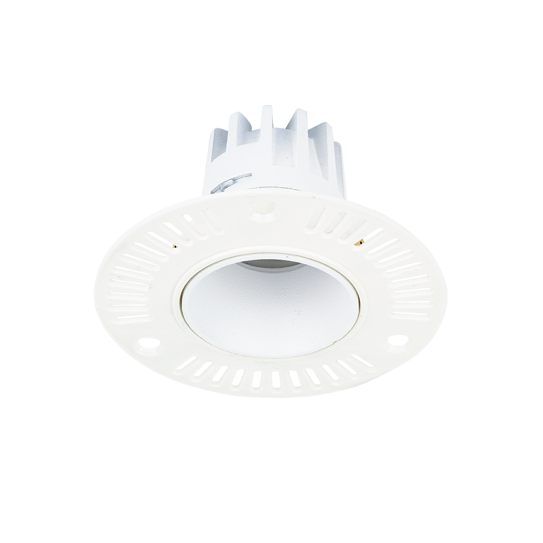

Wina Sabit Trimless 1080X1080

Wina S TS Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

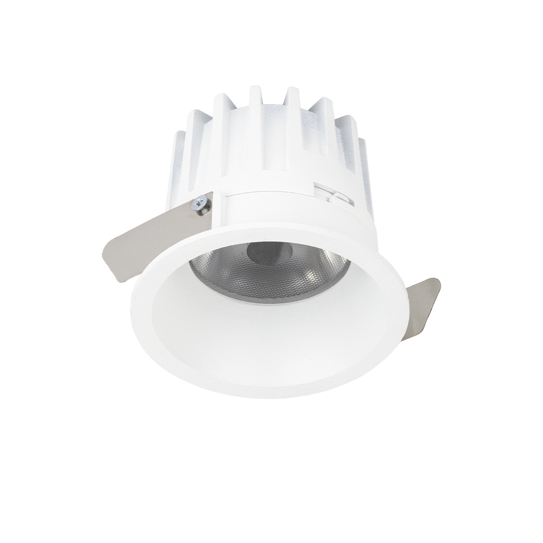

Wina M 1080X1080

Wina M Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

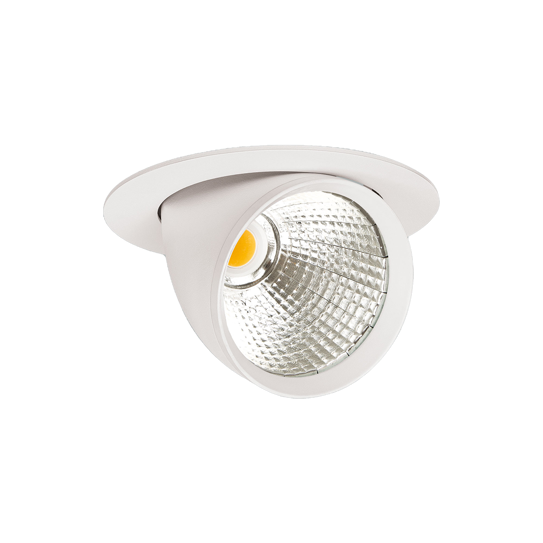

Helix 1080X1080

Helix Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

Parent Beyaz Tekli 1080X1080

Parent I & II Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

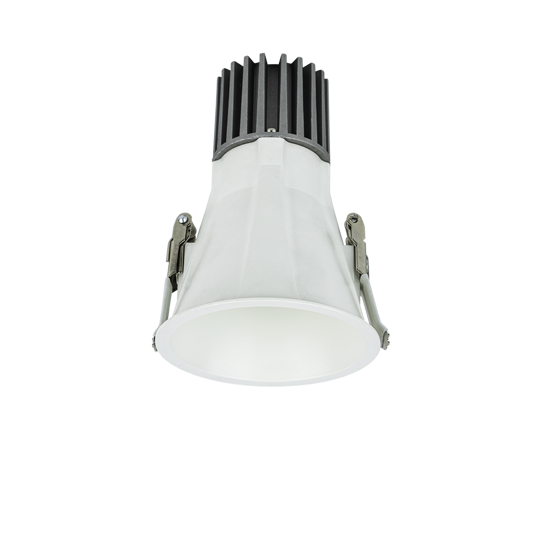

Rainbow Deep 1080X1080

Rainbow Deep Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006/RAL 9016
2700K/3000K/4000K/6500K

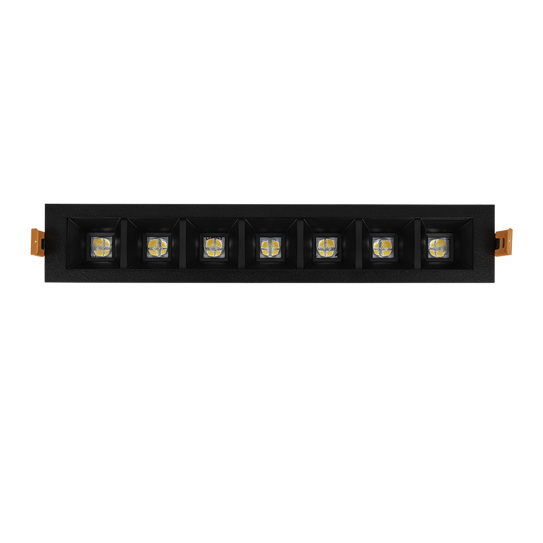

Sharp R 3 1080X1080

Sharp R Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

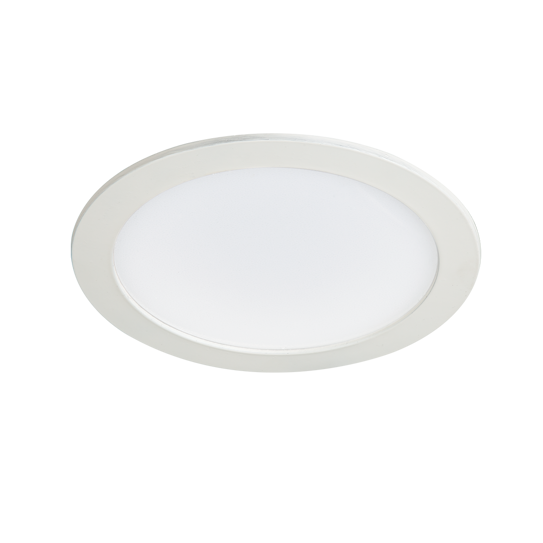

Solid 1080X1080 1

Solid Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

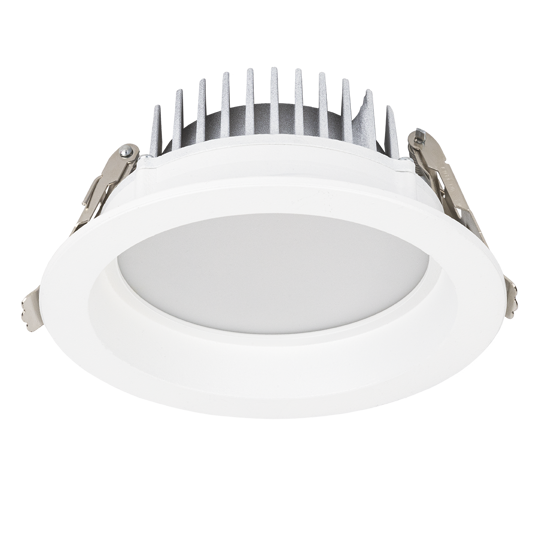

Solid Level 1080X1080 1

Solid Level Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

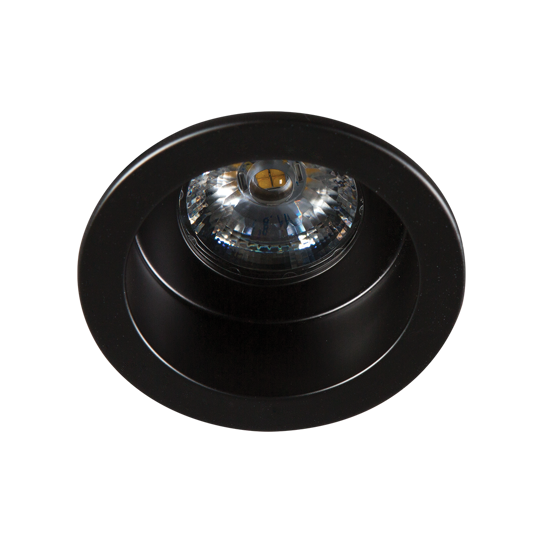

Eye M 1080X1080
