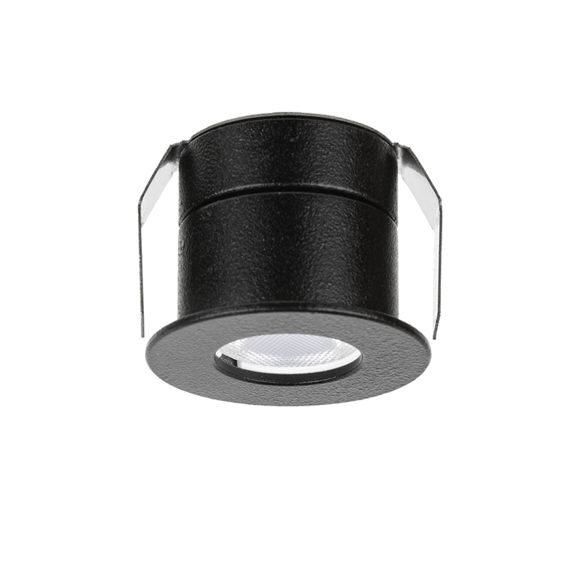

Stretto 1080X1080 1

Stretto

Recessed Downlight & Spot Luminary

Optics
Opal Diffuser

Luminous Flux
80 lm

Consumption Power
1 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9010
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9010 - RAL 9006
  • Housing Aluminum DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 80 lm
  • Consumption Power 1 W
  • Luminaire Efficiency 80 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

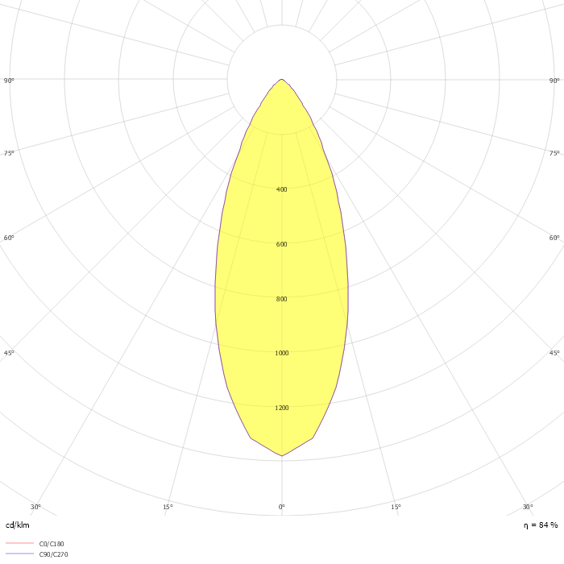

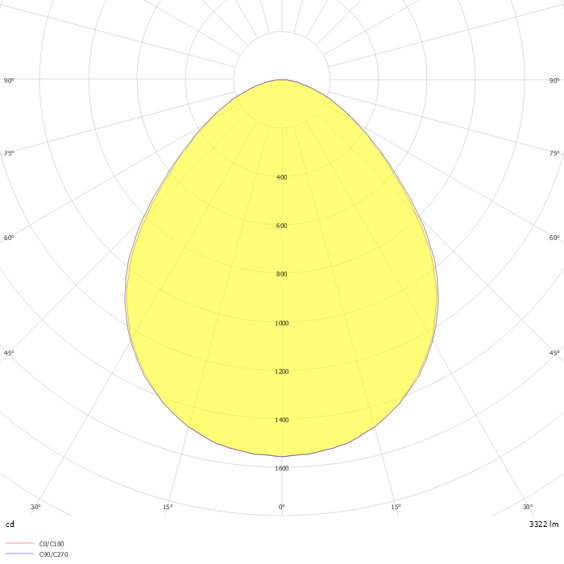

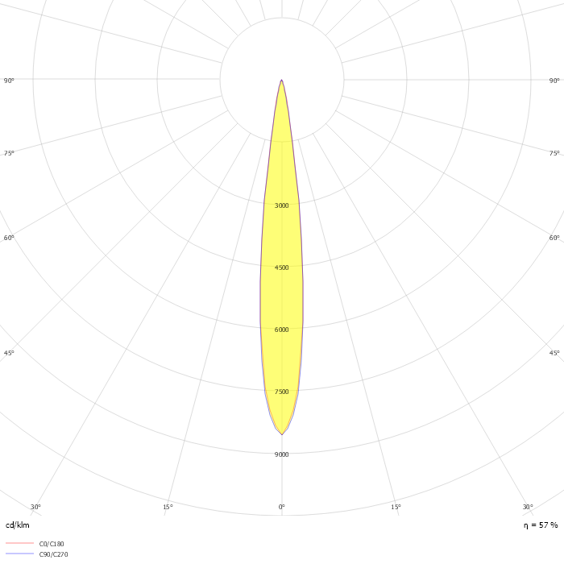

Optics
14º40º90º
Previous
Previous
Dimensions
Stretto 2
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
13004174 STT 003 002 001A 8027 10 15 LN 40 00 1 80 4000 15° Diffuser Ø24,5x21,15 Datasheet
13004175 STT 003 002 001A 8030 10 40 LN 40 00 1 80 4000 40° Diffuser Ø24,5x21,15 Datasheet
STT 003 002 001A 8030 10 90 LN 40 00 1 80 4000 90° Diffuser Ø24,5x21,15 Datasheet
Download
