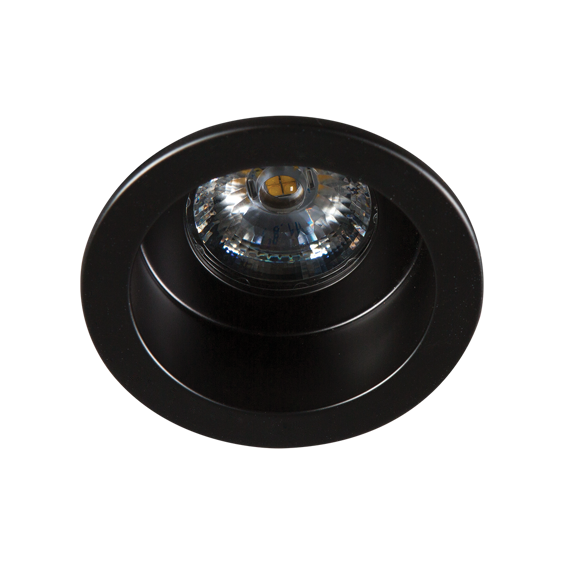

Eye M

Recessed Downlight & Spot Luminary

Optics
25° 36° Lens and Transparent Diffuser

Luminous Flux
449 lm / 641 lm

Consumption Power
5,2 W / 7,4 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 03 100KLED life
Colour Options
RAL 9005
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9006
  • Housing Alüminyum Ekstrüzyon
  • Optics 25° 36° Lens and Transparent Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 449 lm / 641 lm
  • Consumption Power 5,2 W / 7,4 W
  • Luminaire Efficiency 86 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

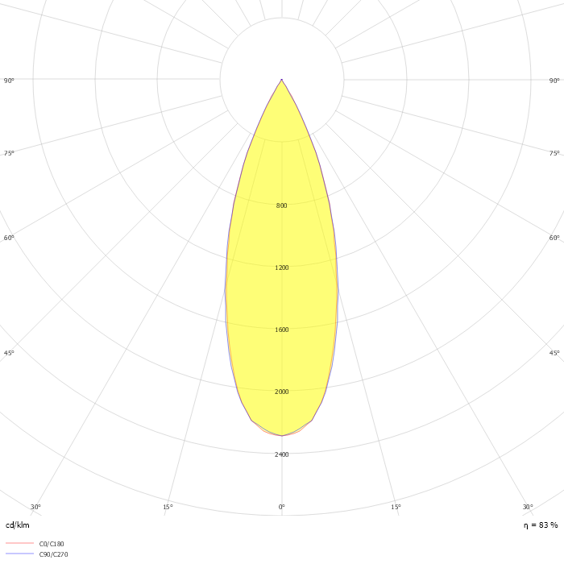

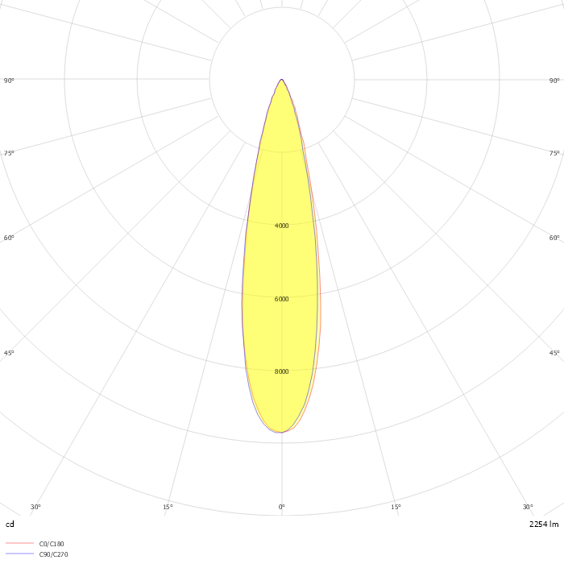

Optics
35º24º
Previous
Previous
Dimensions
Eye M (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
EYE 006 005 005A 8040 10 25 LN 40 00 5,2 449 4000 25° Reflector Ø65 Datasheet
EYE 006 005 005A 8040 10 36 LN 40 00 5,2 449 4000 36° Reflector Ø65 Datasheet
EYE 006 005 007A 8040 10 25 LN 40 00 7,4 641 4000 25° Reflector Ø65 Datasheet
EYE 006 005 007A 8040 10 36 LN 40 00 7,4 641 4000 36° Reflector Ø65 Datasheet
