Pure M 1080X1080

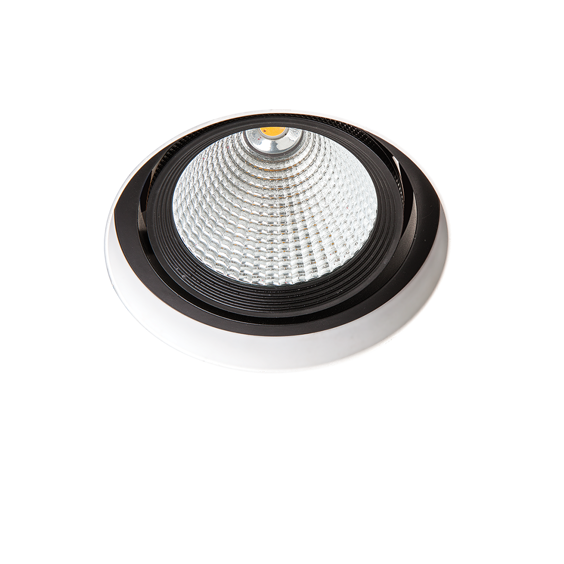

Pure M

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector & Transparent Diffuser

Luminous Flux
1170 lm / 810 lm

Consumption Power
13 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 70K LED life

LED life

Colour Options

RAL 9005

RAL 9010

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9010
Housing Aluminum Injection
Optics 15° 30° 40° Reflector & Transparent Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
Operating Temperature -20°C / +40°C
Luminous Flux 1170 lm / 810 lm
Consumption Power 13 W / 9 W
Luminaire Efficiency 90 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

Optics

Dimensions

Pure M (1)

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
13000253	PUR 009 008 009T 8040 10 15 SD 40 00	9	810	4000	15° Reflector	Ø89,5x83,5
13000271	PUR 009 008 009T 8040 10 30 SD 40 00	9	810	4000	30° Reflector	Ø89,5x83,5
13000289	PUR 009 008 009T 8040 10 40 SD 40 00	9	810	4000	40° Reflector	Ø89,5x83,5
13000307	PUR 009 008 013T 8040 10 15 SD 40 00	13	1170	4000	15° Reflector	Ø89,5x83,5
13000325	PUR 009 008 013T 8040 10 30 SD 40 00	13	1170	4000	30° Reflector	Ø89,5x83,5
13001501	PUR 009 008 013T 8040 10 40 SD 40 00	13	1170	4000	40° Reflector	Ø89,5x83,5

Download

Create fact sheet (pdf)
