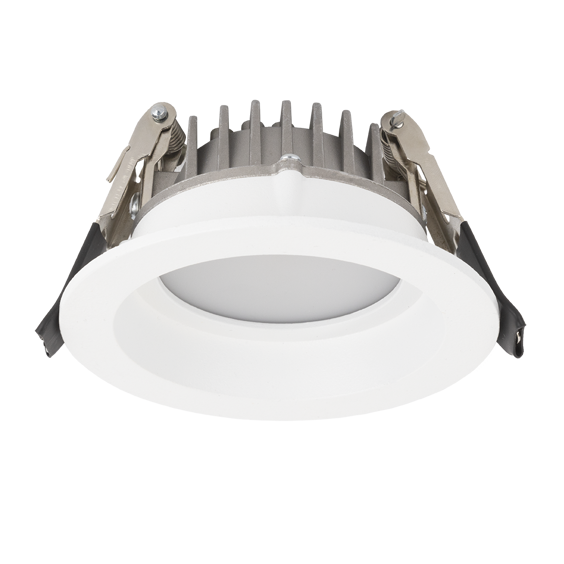

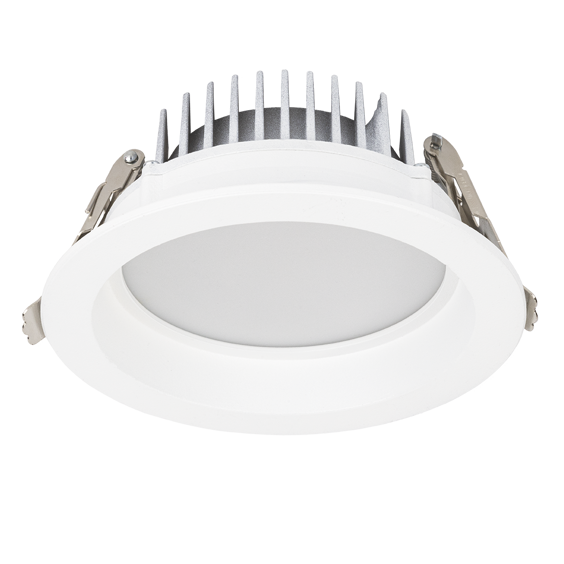

Solid Level

Recessed Downlight & Spot Luminary

Optics
Opal Diffuser

Luminous Flux
2250 lm / 2856 lm / 395 lm / 711 lm

Consumption Power
18 W / 24 W / 5 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9010
RAL 9005
RAL 9016
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9010 - RAL 9005 - RAL 9016 - RAL 9006
  • Housing Aluminum
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 2250 lm / 2856 lm / 395 lm / 711 lm
  • Consumption Power 18 W / 24 W / 5 W / 9 W
  • Luminaire Efficiency 79 lm/W - 125 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

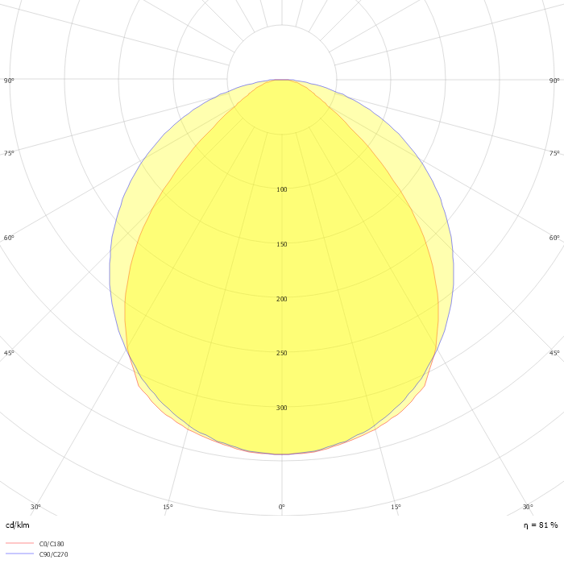

Optics
110º
Dimensions
Solid Level Ø200 (1)Solid Level Ø120 (1)Solid Level Ø84.5 (1)Solid Level Ø165 (1)
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SLL 011 005 005A 8040 10 99 OP 40 00 5 395 4000 120° Opal Diffuser Ø110 Datasheet
SLL 015 006 009A 8040 10 99 OP 40 00 9 711 4000 120° Opal Diffuser Ø150 Datasheet
SLL 019 007 018A 8040 10 99 OP 40 00 18 2250 4000 120° Opal Diffuser Ø195 Datasheet
SLL 023 008 024A 8030 10 99 OP 40 00 24 2856 4000 120° Opal Diffuser Ø230 Datasheet
