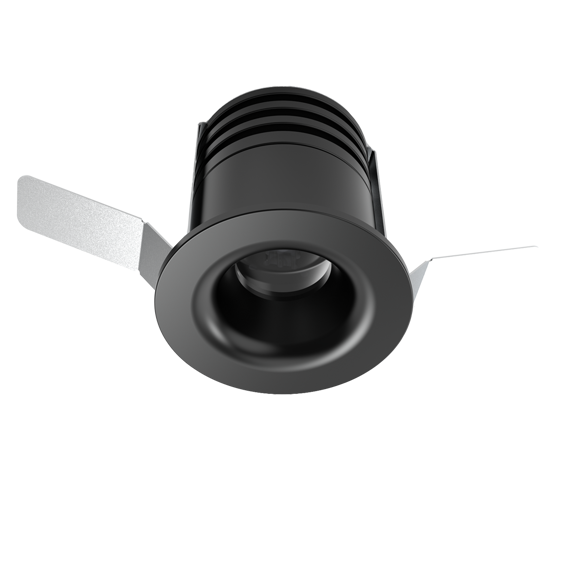

Stretto Deep 1080X1080 (1)

Stretto Deep

Recessed Downlight & Spot Luminary

Optics
15° 40° 90° Lens

Luminous Flux
80 lm

Consumption Power
1 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9010
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9010 - RAL 9006
  • Housing Aluminum DKP Sheet
  • Optics 15° 40° 90° Lens
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 80 lm
  • Consumption Power 1 W
  • Luminaire Efficiency 80 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

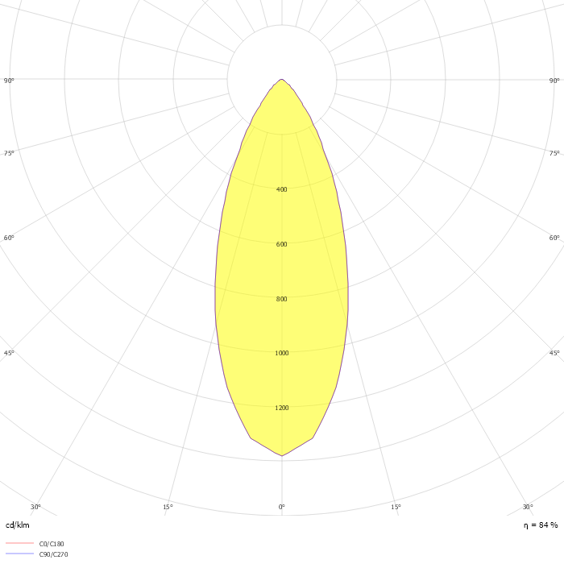

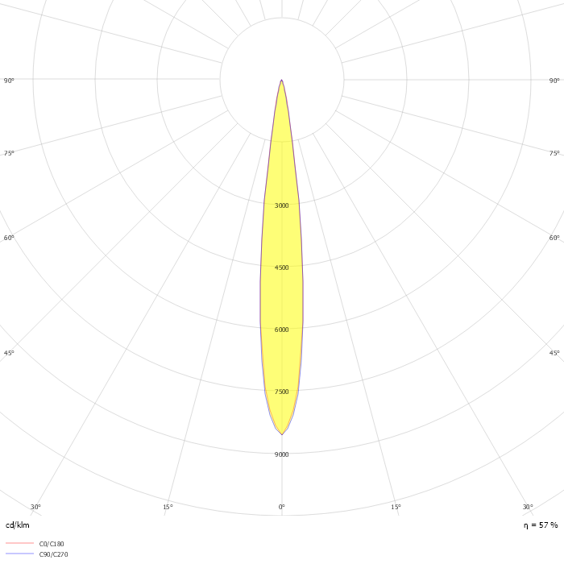

Optics
14º40º
Previous
Previous
Dimensions
Stretto Deep (2)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SDP 004 003 001A 8040 10 15 LN 40 00 1 80 4000 15° Lens Ø29x22 Datasheet
13004190 SDP 004 003 001A 8040 10 40 LN 40 00 1 80 4000 40° Lens Ø29x22 Datasheet
Download
