Solid

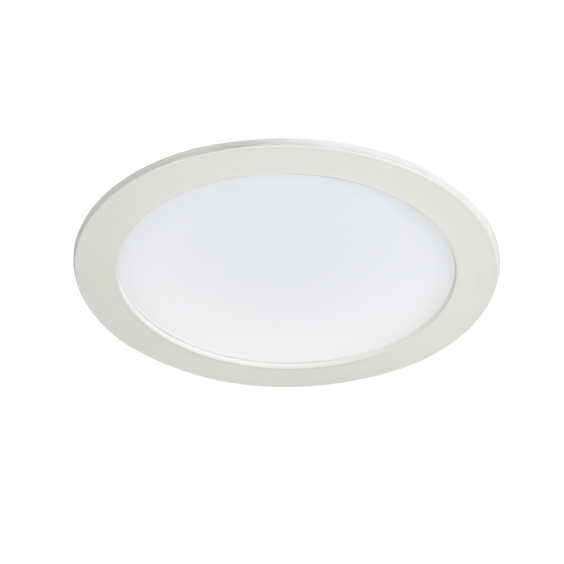

Recessed Downlight & Spot Luminary

Optics
Opal Diffuser

Luminous Flux
2250 lm / 2856 lm / 474 lm / 990 lm

Consumption Power
18 W / 24 W / 6 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9010
RAL 9005
RAL 9016
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9010 - RAL 9005 - RAL 9016 - RAL 9006
  • Housing Aluminum Extrusion
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 2250 lm / 2856 lm / 474 lm / 990 lm
  • Consumption Power 18 W / 24 W / 6 W / 9 W
  • Luminaire Efficiency 79 lm/W - 125 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
110º
Dimensions
Solid Ø85 (1)Solid Ø120 (1)Solid Ø200 (1)Solid Ø165 (1)
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SLD 010 005 006A 8040 10 99 OP 40 00 6 474 4000 120° Opal Ø100 Datasheet
SLD 013 005 009A 8040 10 99 OP 40 00 9 990 4000 120° Opal Ø135 Datasheet
SLD 018 005 018A 8040 10 99 OP 40 00 18 2250 4000 120° Opal Ø180 Datasheet
SLD 021 005 024A 8040 10 99 OP 40 00 24 2856 4000 120° Opal Ø215 Datasheet
