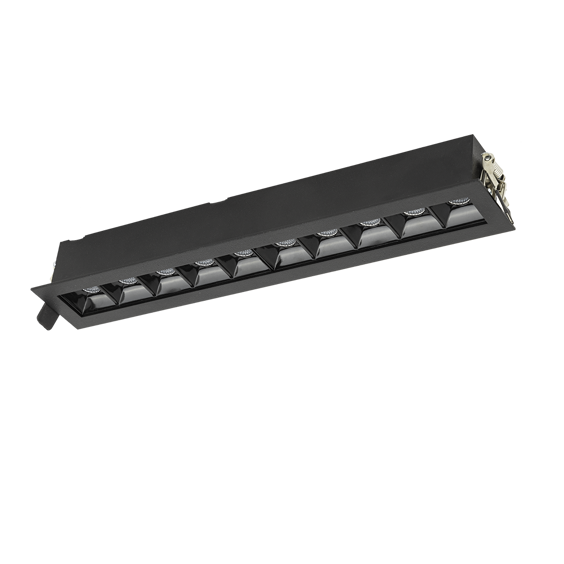

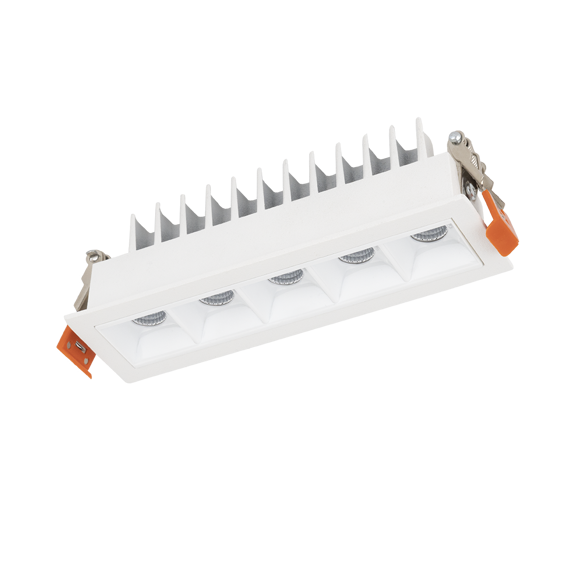

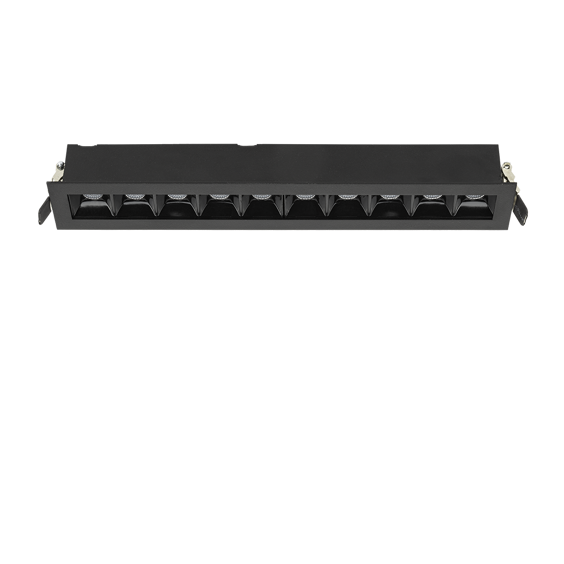

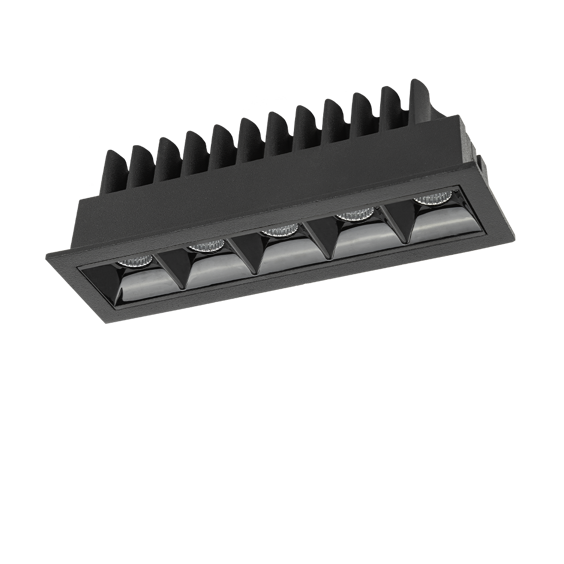

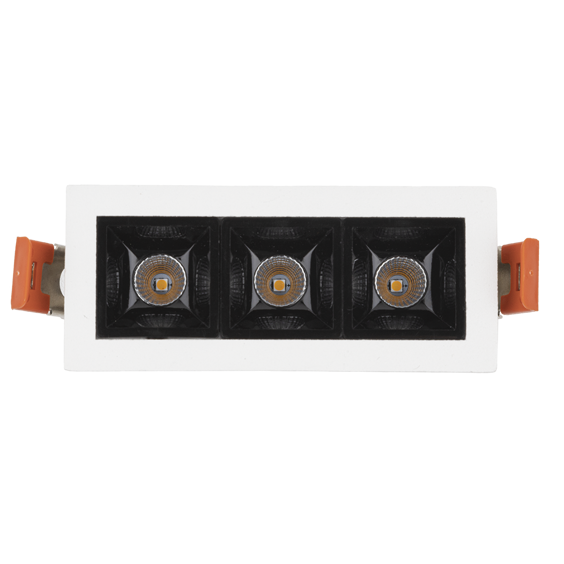

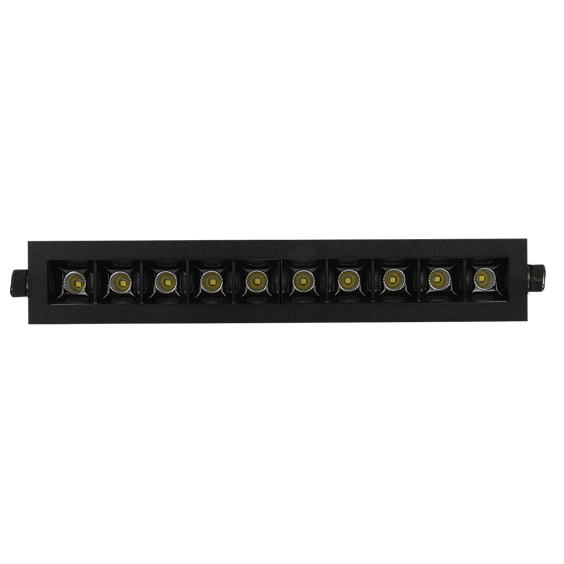

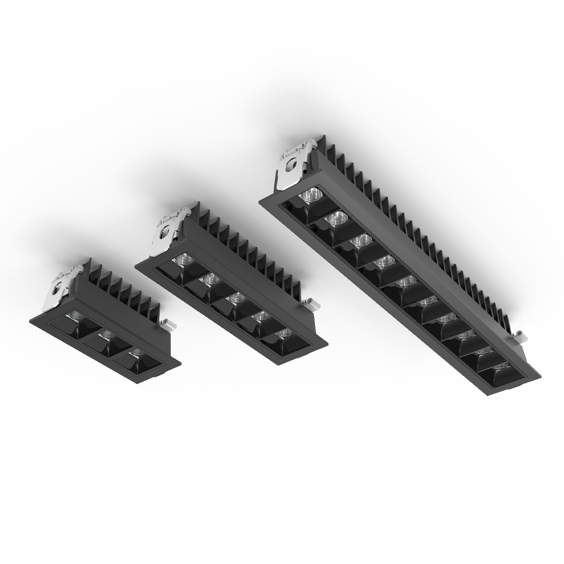

Flus Recessed Render 1080X1080Flus10'lu 3 1080X1080Flus 10 1080X1080 2Flus 10 1080X1080Flus 5 BB 1080X1080Flus 3 SB 1080X1080 2Flus 3 SS 1080X1080 2Flus 5 BB 1080X1080 2Flus 3 SS 1080X1080Flus10'lu 2 1080X1080Flus 3 SS 1080X1080 3Flus 3 SB 1080X1080Flus 5 SS 1080X1080 3Flus 5 SS 1080X1080 1Flus 5 SS 1080X1080 2Flus10'lu 1 1080X1080

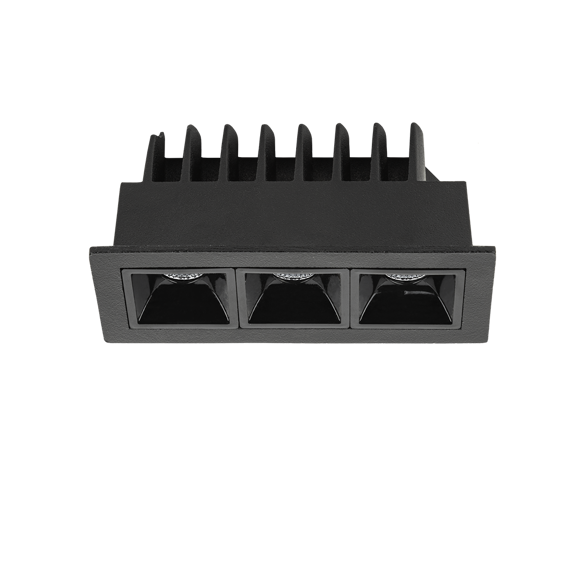

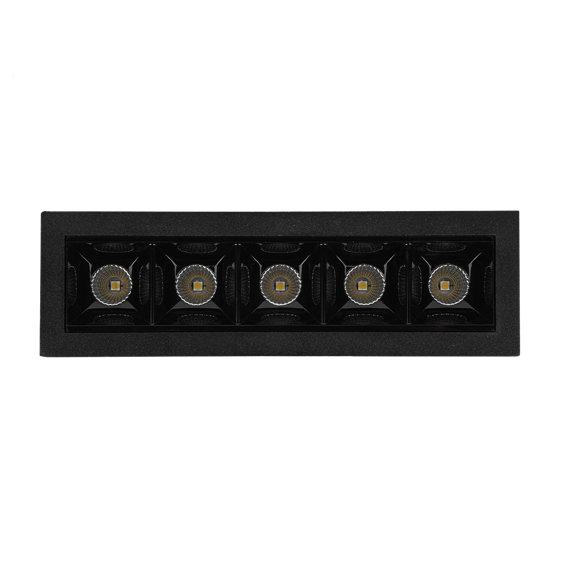

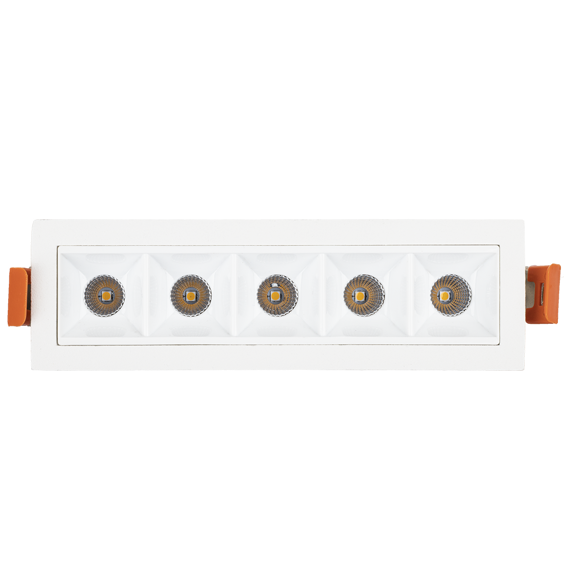

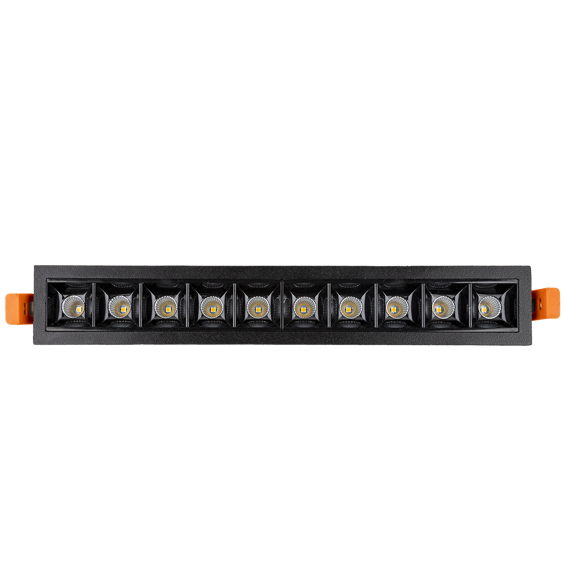

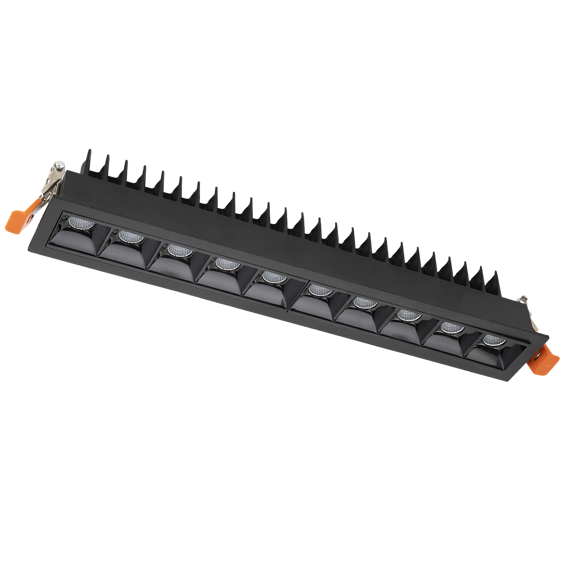

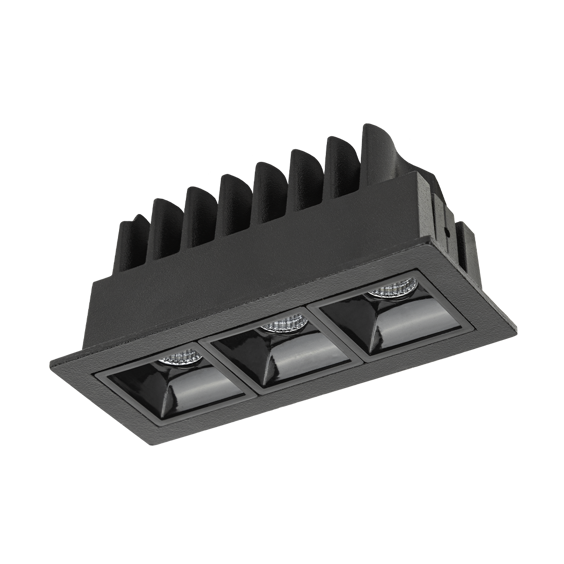

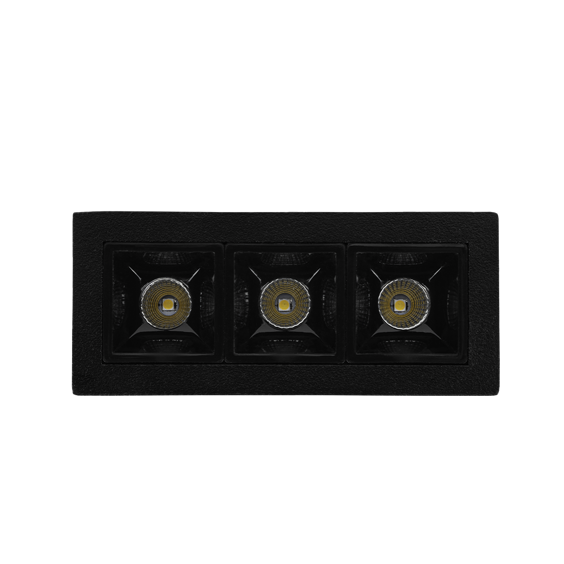

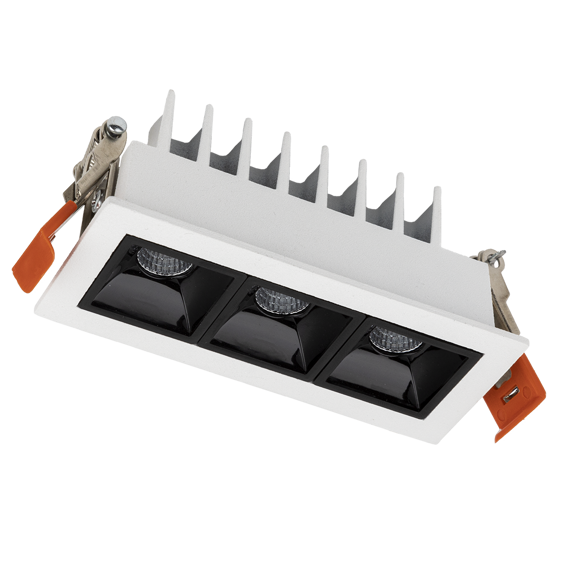

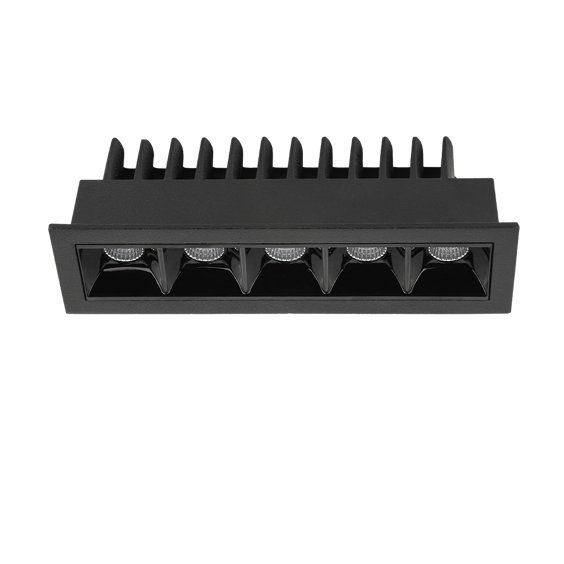

Flus Recessed Series

Recessed Downlight & Spot Luminary

Optics
34° 48° Reflector

Luminous Flux
240 lm / 400 lm / 800 lm

Consumption Power
10 W / 3 W / 5 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 100KLED life
Colour Options
RAL 9005
RAL 9016
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9016
  • Housing Aluminum Extrusion
  • Optics 34° 48° Reflector
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 240 lm / 400 lm / 800 lm
  • Consumption Power 10 W / 3 W / 5 W
  • Luminaire Efficiency 80 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

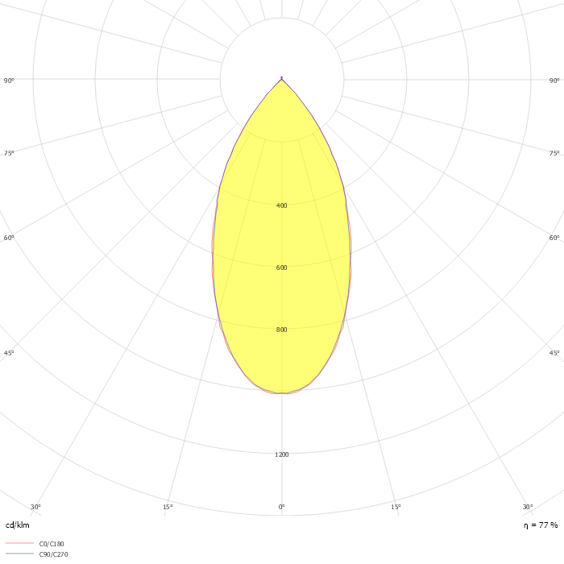

Optics
35º50º
Previous
Previous
Dimensions
Flus ÜçlüFlus BeşliFlus Onlu
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
FLS 010 004 003A 8040 10 34 DY 20 00 3 240 4000 34° Reflector 104x45x47 Datasheet
FLS 010 004 003A 8040 10 48 DY 20 00 3 240 4000 48° Reflector 104x45x47 Datasheet
FLS 014 004 005A 8040 10 34 DY 20 00 5 400 4000 34° Reflector 149x45x47 Datasheet
FLS 014 004 005A 8040 10 48 DY 20 00 5 400 4000 48° Reflector 149x45x47 Datasheet
FLS 028 004 010A 8040 10 34 DY 20 00 10 800 4000 34° Reflector 280x45x47 Datasheet
FLS 028 004 010A 8040 10 48 DY 20 00 10 800 4000 48° Reflector 280x45x47 Datasheet
Download
