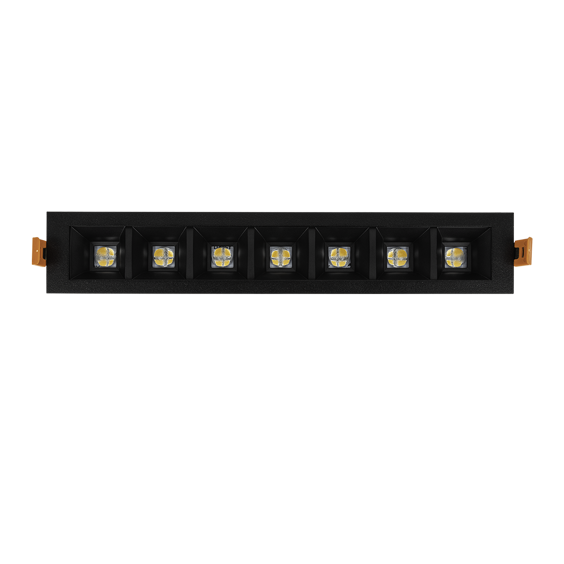

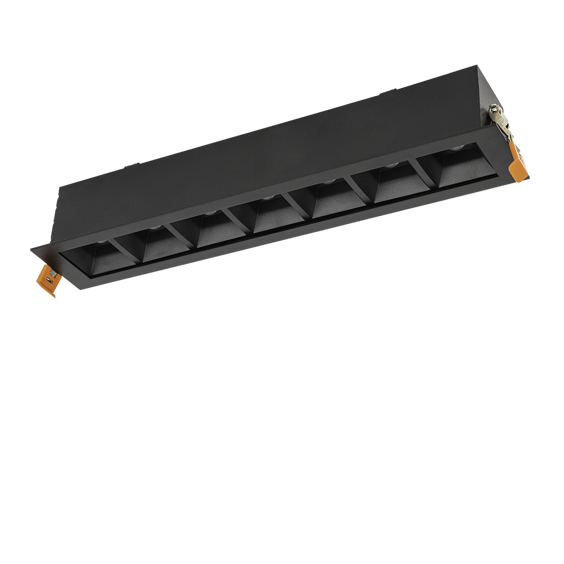

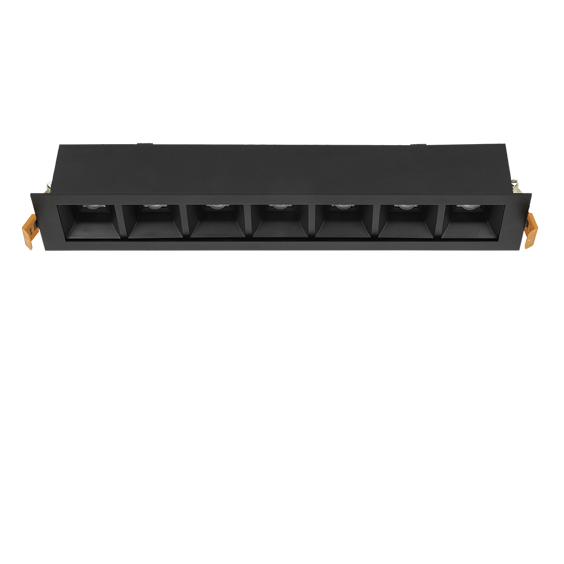

Sharp R

Recessed Downlight & Spot Luminary

Optics
With 50° Lens

Luminous Flux
1890 lm

Consumption Power
21 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 100KLED life
Colour Options
RAL 9010
RAL 9005
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9010 - RAL 9005 - RAL 9006
  • Housing DKP Sheet
  • Optics With 50° Lens
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 1890 lm
  • Consumption Power 21 W
  • Luminaire Efficiency 90 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

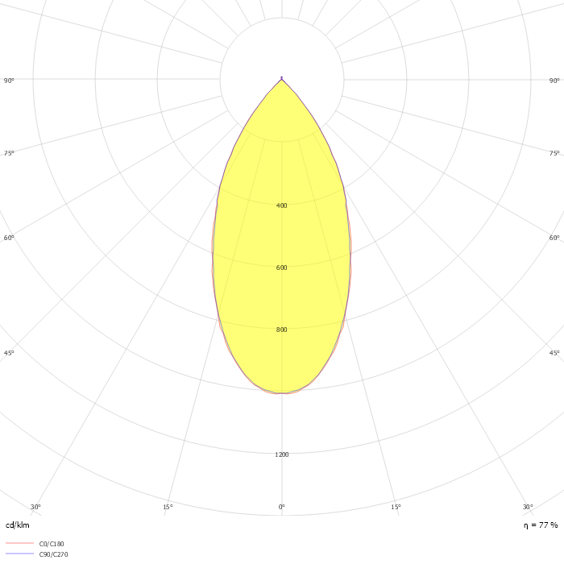

Optics
50º
Dimensions
Sharp R (1)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
13503876 SHP 030 005 021A 8040 10 50 LN 40 00 21 1890 4000 50° Lens 305x48,5 Datasheet
