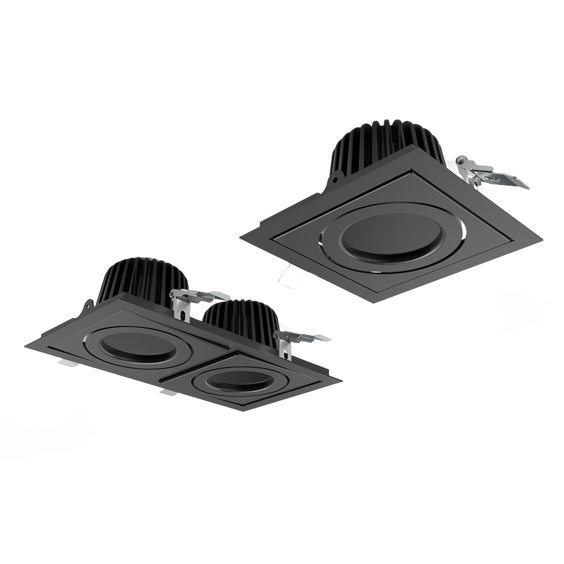

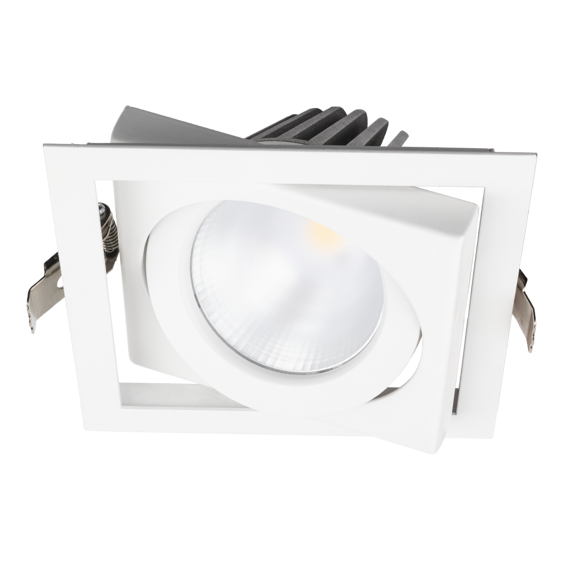

Parent I & II
Recessed Downlight & Spot Luminary
Optics
15° 30° 40° Reflector & Transparent Diffuser
Luminous Flux
2340 lm / 3380 lm / 4500 lm / 4680 lm / 6760 lm / 8580 lm
Consumption Power
18 W / 26 W / 33 W / 36 W / 52 W / 66 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
50K
Colour Options
RAL 9010
RAL 9005
RAL 9006
Product Features
- Luminaire Group Downlight & Spot
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9005 - RAL 9006
- Housing DKP Sheet
- Optics 15° 30° 40° Reflector & Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 2340 lm / 3380 lm / 4500 lm / 4680 lm / 6760 lm / 8580 lm
- Consumption Power 18 W / 26 W / 33 W / 36 W / 52 W / 66 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >50.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

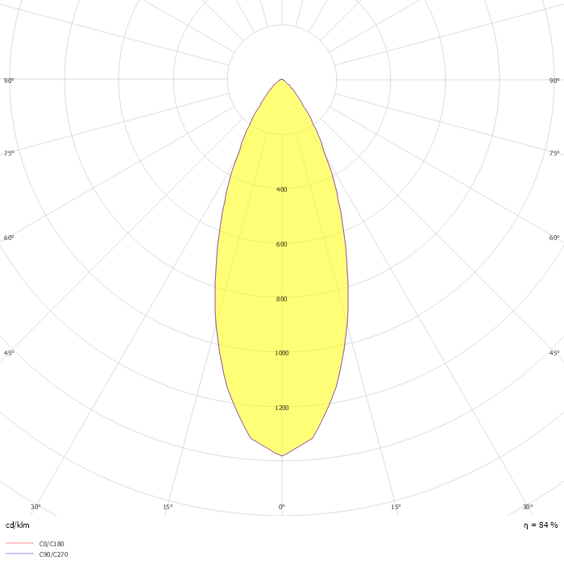

Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 13503938 | PRT 015 015 018A 8040 10 30 CA 20 00 | 18 | 2340 | 4000 | 30° Reflector | 155x155x83,5 |
|
| 13503573 | PRT 015 015 026A 8040 10 30 CA 20 00 | 26 | 3380 | 4000 | 30° Reflector | 155x155x83,5 |
|
| PRT 015 015 033A 8040 10 30 CA 20 00 | 33 | 4500 | 4000 | 30° Reflector | 155x155x83,5 |
|
|
| PRT 028 015 036A 8030 10 30 CA 20 00 | 36 | 4680 | 4000 | 30° Reflector | 288x155x83,5 |
|
|
| PRT 028 015 052A 8030 10 30 CA 20 00 | 52 | 6760 | 4000 | 30° Reflector | 288x155x83,5 |
|
|
| PRT 028 015 066A 8030 10 30 CA 20 00 | 66 | 8580 | 4000 | 30° Reflector | 288x155x83,5 |
|
Download
