Squarelevel 1080X1080

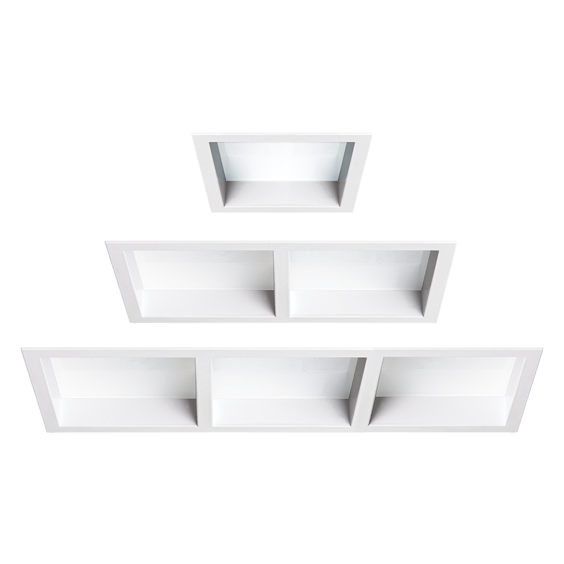

Square Level

Recessed Downlight & Spot Luminary

Optics
Opal Diffuser

Luminous Flux
1620 lm / 2430 lm / 810 lm

Consumption Power
18 W / 27 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 20 IK 02 70K LED life

LED life

Colour Options

RAL 9005

RAL 9010

RAL 9006

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9010 - RAL 9006
Housing Aluminum DKP Sheet
Optics Opal Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 20
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 1620 lm / 2430 lm / 810 lm
Consumption Power 18 W / 27 W / 9 W
Luminaire Efficiency 90 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

Optics

110º

Dimensions

Square Level Tekli (1)

Square Level Üçlü (1)

Square Level İkili (1)

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
13503105	SQL 012 009 009A 8040 10 99 OP 20 00	9	810	4000	120° Diffuser	120x120x92
13503129	SQL 021 009 018A 8040 10 99 OP 20 00	18	1620	4000	120° Diffuser	210x120x92
13503153	SQL 027 009 027A 8040 10 99 OP 20 00	27	2430	4000	120° Diffuser	300x120x92
