Rainbow

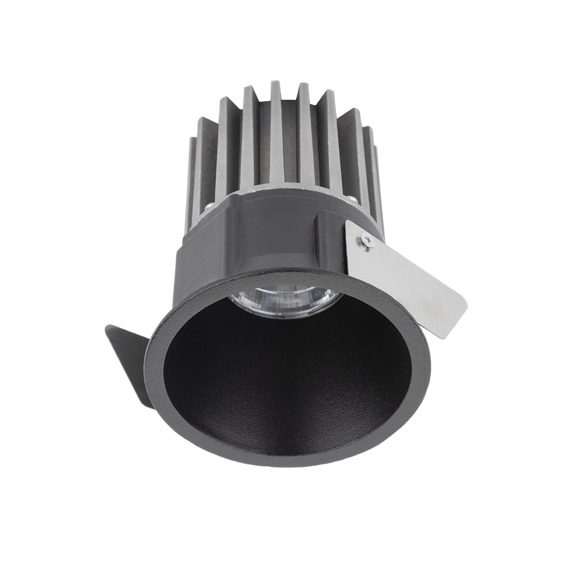

Recessed Downlight & Spot Luminary
Optics
15° 30° 40° Reflector & Transparent Diffuser
Luminous Flux
1365 lm / 686 lm / 950 lm
Consumption Power
13 W / 7 W / 9 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 44
IK 02
100K
Colour Options
RAL 9010
RAL 9005
Product Features
- Luminaire Group Downlight & Spot
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9005
- Housing Aluminum Extrusion
- Optics 15° 30° 40° Reflector & Transparent Diffuser
- Electrical Protection Class CLASS II
- IP 44
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1365 lm / 686 lm / 950 lm
- Consumption Power 13 W / 7 W / 9 W
- Luminaire Efficiency 90 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 13001087 | RNB 008 009 007A 8040 10 15 SD 44 00 | 7 | 686 | 4000 | 15° Reflector | Ø81x95 |
|
| 13001105 | RNB 008 009 007A 8040 10 30 SD 44 00 | 7 | 686 | 4000 | 30° Reflector | Ø81x95 |
|
| 13001123 | RNB 008 009 007A 8040 10 40 SD 44 00 | 7 | 686 | 4000 | 40° Reflector | Ø81x95 |
|
| 13001141 | RNB 008 009 009A 8040 10 15 SD 44 00 | 9 | 950 | 4000 | 15° Reflector | Ø81x95 |
|
| 13001159 | RNB 008 009 009A 8040 10 30 SD 44 00 | 9 | 950 | 4000 | 30° Reflector | Ø81x95 |
|
| 13001177 | RNB 008 009 009A 8040 10 40 SD 44 00 | 9 | 950 | 4000 | 40° Reflector | Ø81x95 |
|
| 13001195 | RNB 008 009 013A 8040 10 15 SD 44 00 | 13 | 1365 | 4000 | 15° Reflector | Ø81x95 |
|
| 13001213 | RNB 008 009 013A 8040 10 30 SD 44 00 | 13 | 1365 | 4000 | 30° Reflector | Ø81x95 |
|
| 13001231 | RNB 008 009 013A 8040 10 40 SD 44 00 | 13 | 1365 | 4000 | 40° Reflector | Ø81x95 |
|
Download

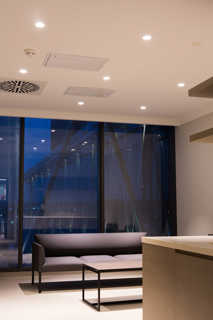

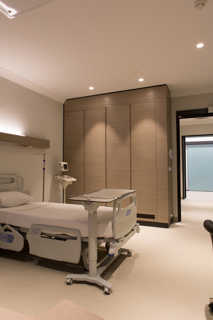

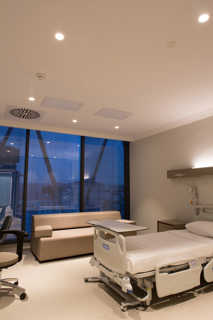

Product Applications
