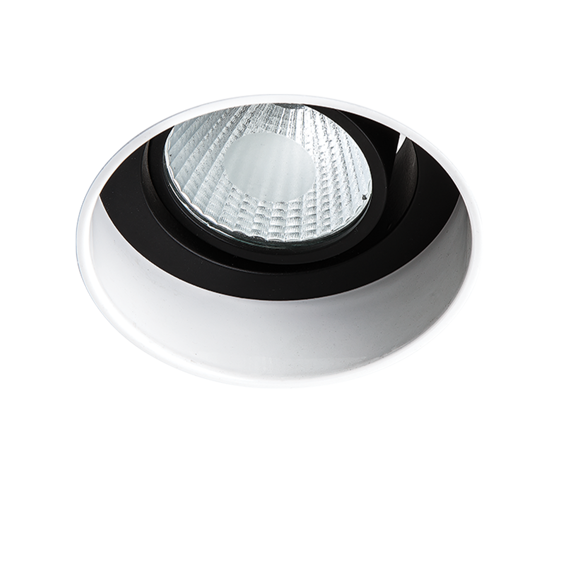

Pure L 1080X1080

Pure L

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector

Luminous Flux
3380 lm / 4500 lm

Consumption Power
26 W / 33 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 44 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9010
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9010 - RAL 9006
  • Housing Aluminum Injection
  • Optics 15° 30° 40° Reflector
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 44
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 3380 lm / 4500 lm
  • Consumption Power 26 W / 33 W
  • Luminaire Efficiency 90 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

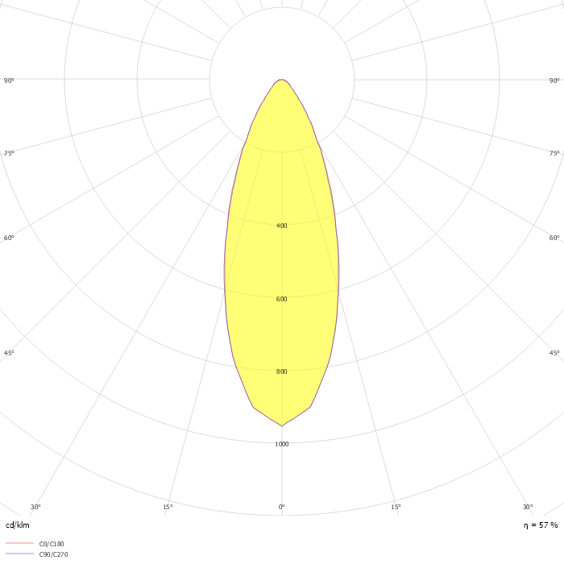

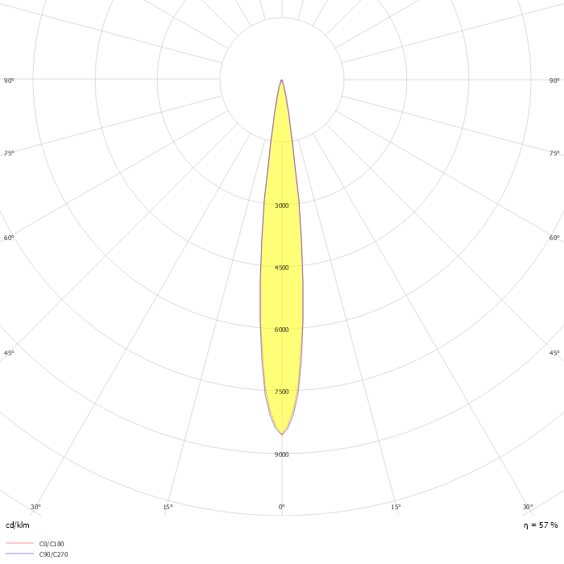

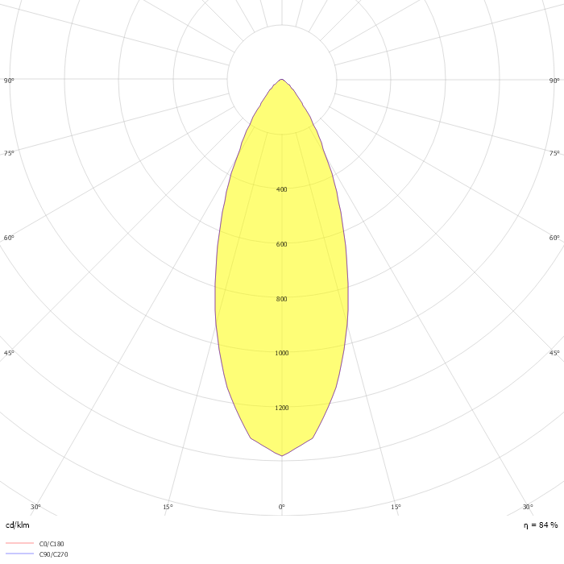

Optics
14º30º40º
Previous
Previous
Dimensions
Pure L (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
PUR 013 011 026T 8040 10 15 SD 40 00 26 3380 4000 15° Reflector Ø155x148 Datasheet
PUR 013 011 026T 8040 10 30 SD 40 00 26 3380 4000 30° Reflector Ø155x148 Datasheet
PUR 013 011 026T 8040 10 40 SD 40 00 26 3380 4000 40° Reflector Ø155x148 Datasheet
PUR 013 011 033T 8040 10 15 SD 40 00 33 4500 4000 15° Reflector Ø155x148 Datasheet
PUR 013 011 033T 8040 10 30 SD 40 00 33 4500 4000 30° Reflector Ø155x148 Datasheet
PUR 013 011 033T 8040 10 40 SD 40 00 33 4500 4000 40° Reflector Ø155x148 Datasheet
Download
