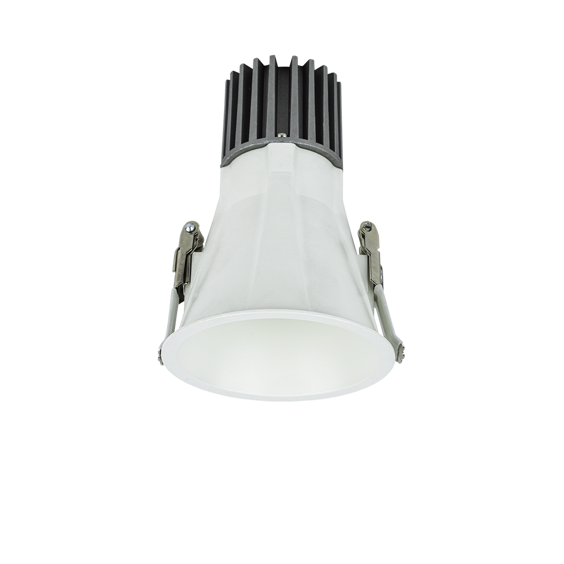

Rainbow Deep
Recessed Downlight & Spot Luminary
Optics
15° 30° 40° Reflector & Transparent Diffuser
Luminous Flux
511 lm / 657 lm / 949 lm
Consumption Power
13 W / 7 W / 9 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 44
IK 03
102K
Colour Options
RAL 9010
RAL 9005
RAL 9006
RAL 9016
Product Features
- Luminaire Group Downlight & Spot
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9005 - RAL 9006 - RAL 9016
- Housing Aluminum Extrusion
- Optics 15° 30° 40° Reflector & Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 44
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 511 lm / 657 lm / 949 lm
- Consumption Power 13 W / 7 W / 9 W
- Luminaire Efficiency 73 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >102.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| RNB 010 015 007A 9040 10 15 SD 44 DP | 7 | 511 | 4000 | 15° Reflector | Ø110 |
|
| RNB 010 015 009A 9040 10 15 SD 44 DP | 9 | 657 | 4000 | 15° Reflector | Ø110 |
|
| RNB 010 015 013A 9040 10 15 SD 44 DP | 13 | 949 | 4000 | 15° Reflector | Ø110 |
|
| RNB 010 015 007A 9040 10 30 SD 44 DP | 7 | 511 | 4000 | 30° Reflector | Ø110 |
|
| RNB 010 015 009A 9040 10 30 SD 44 DP (1) | 9 | 657 | 4000 | 30° Reflector | Ø110 |
|
| RNB 010 015 013A 9040 10 30 SD 44 DP | 13 | 949 | 4000 | 30° Reflector | Ø110 |
|
| RNB 010 015 007A 9040 10 40 SD 44 DP | 7 | 657 | 4000 | 40° Reflector | Ø110 |
|
| RNB 010 015 009A 9040 10 40 SD 44 DP | 9 | 657 | 4000 | 40° Reflector | Ø110 |
|
| RNB 010 015 013A 9040 10 40 SD 44 DP | 13 | 949 | 4000 | 40° Reflector | Ø110 |
|
