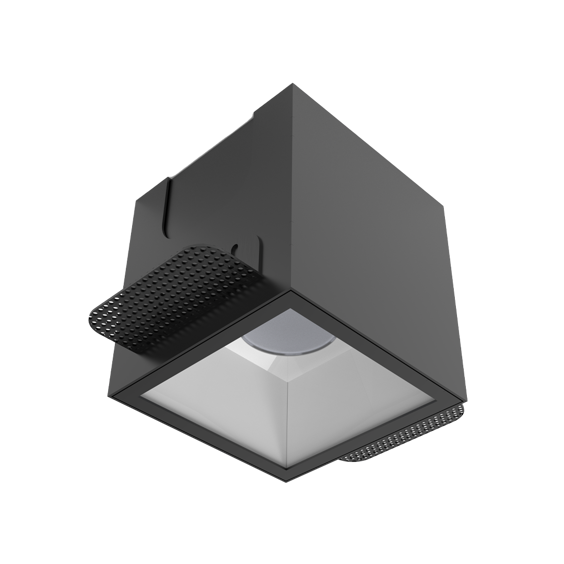

Ozzo Trimless. 1080X1080

Ozzo Trimless

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector & Opal Diffuser

Luminous Flux
1170 lm / 630 lm / 890 lm

Consumption Power
13 W / 7 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 44 IK 02 70K LED life

LED life

Colour Options

RAL 9005

RAL 9006

RAL 9010

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9006 - RAL 9010
Housing DKP Sheet
Optics 15° 30° 40° Reflector & Opal Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 44
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 1170 lm / 630 lm / 890 lm
Consumption Power 13 W / 7 W / 9 W
Luminaire Efficiency 90 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

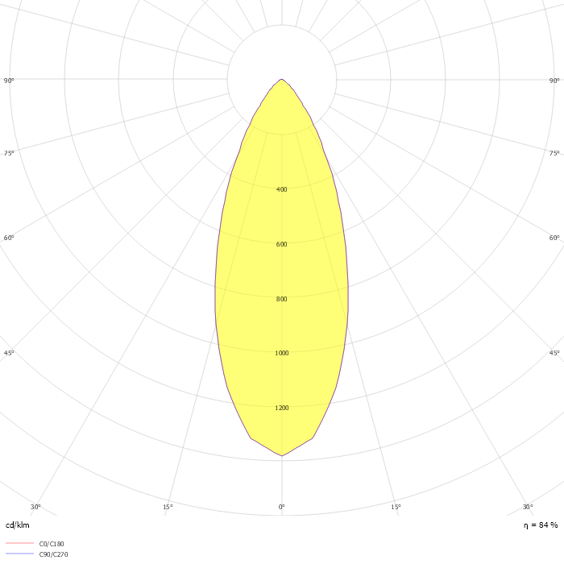

Optics

Dimensions

Ozzo Trimless (1)

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
13500013	OZZ 009 009 007T 8040 10 15 SD 40 00	7	630	4000	15° Reflector	93x93x98
13500031	OZZ 009 009 007T 8040 10 30 SD 40 00	7	630	4000	30° Reflector	93x93x98
13500049	OZZ 009 009 007T 8040 10 40 SD 40 00	7	630	4000	40° Reflector	93x93x98
13500067	OZZ 009 009 009T 8040 10 15 SD 40 00	9	890	4000	15° Reflector	93x93x98
13500085	OZZ 009 009 009T 8040 10 30 SD 40 00	9	890	4000	30° Reflector	93x93x98
13500103	OZZ 009 009 009T 8040 10 40 SD 40 00	9	890	4000	40° Reflector	93x93x98
13500121	OZZ 009 009 013T 8040 10 15 SD 40 00	13	1170	4000	15° Reflector	93x93x98
13500139	OZZ 009 009 013T 8040 10 30 SD 40 00	13	1170	4000	30° Reflector	93x93x98
13500157	OZZ 009 009 013T 8040 10 40 SD 40 00	13	1170	4000	40° Reflector	93x93x98

Download

Create fact sheet (pdf)
