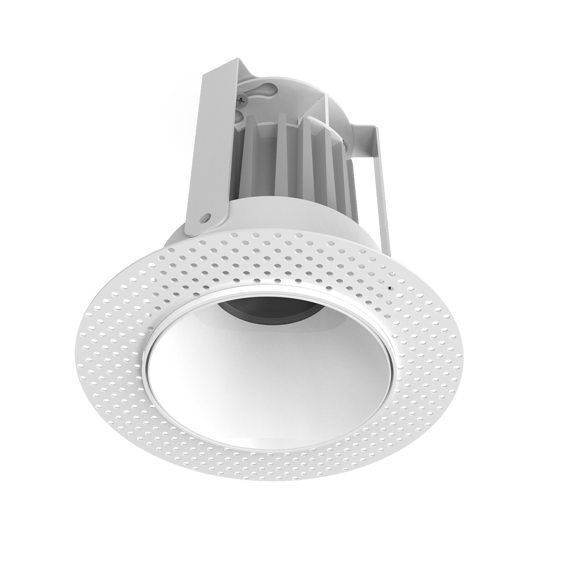

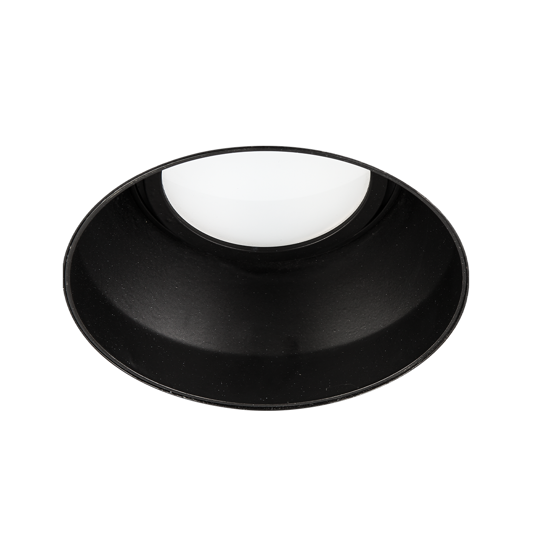

Space Mini

Recessed Downlight & Spot Luminary

Optics
Opal Diffuser

Luminous Flux
609 lm

Consumption Power
7 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

220V 240V IP 40 IK 02 70K LED life

Colour Options

RAL 9005

RAL 9010

RAL 9006

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9010 - RAL 9006
Housing Aluminum DKP Sheet
Optics Opal Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 02
Operating Temperature -20°C / +40°C
Luminous Flux 609 lm
Consumption Power 7 W
Luminaire Efficiency 87 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

Optics

Dimensions

Product Variations

SKU	Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
13000229	SPC 007 013 007T 8027 10 99 OP 40 00	7	609	4000	120° Diffuser	76,5x131,5

Download

Create fact sheet (pdf)

Related Products

Budapeşte Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Budapeşte A Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Rainbow Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Sole Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Recta Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Sole Mandarin Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Sturdy S Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Sturdy M Downlight & Spot Recessed RAL 9010/RAL 9005
2700K/3000K/4000K/6500K

Wina S HR Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

Wina S TH Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

Wina S TS Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

Wina M Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

Helix Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

Parent I & II Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

Rainbow Deep Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006/RAL 9016
2700K/3000K/4000K/6500K

Sharp R Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

Solid Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

Solid Level Downlight & Spot Recessed RAL 9010/RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

Eye M Downlight & Spot Recessed RAL 9005/RAL 9006
2700K/3000K/4000K/6500K

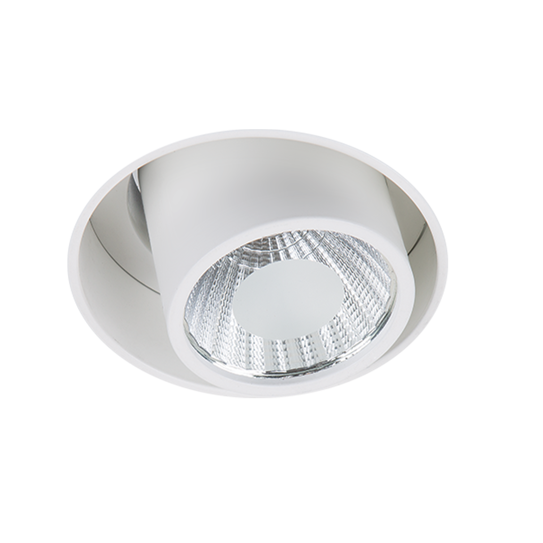

Beetle Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Flus Recessed Series Downlight & Spot Recessed RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

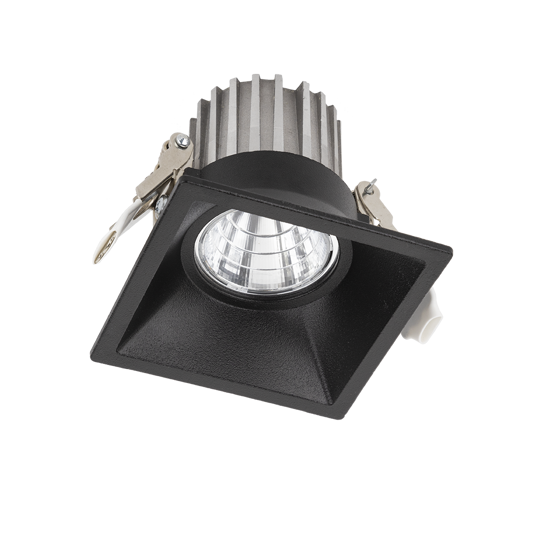

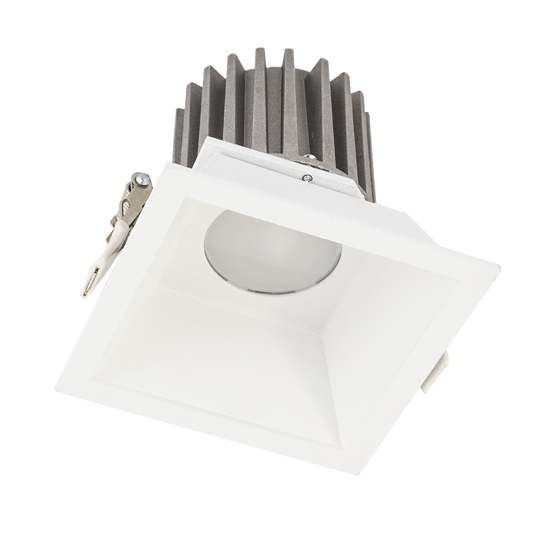

Motus S Downlight & Spot Recessed RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

Motus M Downlight & Spot Recessed RAL 9005/RAL 9016/RAL 9006
2700K/3000K/4000K/6500K

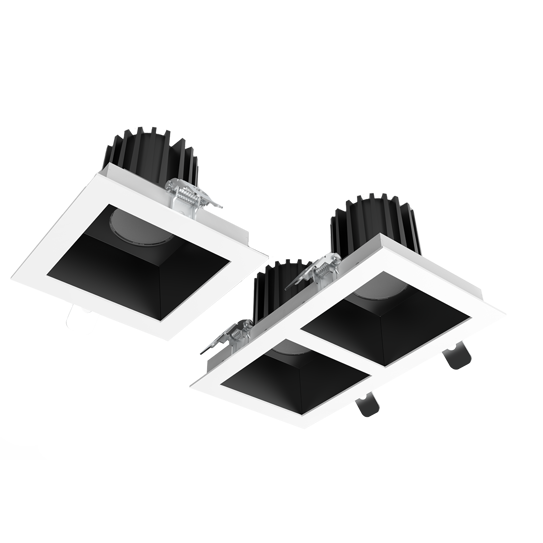

Oblong I Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Oblong II Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

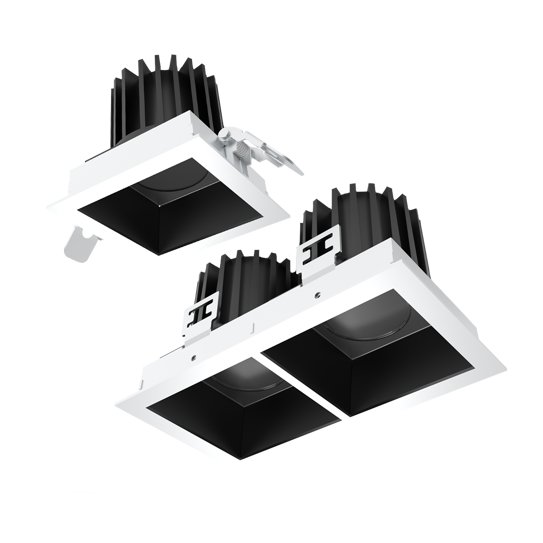

Oblong Mini I Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

Oblong Mini II Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

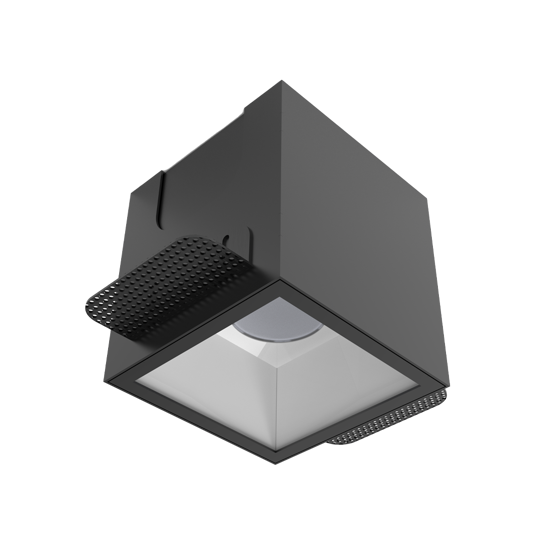

Ozzo Trimless Downlight & Spot Recessed RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

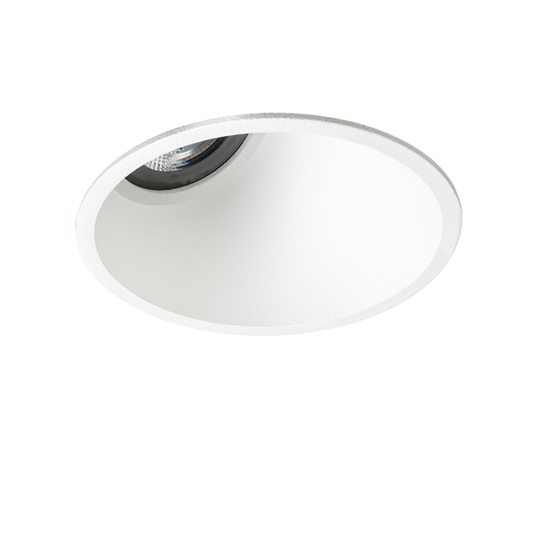

Pain Downlight & Spot Recessed RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

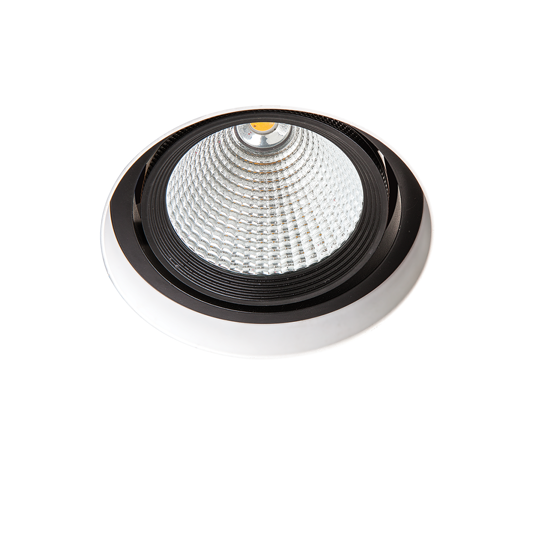

Pure M Downlight & Spot Recessed RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

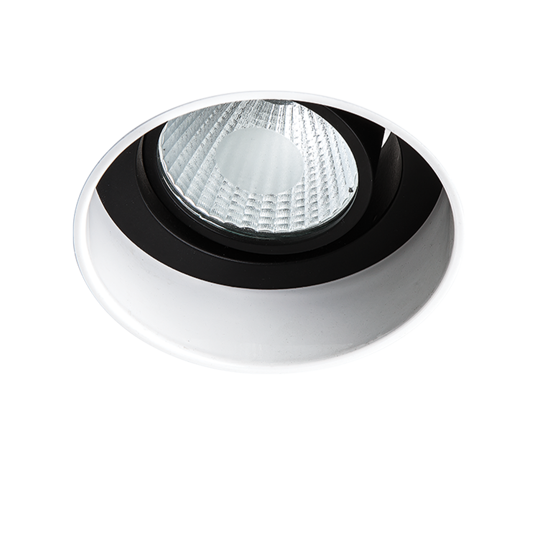

Pure L Downlight & Spot Recessed RAL 9005/RAL 9010/RAL 9006
