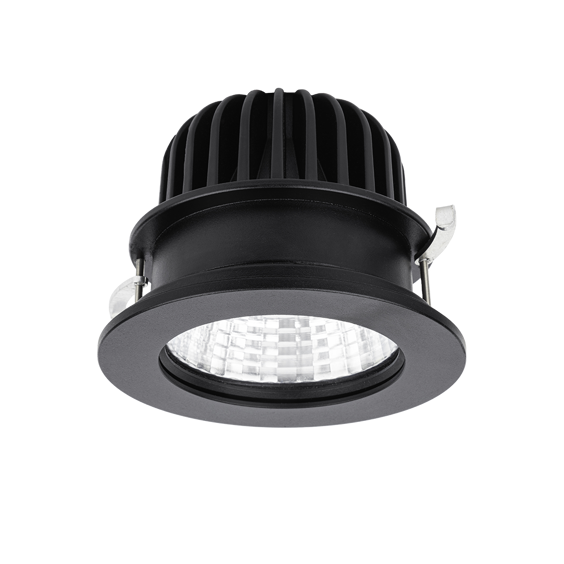

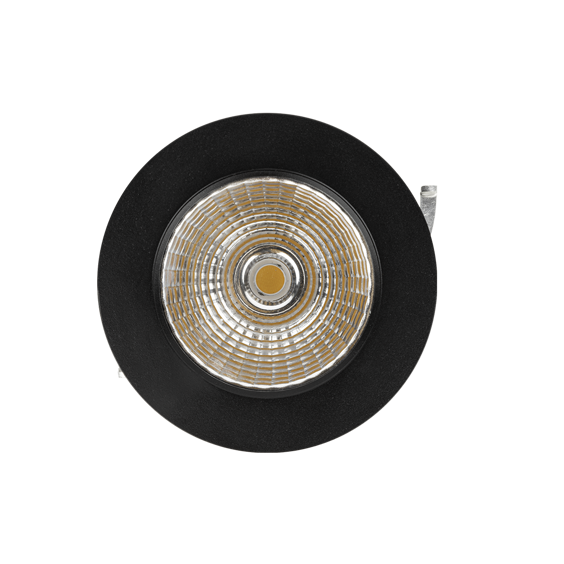

Sturdy M
Recessed Downlight & Spot Luminary
Optics
30° Reflector
Luminous Flux
1440 lm / 2080 lm
Consumption Power
18 W / 26 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 02
100K
Colour Options
RAL 9010
RAL 9005
Product Features
- Luminaire Group Downlight & Spot
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9005
- Housing Aluminum Injection
- Optics 30° Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1440 lm / 2080 lm
- Consumption Power 18 W / 26 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

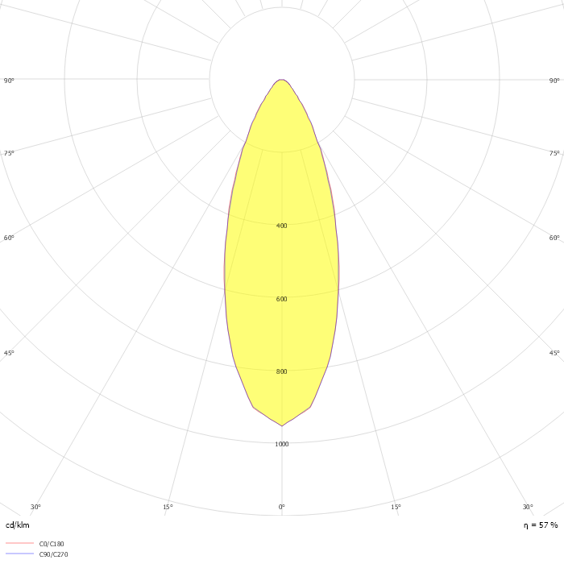

Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 13002437 | STR 016 011 018A 8040 10 30 SD 65 00 | 18 | 1440 | 4000 | 30° Reflector | Ø160x120 |
|
| 13002455 | STR 016 011 026A 8040 10 30 SD 65 00 | 26 | 2080 | 4000 | 30° Reflector | Ø160x120 |
|
Download
