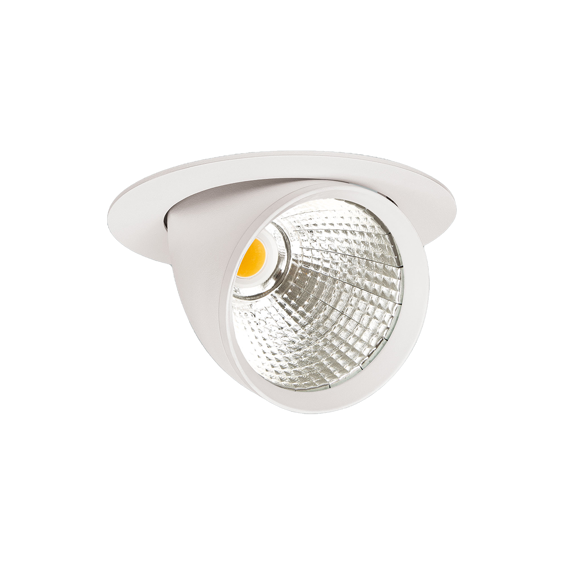

Helix

Recessed Downlight & Spot Luminary

Optics
15° 30° 40° Reflector

Luminous Flux
3380 lm / 4500 lm

Consumption Power
26 W / 33 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 100KLED life
Colour Options
RAL 9010
RAL 9005
RAL 9006
Product Features
  • Luminaire Group Downlight & Spot
  • Mounting Type Recessed
  • Luminary Color RAL 9010 - RAL 9005 - RAL 9006
  • Housing Aluminum Injection
  • Optics 15° 30° 40° Reflector
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 3380 lm / 4500 lm
  • Consumption Power 26 W / 33 W
  • Luminaire Efficiency 130 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

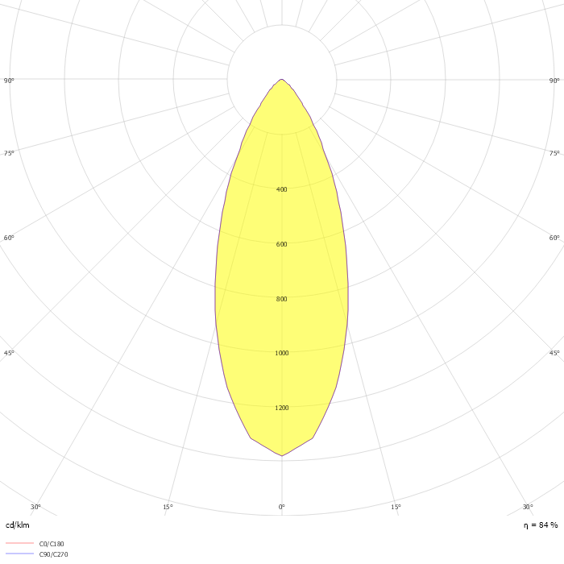

Optics
14º30º40º
Previous
Previous
Dimensions
Helix Teknik (1)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
13002525 HLX 019 013 026A 8040 10 30 SD 20 00 26 3380 4000 30° Reflector Ø164x128 Datasheet
13002543 HLX 019 013 033A 8040 10 30 SD 20 00 33 4500 4000 30° Reflector Ø164x128 Datasheet
Download

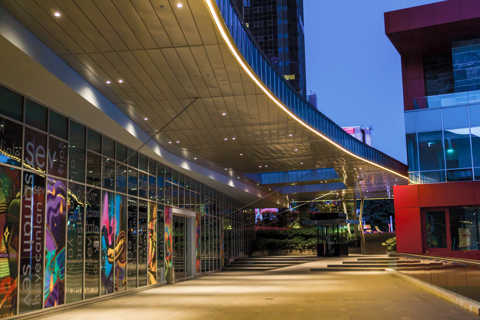

Product Applications
IP65 3209IP65 3217
