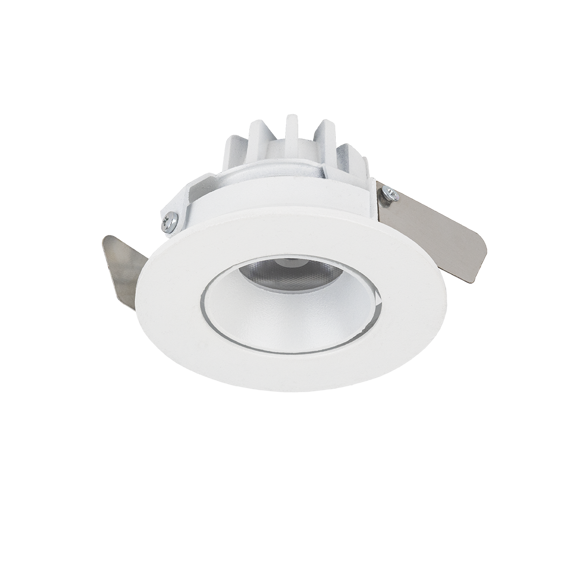

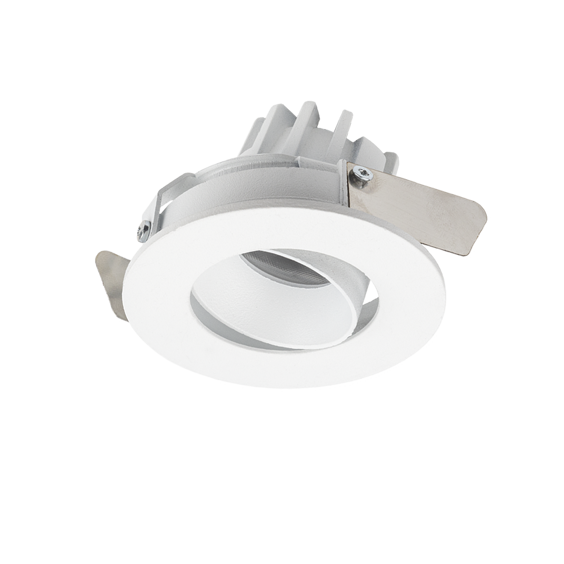

Wina S HR
Recessed Downlight & Spot Luminary
Optics
15° 24° 36° Reflector and Transparent Diffuser
Luminous Flux
800 lm
Consumption Power
8 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 44
IK 02
100K
Colour Options
RAL 9005
RAL 9016
Product Features
- Luminaire Group Downlight & Spot
- Mounting Type Recessed
- Luminary Color RAL 9005 - RAL 9016
- Housing Aluminum Extrusion
- Optics 15° 24° 36° Reflector and Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 44
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 800 lm
- Consumption Power 8 W
- Luminaire Efficiency 100 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

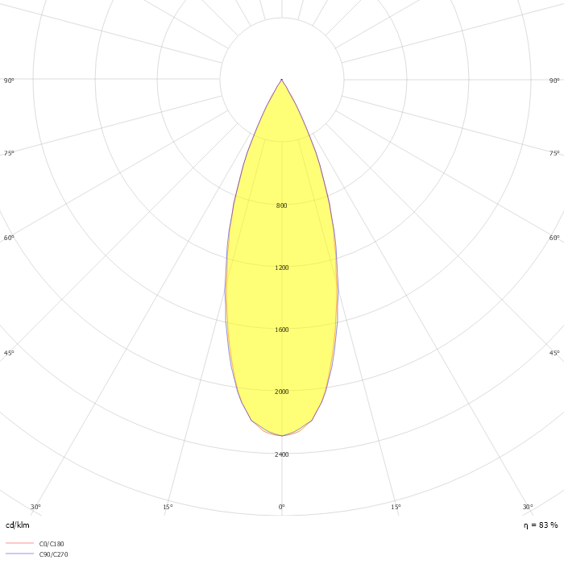

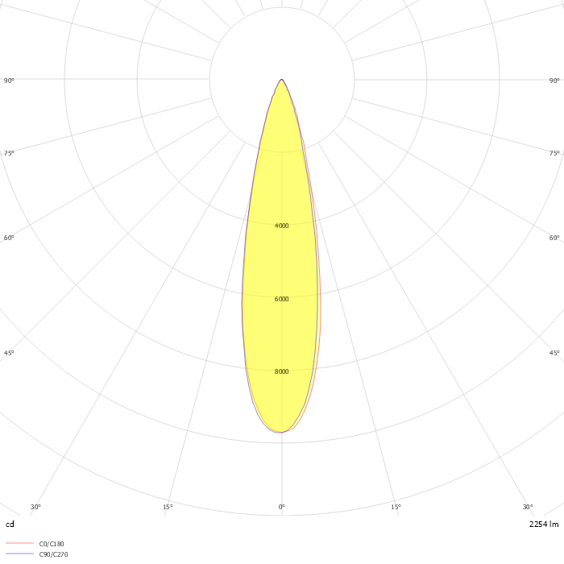

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| WIN 008 005 008A 8040 10 15 LN 44 HR | 8 | 800 | 4000 | 15° Reflector | Ø83 |
|
| WIN 008 005 008A 8040 10 24 LN 44 HR | 8 | 800 | 4000 | 24° Reflector | Ø83 |
|
| WIN 008 005 008A 8040 10 36 LN 44 HR | 8 | 800 | 4000 | 36° Reflektör | Ø83 |
|
Download
