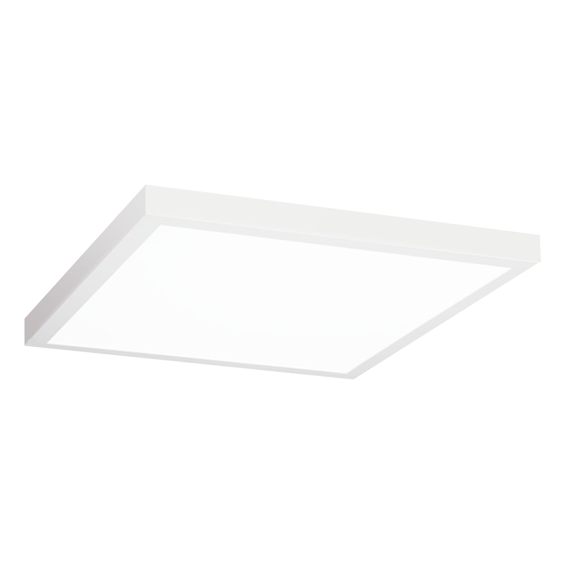

Panlite

Panlite

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux
4560 lm

Consumption Power
38 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9003
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9003
  • Housing DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 4560 lm
  • Consumption Power 38 W
  • Luminaire Efficiency 125 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

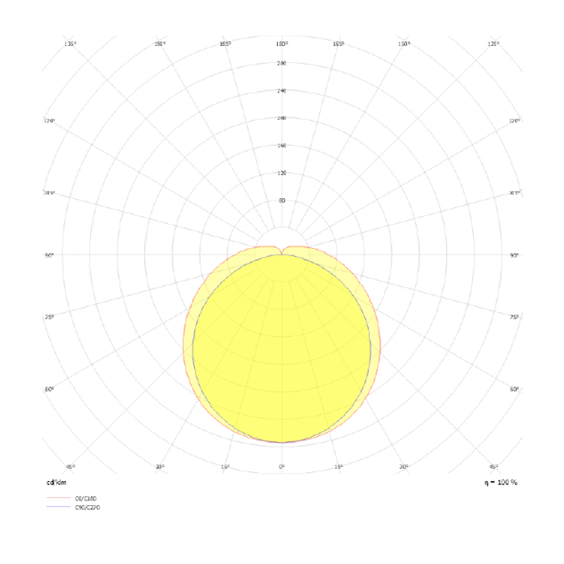

Optics
Panlite ısık Egrisi
Dimensions
Panlite Teknik
Product Variations
Product Code Power (W) Luminous Flux (LM) CRI CCT (K) Optics Dimensions (mm) Datasheet LDT
PNL 060 060 038S 8040 10 99 OP 40 00 38 4560 >80 4000 120° Opal Diffuser 600x600 Datasheet LDT
Download
