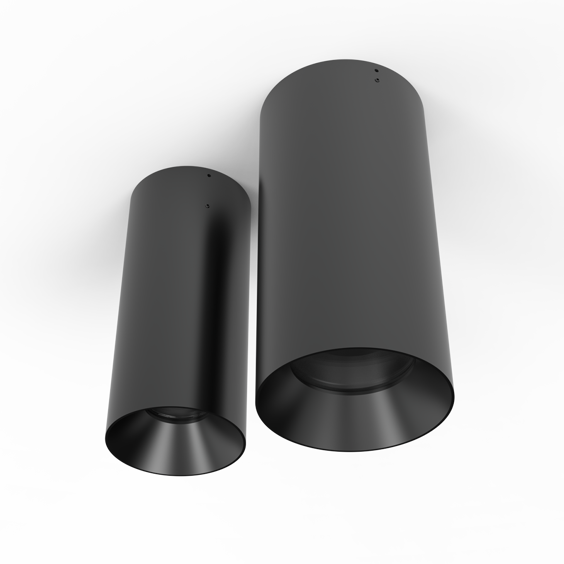

Dif M
Surface Mounted Luminary
Optics
15° 30° 40° Reflector & Transparent Diffuser
Luminous Flux
1183 lm / 1638 lm / 819 lm
Consumption Power
13 W / 18 W / 9 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 03
100K
Colour Options
RAL 9006
RAL 9005
RAL 9010
RAL 9016
Product Features
- Luminaire Group Surface Mounted
- Mounting Type Surface Mounted
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010 - RAL 9016
- Housing Aluminum Extrusion
- Optics 15° 30° 40° Reflector & Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 1183 lm / 1638 lm / 819 lm
- Consumption Power 13 W / 18 W / 9 W
- Luminaire Efficiency 91 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

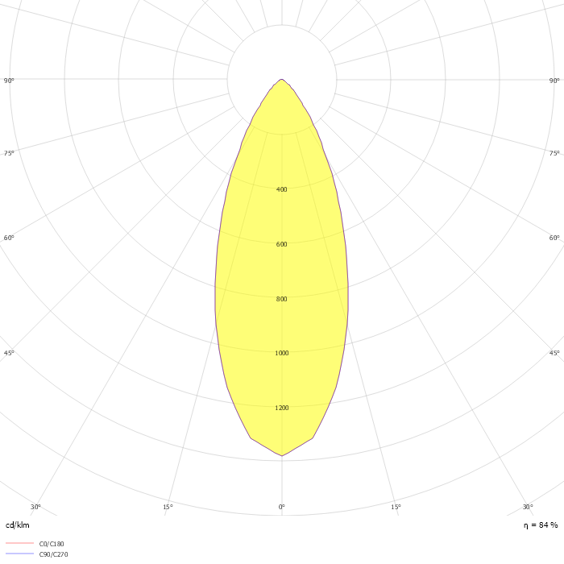

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| DIF 010 020 009S 8040 10 15 SD 65 00 | 9 | 819 | 4000 | 15° Reflector | Ø97x200 |
|
| DIF 010 020 009S 8040 10 30 SD 65 03 | 9 | 819 | 4000 | 30° Reflector | Ø97x200 |
|
| DIF 010 020 009S 8040 10 40 SD 65 06 | 9 | 819 | 4000 | 40° Reflector | Ø97x200 |
|
| DIF 010 020 013S 8040 10 15 SD 65 01 | 13 | 1183 | 4000 | 15° Reflector | Ø97x200 |
|
| DIF 010 020 013S 8040 10 30 SD 65 04 | 13 | 1183 | 4000 | 30° Reflector | Ø97x200 |
|
| DIF 010 020 013S 8040 10 40 SD 65 07 | 13 | 1183 | 4000 | 40° Reflector | Ø97x200 |
|
| DIF 010 020 018S 8040 10 15 SD 65 02 | 18 | 1638 | 4000 | 15° Reflector | Ø97x200 |
|
| DIF 010 020 018S 8040 10 30 SD 65 05 | 18 | 1638 | 4000 | 30° Reflector | Ø97x200 |
|
| DIF 010 020 018S 8040 10 40 SD 65 08 | 18 | 1638 | 4000 | 40° Reflector | Ø97x200 |
|
