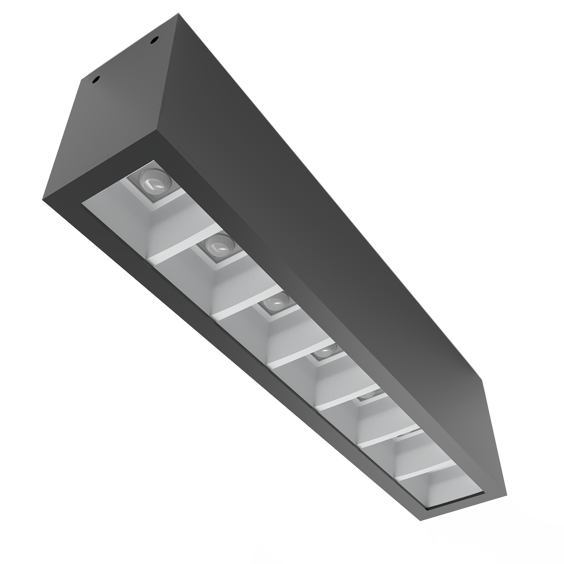

Sharp 1080X1080

Sharp Surface mounted

Surface Mounted Luminary

Optics
With 50° Lens

Luminous Flux
3200 lm

Consumption Power
40 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse CB Enec 220V 240V IP 20 IK 02 100KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing DKP Sheet
  • Optics With 50° Lens
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 3200 lm
  • Consumption Power 40 W
  • Luminaire Efficiency 90 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life 100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

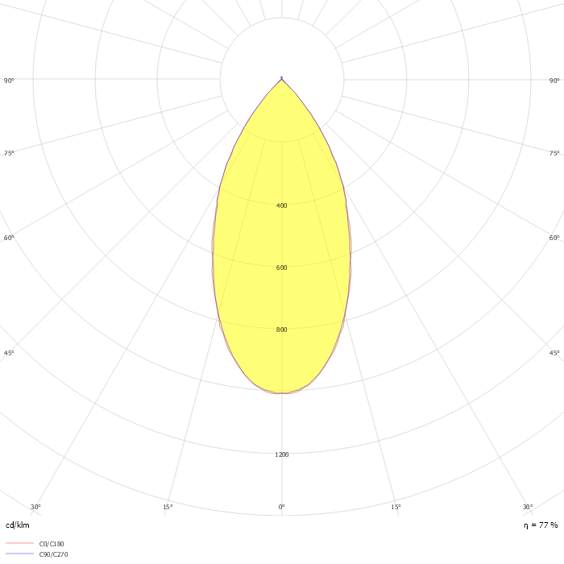

Optics
50º
Dimensions
Sharp Teknik (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SHP 030 005 021S 8040 10 50 LN 40 00 40 3200 4000 50° Lens 293,5x51,5x78,5 Datasheet
Download
Related Products

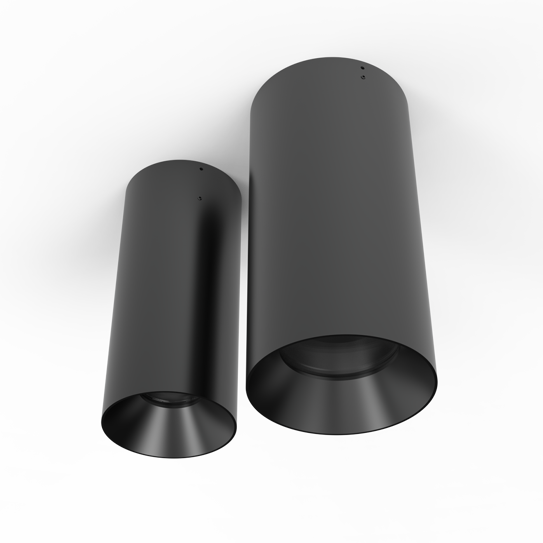

Dif 1080X1080
Dif S Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010/RAL 9016
2700K/3000K/4000K/6500K
Dif 1080X1080
Dif M Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010/RAL 9016
2700K/3000K/4000K/6500K

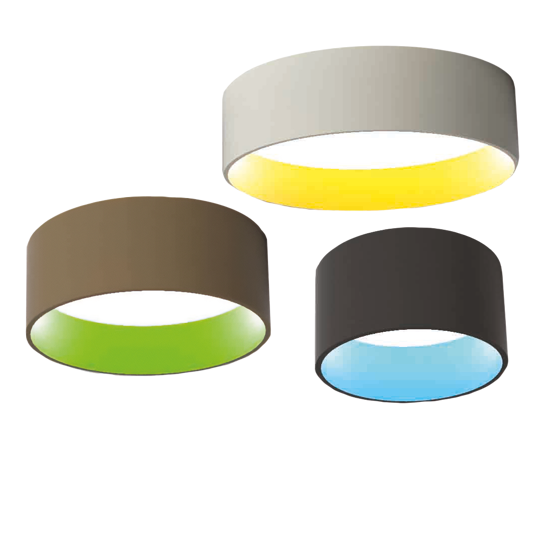

Dimpledrums 1080X1080
Dimple Drums Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K
Dimpledrums 1080X1080
Dimple Drums End Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

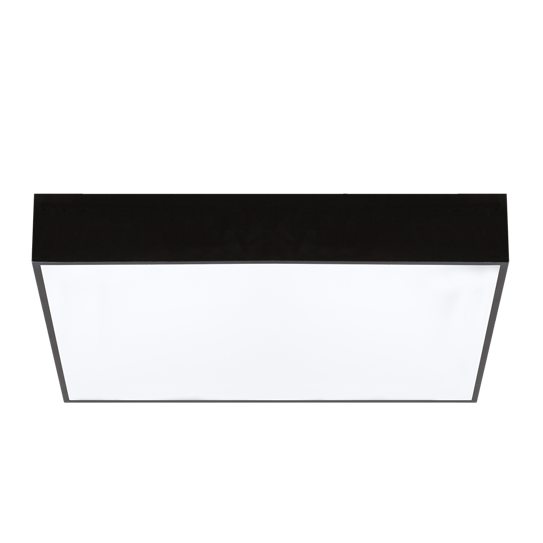

Easy Sıvaüstü 1080X1080
Easy Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

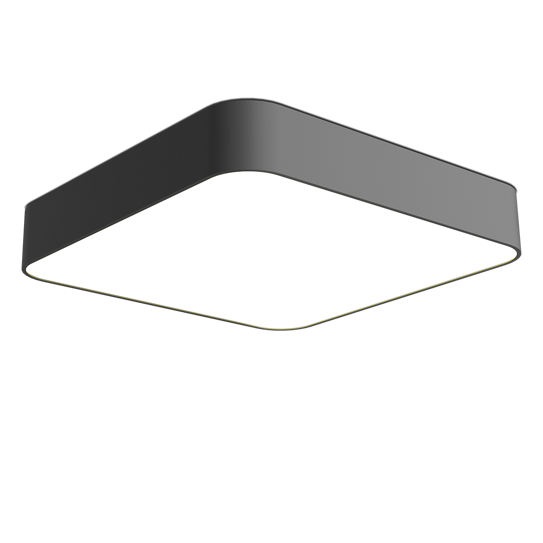

Force 1080X1080
Force Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

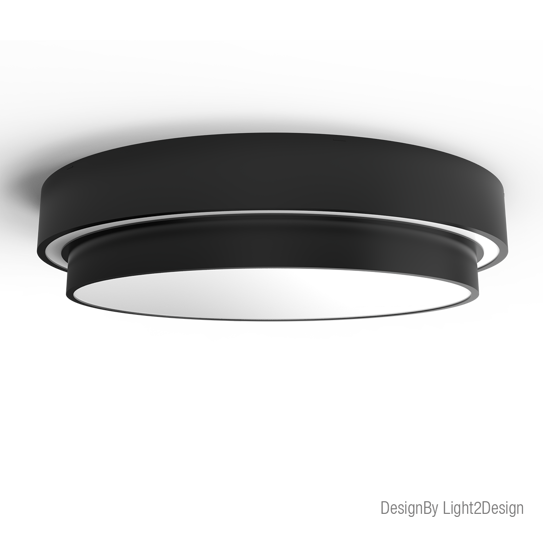

Dual C 1080X1080 (1)
Dual C Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K

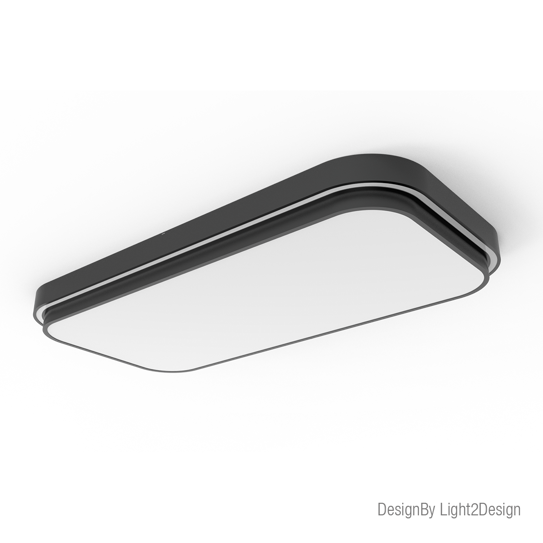

Dual R 1080X1080 (1)
Dual R Surface Mounted Surface Mounted RAL 9006/RAL 9005/RAL 9010
2700K/3000K/4000K/6500K
Flus Sıvaüstü 1 1080X1080
Flus Surface mounted Surface Mounted Surface Mounted RAL 9005/RAL 9010
2700K/3000K/4000K/6500K
Hoap Sıvaüstü 1080X1080
Hoap Surface Mounted Surface Mounted RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

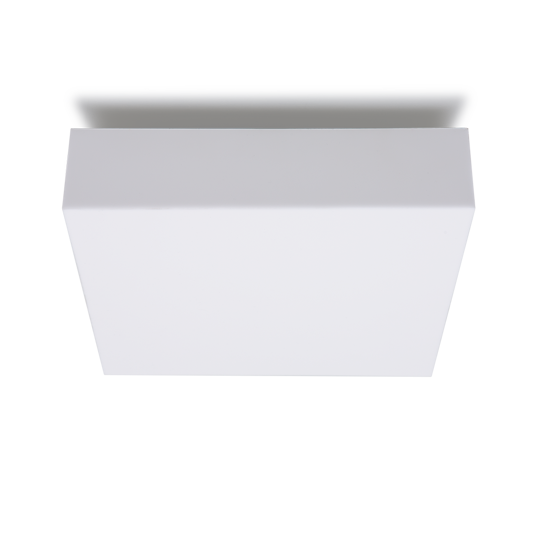

Karree 1080X1080
Karree Surface Mounted Surface Mounted RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

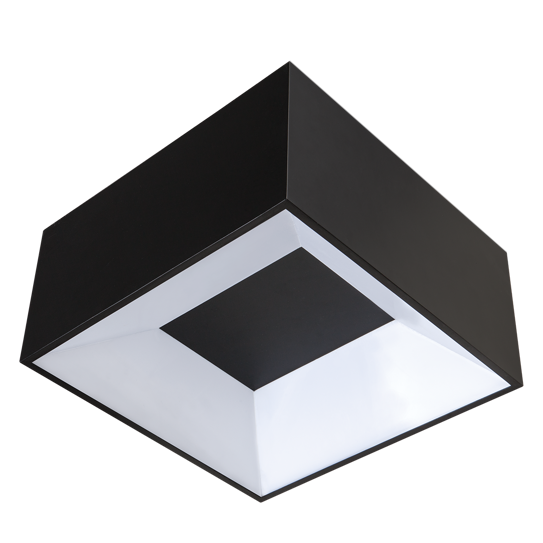

Lids I 1080X1080
Lids I Surface Mounted Surface Mounted RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

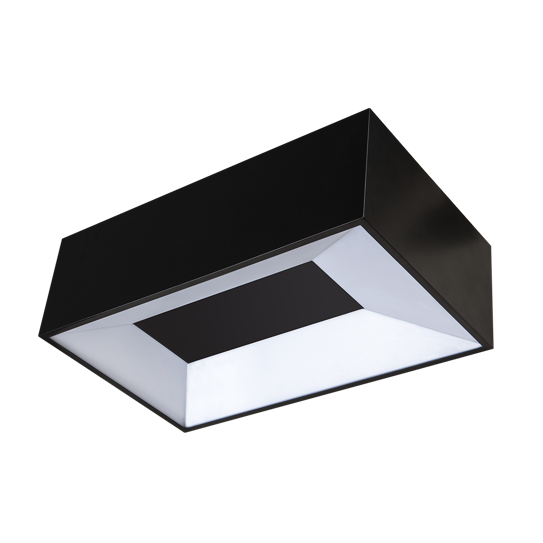

Lids II 1080X1080
Lids II Surface Mounted Surface Mounted RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K

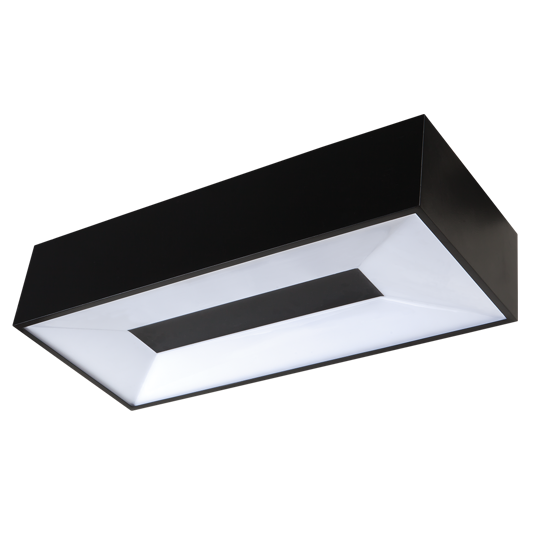

Lids III 1080X1080
Lids III Surface Mounted Surface Mounted RAL 9005/RAL 9010/RAL 9006
2700K/3000K/4000K/6500K
Obi S 1080X1080
Obi S Surface Mounted Surface Mounted RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

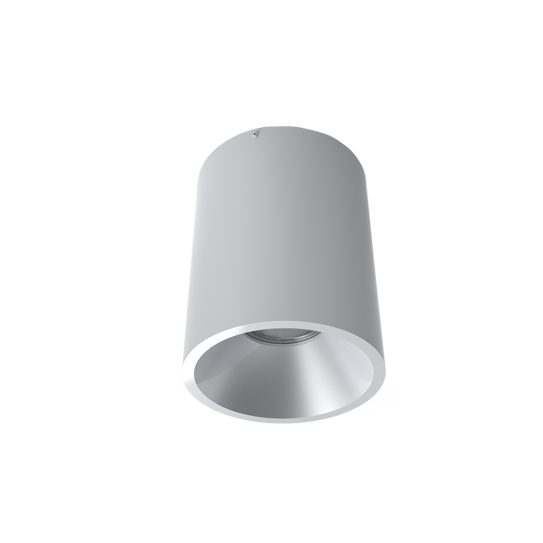

Obi M 1080X1080
Obi M Surface Mounted Surface Mounted RAL 9005/RAL 9016
2700K/3000K/4000K/6500K

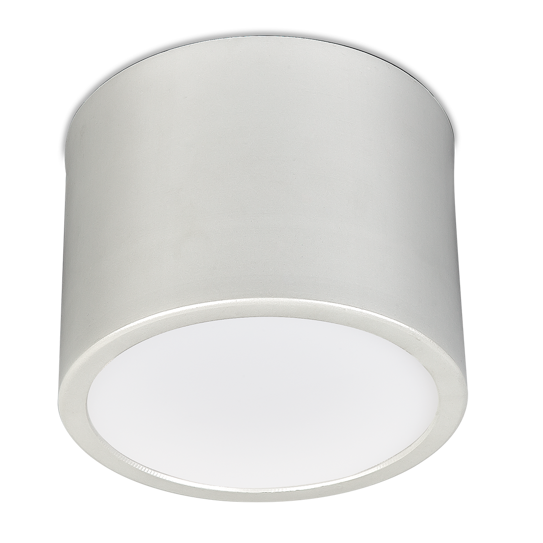

Pail 1080X1080
Pail Surface Mounted Surface Mounted RAL 9005/RAL 9016/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K
Pail Level 1080X1080
Pail Level Surface Mounted Surface Mounted RAL 9005/RAL 9016/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

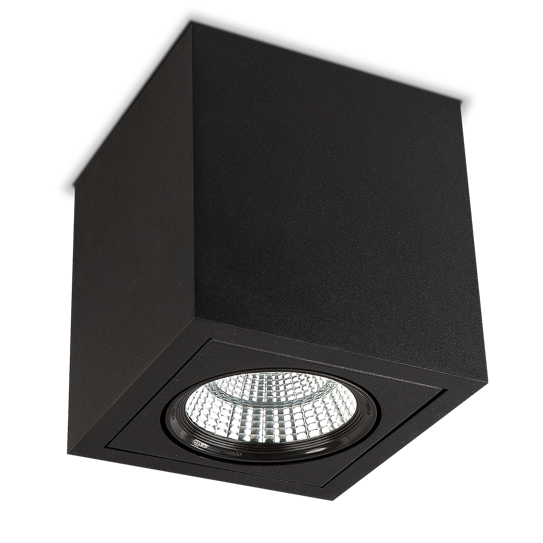

Parent Sıvaüstü Tekli 1080X1080
Parent I Surface Mounted Surface Mounted Surface Mounted RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

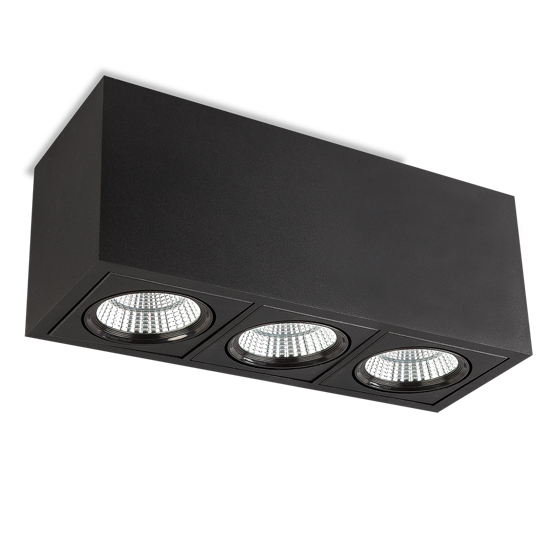

Parent Sıvaüstü Üçlü 1080X1080
Parent III Surface Mounted Surface Mounted Surface Mounted RAL 9005/RAL 9006/RAL 9010
2700K/3000K/4000K/6500K

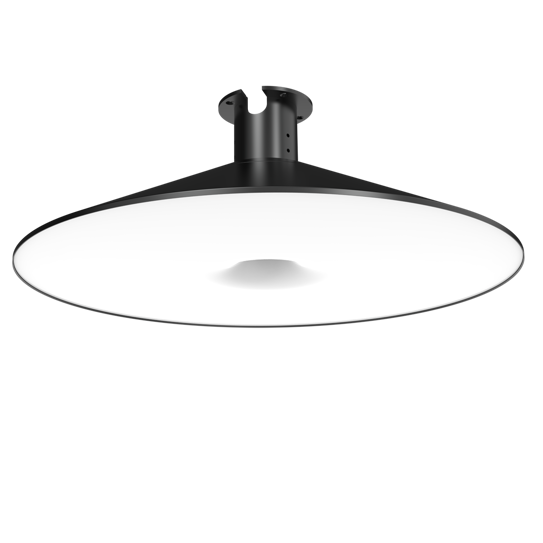

Setalite 1080X1080
