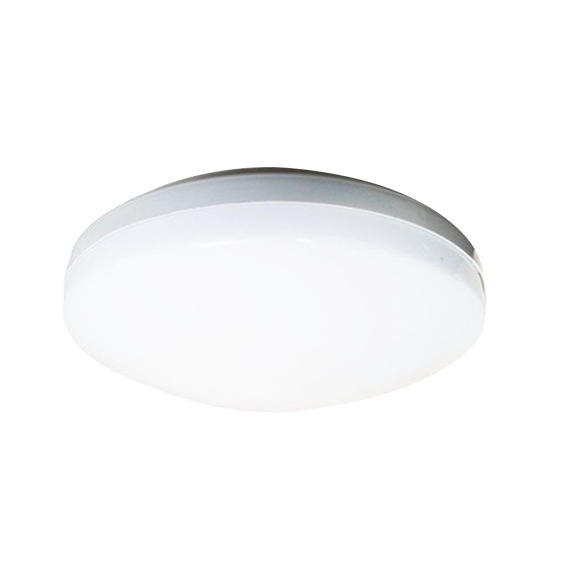

Stair

Stair

Surface Mounted Luminary

Optics
Opal PMMA

Luminous Flux
1080 lm / 2340 lm

Consumption Power
12 W / 26 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 54 IK 02 70K LED life

LED life

Colour Options

RAL 9016

Product Features

Luminaire Group Surface Mounted
Mounting Type Surface Mounted
Luminary Color RAL 9016
Housing Thermoplastic PC
Optics Opal PMMA
Light Source LED
Electrical Protection Class CLASS II
IP 54
IK 02
Operating Temperature -15°C / +45°C
Luminous Flux 1080 lm / 2340 lm
Consumption Power 12 W / 26 W
Luminaire Efficiency 90 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life 70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit / Sensor

Optics

180º

Dimensions

Stair Teknik Cizim

Product Variations

Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
STİ 027 078 012S 8040 10 99 OP 54 00 ( On/Off )	12	1080	4000	180° Opal PMMA	270X78
STİ 027 078 012S 8040 13 99 OP 54 00 (3 Hours with Lock)	12	1080	4000	180° Opal PMMA	270X78
STİ 027 078 012S 8040 14 99 OP 54 00 (With Sensor)	12	1080	4000	180° Opal PMMA	270X78
STİ 027 078 012S 8040 16 99 OP 54 00 (3 Hour kit with Sensor)	12	1080	4000	180° Opal PMMA	270X78
STİ 027 078 026S 8040 10 99 OP 54 00 (On/Off)	26	2340	4000	180° Opal PMMA	270X78
STİ 027 078 026S 8040 13 99 OP 54 00 (3 Hours with Lock)	26	2340	4000	180° Opal PMMA	270X78
STİ 027 078 026S 8040 14 99 OP 54 00 (With Sensor)	26	2340	4000	180° Opal PMMA	270X78
STİ 027 078 026S 8040 16 99 OP 54 00 (3 Hours kit with Sensor)	26	2340	4000	180° Opal PMMA	270X78

Download

Create fact sheet (pdf)
