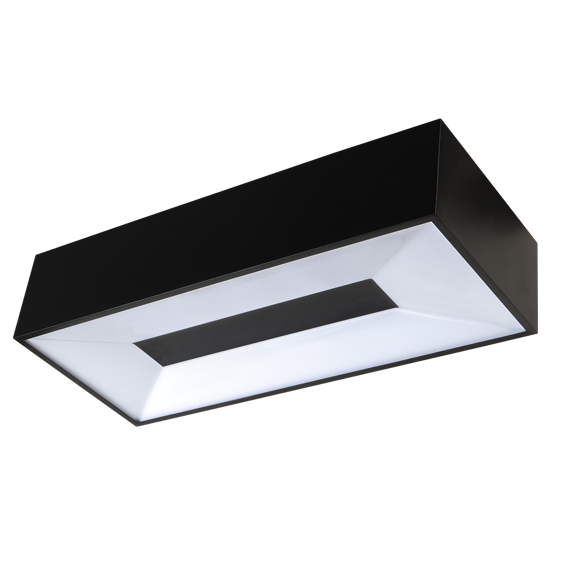

Lids III 1080X1080

Lids III

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux
5600 lm

Consumption Power
65 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse CB Enec 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9005
RAL 9010
RAL 9006
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9005 - RAL 9010 - RAL 9006
  • Housing DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 5600 lm
  • Consumption Power 65 W
  • Luminaire Efficiency 86,2 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life 70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

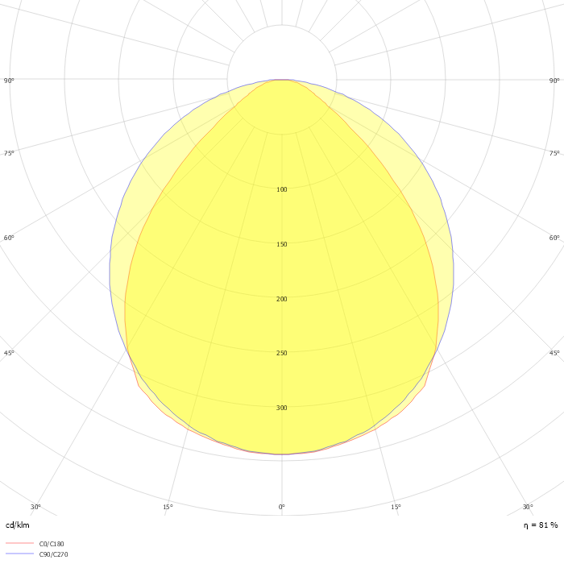

Optics
110º
Dimensions
Lids III Teknik (2)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
15000037 LID 060 025 065S 8040 10 99 OP 40 00 65 5600 4000 120° Diffuser 600x250x130 Datasheet
Download
