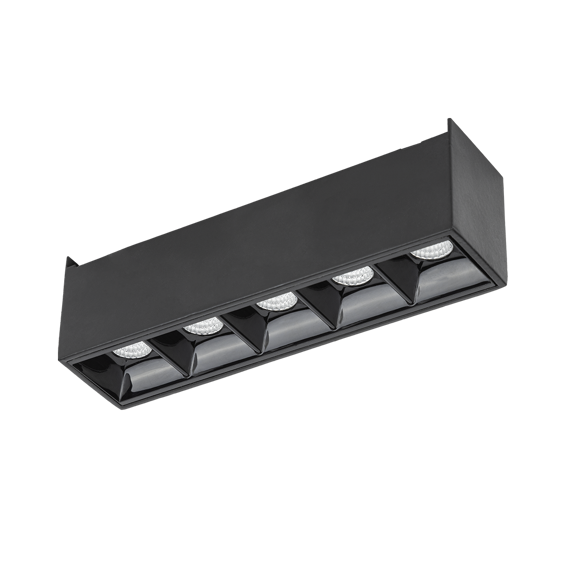

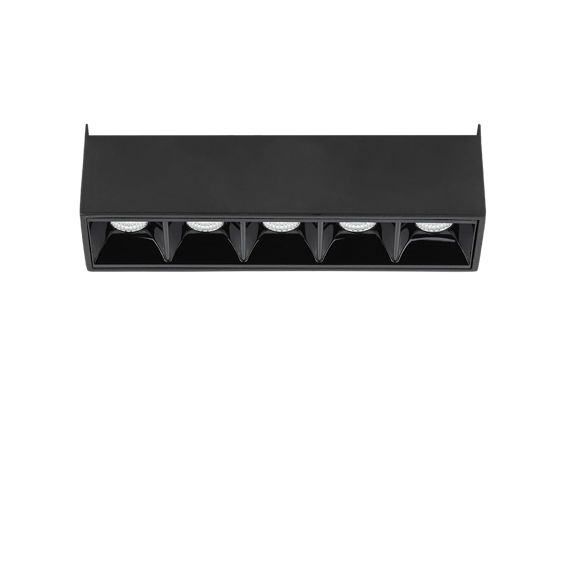

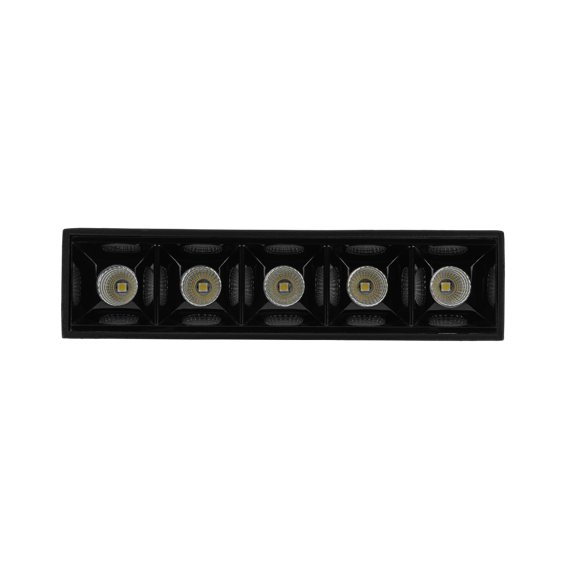

Flus Surface mounted
Surface Mounted Luminary
Optics
Reflector & Diffuser
Luminous Flux
240 lm / 400 lm
Consumption Power
3 W / 5 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
100K
Colour Options
RAL 9005
RAL 9010
Product Features
- Luminaire Group Surface Mounted
- Mounting Type Surface Mounted
- Luminary Color RAL 9005 - RAL 9010
- Housing DKP Sheet
- Optics Reflector & Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 240 lm / 400 lm
- Consumption Power 3 W / 5 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

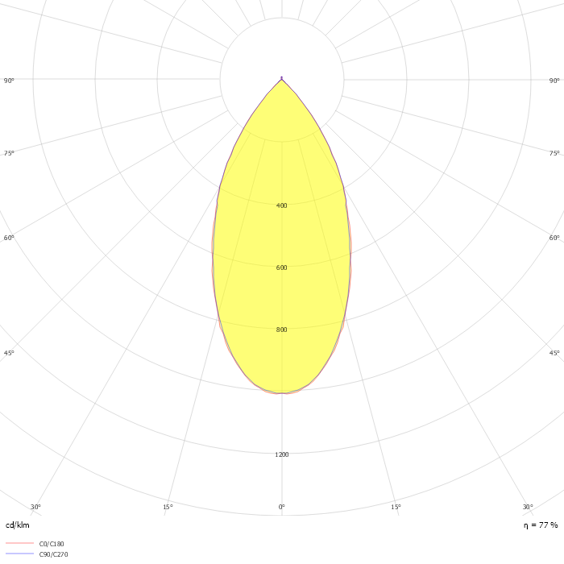

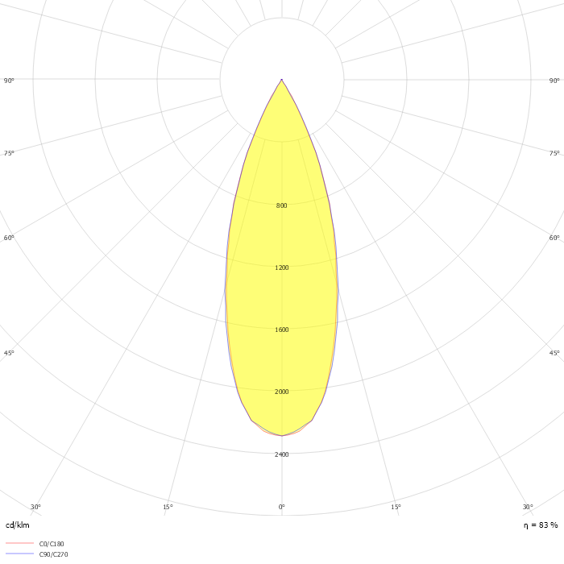

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| FLS 003 009 03S 8040 10 36 DY 20 00 | 3 | 240 | 4000 | 36° Reflector | 93x33x70 |
|
| FLS 003 009 03S 8040 10 48 DY 20 00 | 3 | 240 | 4000 | 48° Reflector | 93x33x70 |
|
| FLS 004 015 05S 8040 10 36 DY 20 00 | 5 | 400 | 4000 | 36° Reflector | 152x42x70 |
|
| FLS 004 015 05S 8040 10 48 DY 20 00 | 5 | 400 | 4000 | 48° Reflector | 152x42x70 |
|
Download
