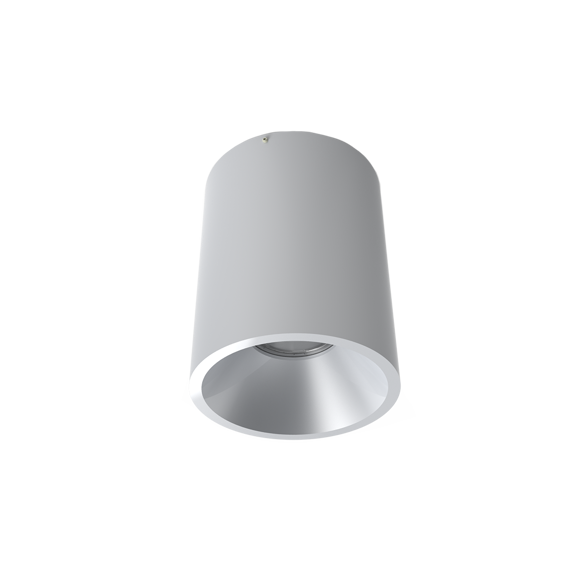

Obi M
Surface Mounted Luminary
Optics
15° 30° 40 °Reflector & Transparent Diffuser
Luminous Flux
1260 lm / 1820 lm / 910 lm
Consumption Power
13 W / 18 W / 26 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9005
RAL 9016
Product Features
- Luminaire Group Surface Mounted
- Mounting Type Surface Mounted
- Luminary Color RAL 9005 - RAL 9016
- Housing Aluminum Injection
- Optics 15° 30° 40 °Reflector & Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1260 lm / 1820 lm / 910 lm
- Consumption Power 13 W / 18 W / 26 W
- Luminaire Efficiency 70 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

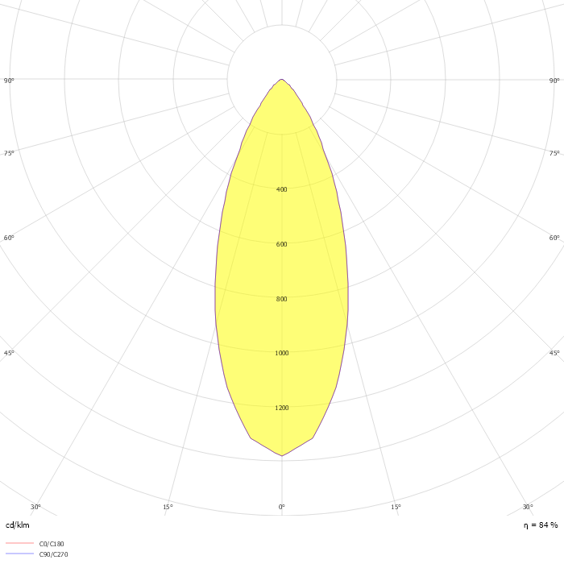

Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 15003144 | OBI 013 020 013S 9040 10 15 SD 40 00 | 13 | 910 | 4000 | 15° Transparent Diffuser | Ø130x200 |
|
| 15003160 | OBI 013 020 013S 9040 10 30 SD 40 00 | 18 | 1260 | 4000 | 30° Transparent Diffuser | Ø130x200 |
|
| 15003176 | OBI 013 020 013S 9040 10 40 SD 40 00 | 26 | 1820 | 4000 | 40° Transparent Diffuser | Ø130x200 |
|
| 15003192 | OBI 013 020 018S 9040 10 15 SD 40 00 | 13 | 910 | 4000 | 15° Transparent Diffuser | Ø130x200 |
|
| 15003207 | OBI 013 020 018S 9040 10 30 SD 40 00 | 18 | 1260 | 4000 | 30° Transparent Diffuser | Ø130x200 |
|
| 15003223 | OBI 013 020 018S 9040 10 40 SD 40 00 | 26 | 1820 | 4000 | 40° Transparent Diffuser | Ø130x200 |
|
| 15003239 | OBI 013 020 026S 9040 10 15 SD 40 00 | 13 | 910 | 4000 | 15° Transparent Diffuser | Ø130x200 |
|
| 15003253 | OBI 013 020 026S 9040 10 30 SD 40 00 | 18 | 1260 | 4000 | 30° Transparent Diffuser | Ø130x200 |
|
| 15003269 | OBI 013 020 026S 9040 10 40 SD 40 00 | 26 | 1820 | 4000 | 40° Transparent Diffuser | Ø130x200 |
|
Download
