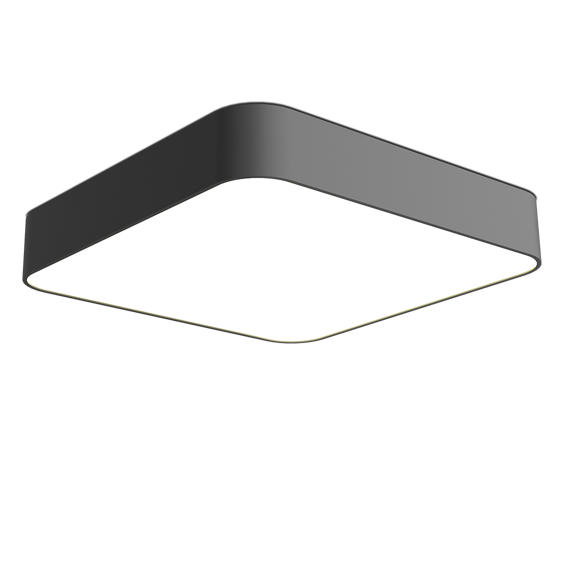

Force
Surface Mounted Luminary
Optics
Diffuser
Luminous Flux
3100 lm / 4700 lm / 6600 lm
Consumption Power
25 W / 38 W / 55 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
- Luminaire Group Surface Mounted
- Mounting Type Surface Mounted
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010
- Housing DKP Sheet
- Optics Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 3100 lm / 4700 lm / 6600 lm
- Consumption Power 25 W / 38 W / 55 W
- Luminaire Efficiency 124 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| FRC 030 030 025S 8040 10 99 OP 20 00 | 25 | 3100 | 4000 | 120° Diffuser | 300x300x100 |
|
| FRC 060 060 038S 8040 10 99 OP 20 00 | 38 | 4700 | 4000 | 120° Diffuser | 600x600x100 |
|
| FRC 090 090 055S 8040 10 99 OP 20 00 | 55 | 6600 | 4000 | 120° Diffuser | 900x900x100 |
|
