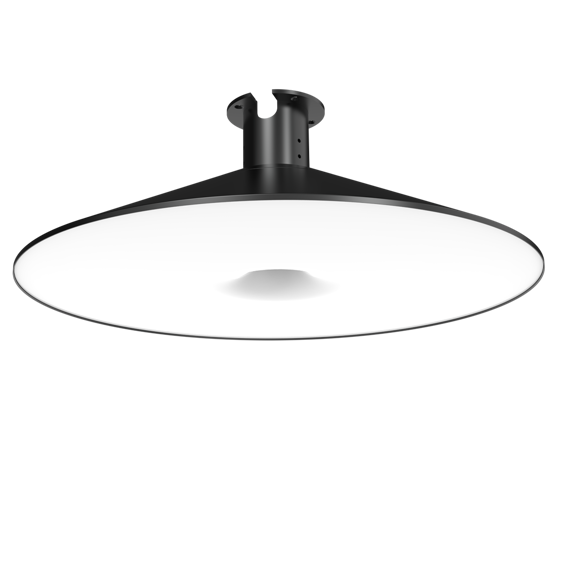

Setalite 1080X1080

Setalite

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux
3200 lm

Consumption Power
40 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse CB Enec 220V 240V IP 20 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Aluminium
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 3200 lm
  • Consumption Power 40 W
  • Luminaire Efficiency 80 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life 70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

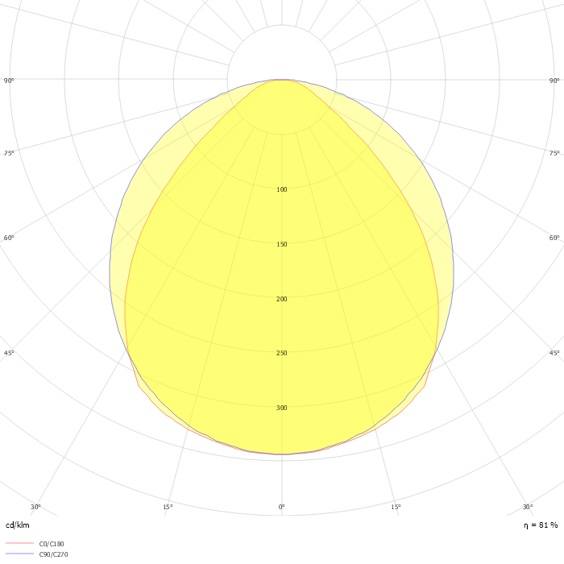

Optics
110º
Dimensions
Setalite Teknik (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SET 060 022 040S 8040 10 99 OP 20 00 40 3200 4000 120° Diffuser Ø600x224 Datasheet
Download
