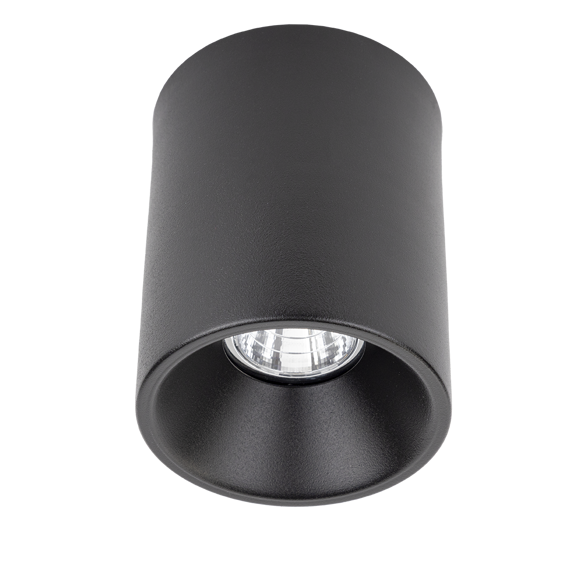

Obi S
Surface Mounted Luminary
Optics
15° 30° 40 °Reflector & Transparent Diffuser
Luminous Flux
490 lm / 630 lm / 910 lm
Consumption Power
13 W / 7 W / 9 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9005
RAL 9016
Product Features
- Luminaire Group Surface Mounted
- Mounting Type Surface Mounted
- Luminary Color RAL 9005 - RAL 9016
- Housing Aluminum Injection
- Optics 15° 30° 40 °Reflector & Transparent Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 490 lm / 630 lm / 910 lm
- Consumption Power 13 W / 7 W / 9 W
- Luminaire Efficiency 70 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

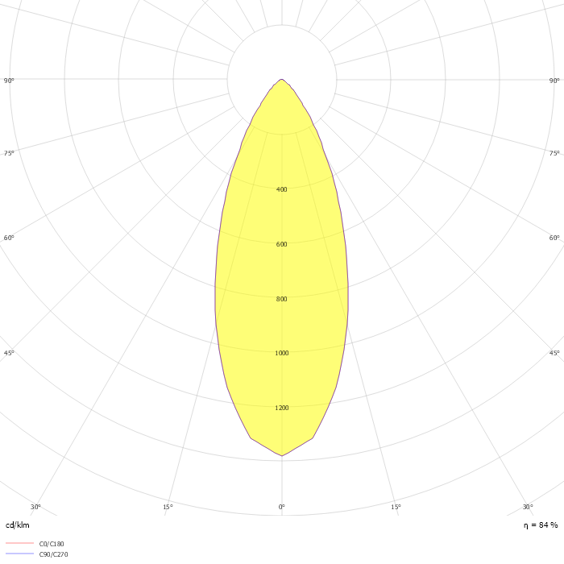

Optics

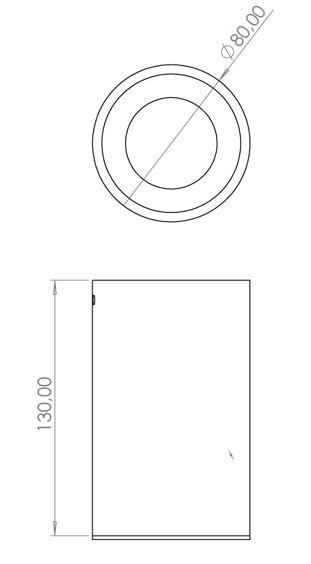

Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 15002948 | OBI 010 013 007S 9040 10 15 SD 40 00 | 7 | 490 | 4000 | 15° Transparent Diffuser | Ø102x130 |
|
| 15002964 | OBI 010 013 007S 9040 10 30 SD 40 00 | 7 | 490 | 4000 | 30° Transparent Diffuser | Ø102x130 |
|
| 15002980 | OBI 010 013 007S 9040 10 40 SD 40 00 | 7 | 490 | 4000 | 40° Transparent Diffuser | Ø102x130 |
|
| 15002996 | OBI 010 013 009S 9040 10 15 SD 40 00 | 9 | 630 | 4000 | 15° Transparent Diffuser | Ø102x130 |
|
| 15003012 | OBI 010 013 009S 9040 10 15 SD 40 00 (1) | 9 | 630 | 4000 | 30° Transparent Diffuser | Ø102x130 |
|
| 15003028 | OBI 010 013 009S 9040 10 40 SD 40 00 | 9 | 630 | 4000 | 40° Transparent Diffuser | Ø102x130 |
|
| 15003044 | OBI 010 013 013S 9040 10 15 SD 40 00 | 13 | 910 | 4000 | 15° Transparent Diffuser | Ø102x130 |
|
| 15002873 | OBI 010 013 013S 9040 10 30 SD 40 00 | 13 | 910 | 4000 | 30° Transparent Diffuser | Ø102x130 |
|
| 15003075 | OBI 010 013 013S 9040 10 40 SD 40 00 | 13 | 910 | 4000 | 40° Transparent Diffuser | Ø102x130 |
|
Download
