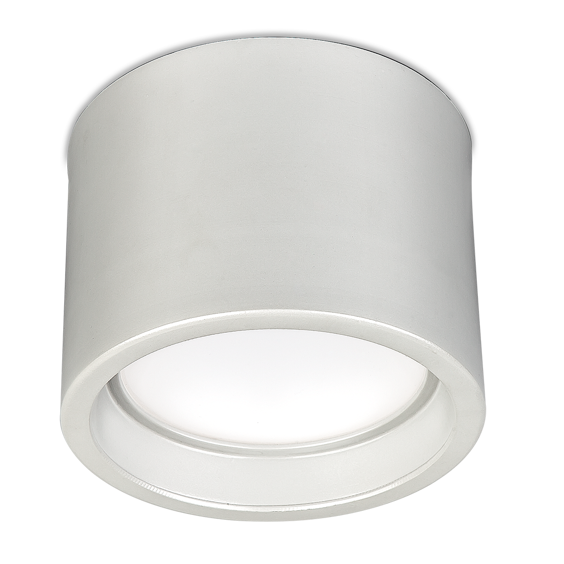

Pail Level 1080X1080

Pail Level

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux
1170 lm / 2214 lm / 2250 lm

Consumption Power
18 W / 24 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 03 70K LED life

LED life

Colour Options

RAL 9005

RAL 9016

RAL 9006

RAL 9010

Product Features

Luminaire Group Surface Mounted
Mounting Type Surface Mounted
Luminary Color RAL 9005 - RAL 9016 - RAL 9006 - RAL 9010
Housing Aluminum Extrusion
Optics Opal Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 03
Operating Temperature -20°C / +40°C
Luminous Flux 1170 lm / 2214 lm / 2250 lm
Consumption Power 18 W / 24 W / 9 W
Luminaire Efficiency 123 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life 70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

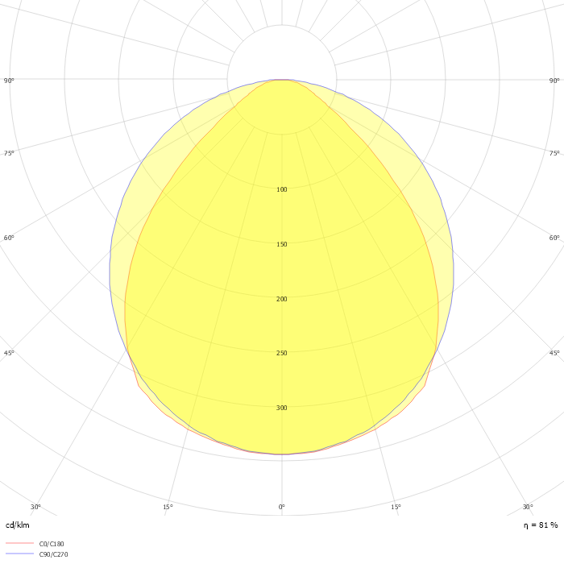

Optics

110º

Dimensions

Pail Level Ø135 (1)

Pail Level Ø215 (1)

Pail Level Ø185 (1)

Product Variations

Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
PLL 015 010 009S 8040 10 99 OP 44 00	9	1170	4000	120° Opal Diffuser	Ø135
PLL 020 012 018S 8040 10 99 OP 44 00	18	2214	4000	120° Opal Diffuser	Ø185
PLL 023 015 024S 8040 10 99 OP 44 00	24	2250	4000	120° Opal Diffuser	Ø215

Download

Create fact sheet (pdf)
