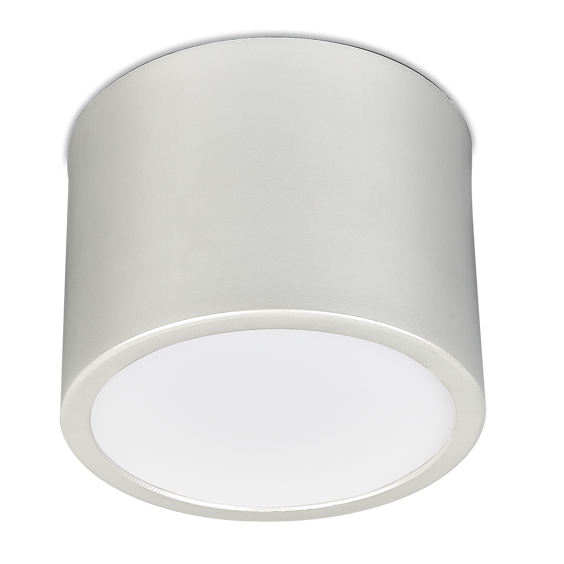

Pail 1080X1080

Pail

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux
1170 lm / 2214 lm / 2250 lm

Consumption Power
18 W / 24 W / 9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse CB Enec 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9005
RAL 9016
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9005 - RAL 9016 - RAL 9006 - RAL 9010
  • Housing Aluminum Extrusion
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 1170 lm / 2214 lm / 2250 lm
  • Consumption Power 18 W / 24 W / 9 W
  • Luminaire Efficiency 123 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life 70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

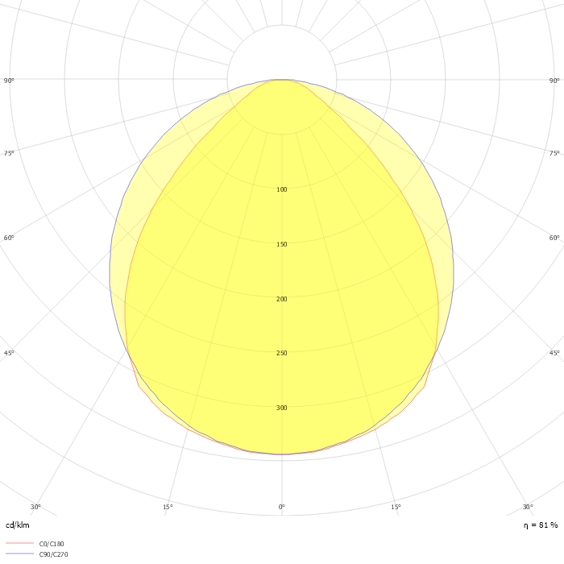

Optics
110º
Dimensions
Pail Ø185 (1)Pail Ø135 (1)Pail Ø215 (1)
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
PAL 014 010 009S 8040 10 99 OP 44 00 9 1170 4000 120° Opal Diffuser Ø155 Datasheet
PAL 018 012 018S 8040 10 99 OP 44 00 18 2214 4000 120° Opal Diffuser Ø200 Datasheet
PAL 022 015 024S 8040 10 99 OP 44 00 24 2250 4000 120° Opal Diffuser Ø235 Datasheet
