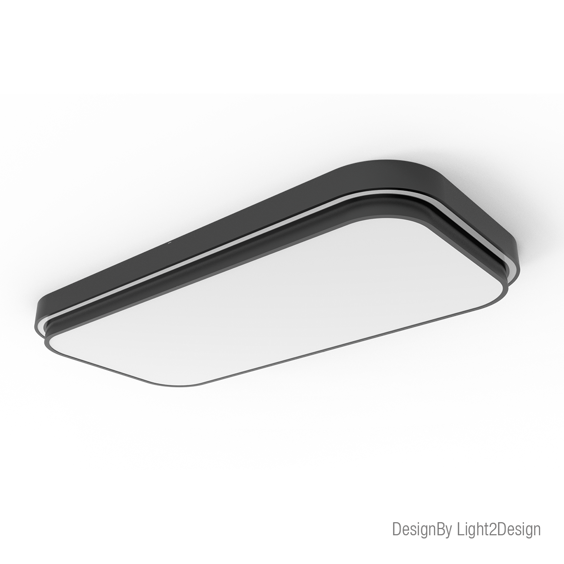

Dual R

Surface Mounted Luminary

Optics
Opal Diffuser

Luminous Flux

Consumption Power

Light Color Temperature (CCT)

Toprak Ce Indoor Tse CB Enec 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
  • Luminaire Group Surface Mounted
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9006 - RAL 9005 - RAL 9010
  • Housing DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux
  • Consumption Power
  • Luminaire Efficiency 130 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT)
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life 70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

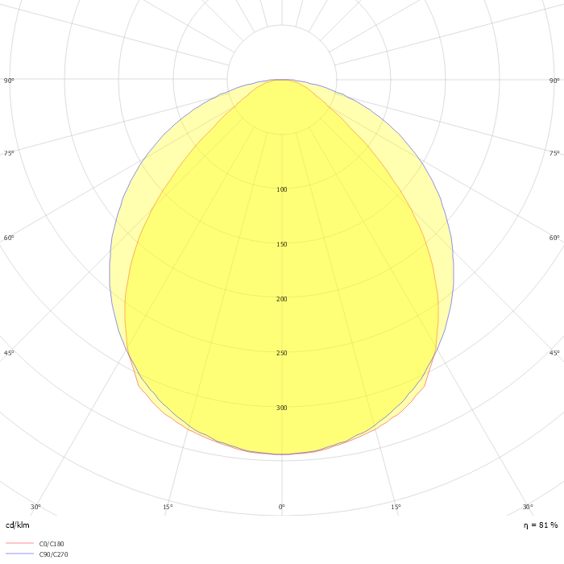

Optics
110º
Dimensions
Dual R Teknik (1)
