Eye M 1080X1080

Eye S

Recessed Downlight & Spot Luminary

Optics
25° 36° Lens and Transparent Diffuser

Luminous Flux
174 lm / 86 lm

Consumption Power
1 W / 2 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 40 IK 03 100K LED life

LED life

Colour Options

RAL 9005

RAL 9016

Product Features

Luminaire Group Downlight & Spot
Mounting Type Recessed
Luminary Color RAL 9005 - RAL 9016
Housing Aluminum Extrusion
Optics 25° 36° Lens and Transparent Diffuser
Light Source LED
Electrical Protection Class CLASS II
IP 40
IK 03
Operating Temperature -20°C / +40°C
Luminous Flux 174 lm / 86 lm
Consumption Power 1 W / 2 W
Luminaire Efficiency 86 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life >100.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

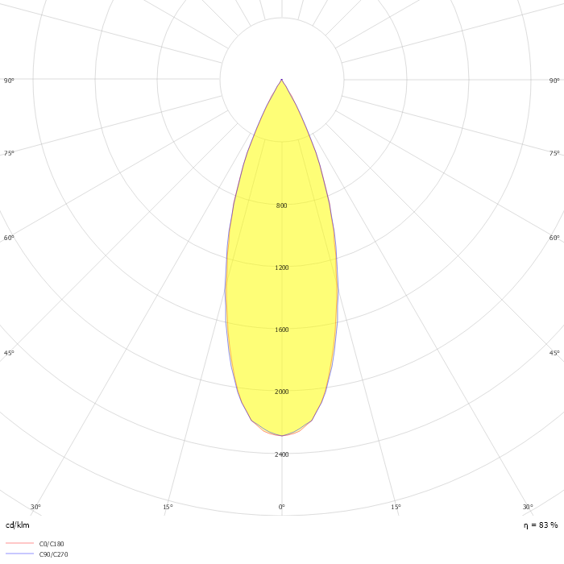

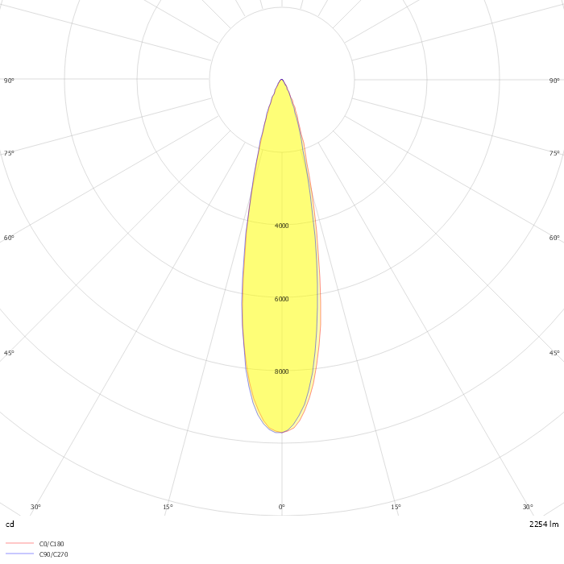

Optics

Dimensions

Eye S Teknik

Product Variations

Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
EYE 004 006 001A 8040 10 25 LN 40 00	1	86	4000	25° Lens	Ø42
EYE 004 006 001A 8040 10 36 LN 40 00	1	86	4000	36° Lens	Ø42
EYE 004 006 002A 8040 10 25 LN 40 00	2	174	4000	25° Lens	Ø42
EYE 004 006 002A 8040 10 36 LN 40 00	2	174	4000	36° Lens	Ø42

Download

Create fact sheet (pdf)
