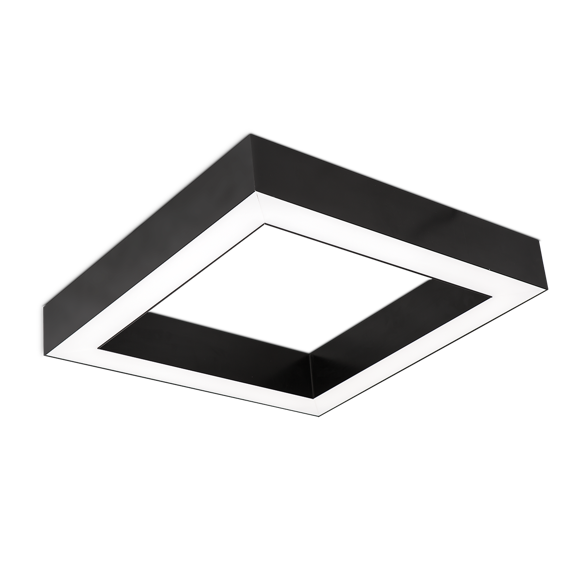

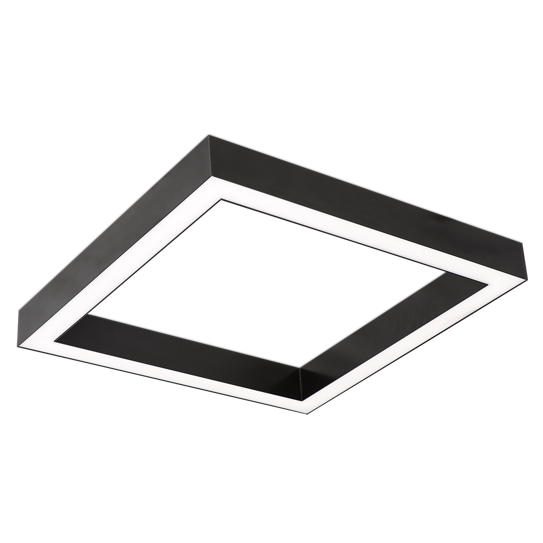

Shorefour M 1080X1080 (1)

Shorefour M

Surface Mounted Linear Luminary

Optics
Opal Diffuser

Luminous Flux
11232 lm / 14976 lm / 7488 lm

Consumption Power
104 W / 52 W / 78 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9016
RAL 9010
Product Features
  • Luminaire Group Linear
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9016 - RAL 9010
  • Housing Aluminum extruded profile
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 11232 lm / 14976 lm / 7488 lm
  • Consumption Power 104 W / 52 W / 78 W
  • Luminaire Efficiency 144 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Optics

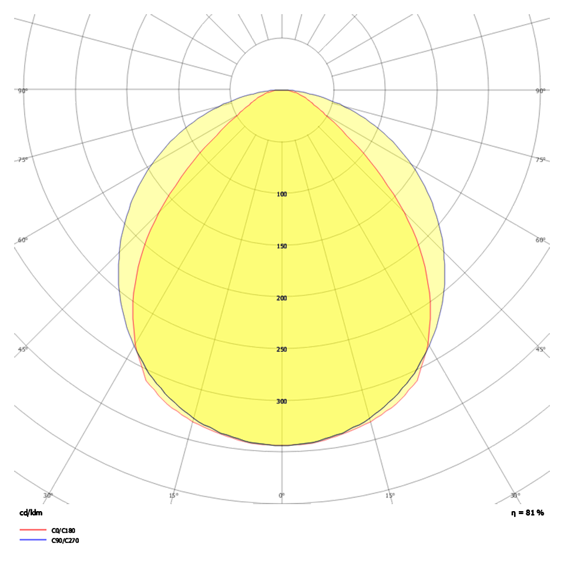

Shorefour M Isik Egrisi
Dimensions
Shorefour M 640X640Shorefour M 920X920Shorefour M 1200X1200
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SFR 064 064 052S 8040 10 99 OP 40 00 52 7488 4000 120° Opal Diffuser 640x640x47x70 Datasheet
SFR 092 092 106S 8040 10 99 OP 40 00 78 11232 4000 120° Opal Diffuser 920x920x47x70 Datasheet
SFR 120 120 140S 8040 10 99 OP 40 00 104 14976 4000 120° Opal Diffuser 1200x1200x47x70 Datasheet
Download

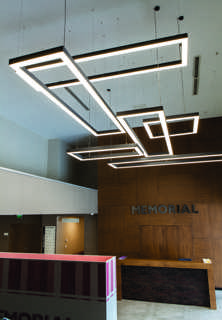

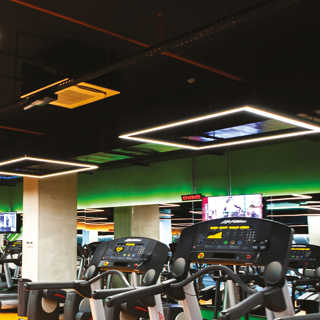

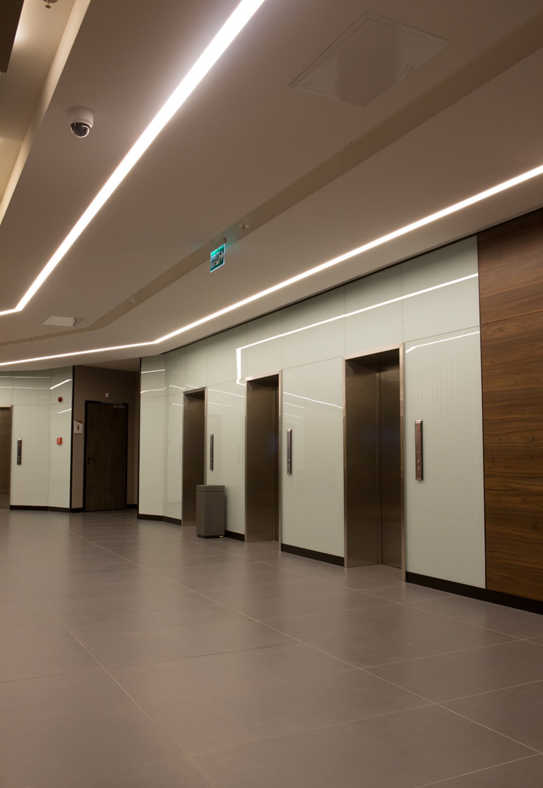

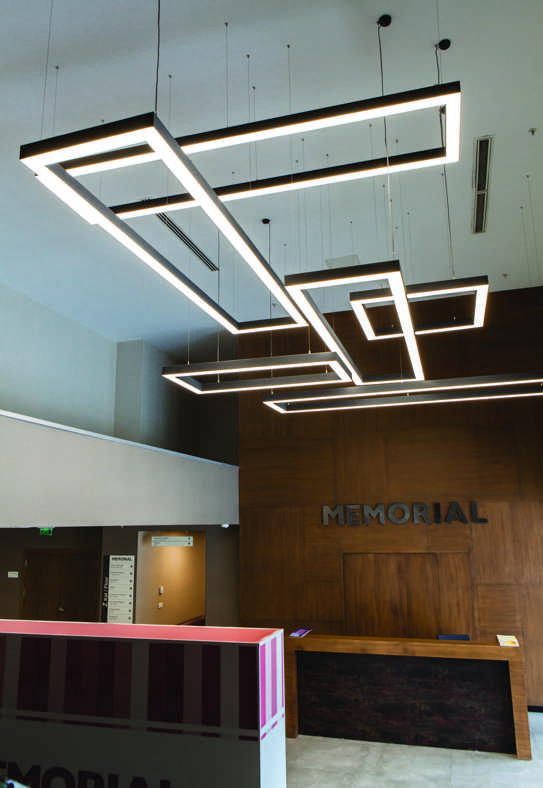

Product Applications
