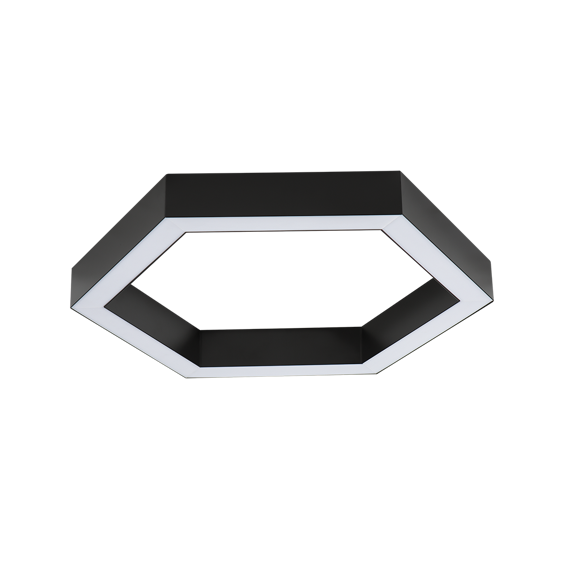

Hexa
Surface Mounted Linear Luminary
Optics
Opal Diffuser
Luminous Flux
11232 lm / 5616 lm / 7488 lm
Consumption Power
39 W / 52 W / 78 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 03
70K
Colour Options
RAL 9010
RAL 9005
Product Features
- Luminaire Group Linear
- Mounting Type Surface Mounted
- Luminary Color RAL 9010 - RAL 9005
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 11232 lm / 5616 lm / 7488 lm
- Consumption Power 39 W / 52 W / 78 W
- Luminaire Efficiency 144 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

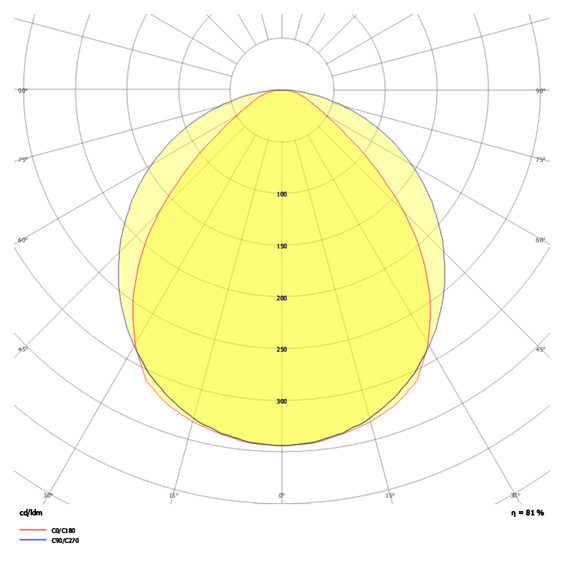

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| HEX 047 066 039S 8040 10 99 OP 40 00 | 39 | 5616 | 4000 | 120° Opal Diffuser | 660x47x70 |
|
| HEX 047 094 052S 8040 10 99 OP 40 00 | 52 | 7488 | 4000 | 120° Opal Diffuser | 94047x70 |
|
| HEX 047 122 078S 8040 10 99 OP 40 00 | 78 | 11232 | 4000 | 120° Opal Diffuser | 1220x47x70 |
|
Download

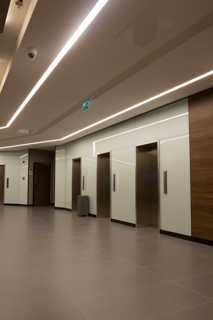

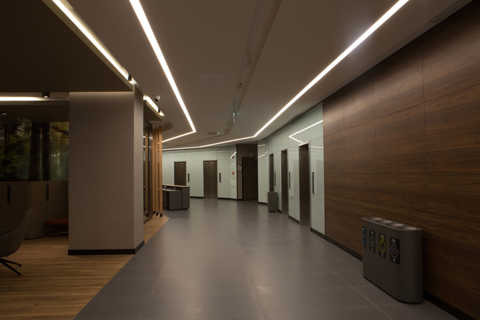

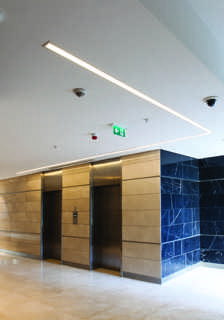

Product Applications
