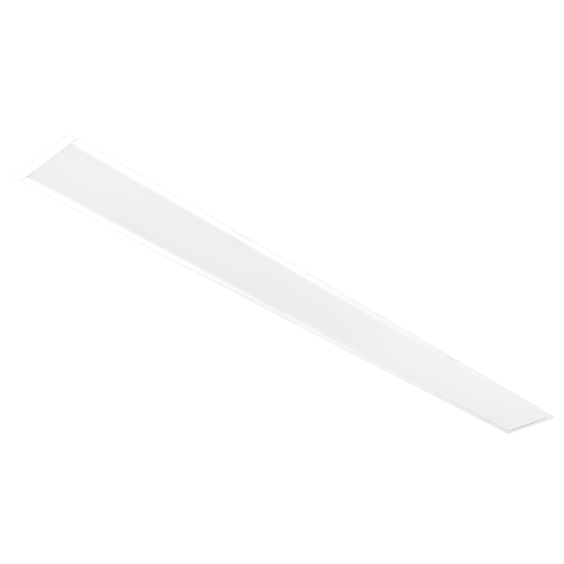

Outline S
Recessed Linear Luminary
Optics
Opal Diffuser
Luminous Flux
2413 lm / 3526 lm / 6125 lm / 7107 lm
Consumption Power
26 W / 38 W / 48 W / 66 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
70K
Colour Options
RAL 9010
RAL 9016
Product Features
- Luminaire Group Linear
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9016
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Electrical Protection Class CLASS II
- Operating Temperature -20°C / +40°C
- Luminous Flux 2413 lm / 3526 lm / 6125 lm / 7107 lm
- Consumption Power 26 W / 38 W / 48 W / 66 W
- Luminaire Efficiency 2413 lm / 3526 lm / 6125 lm / 7107 lm
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Light Source LED
- Luminaire Efficiency 92,81 lm/W

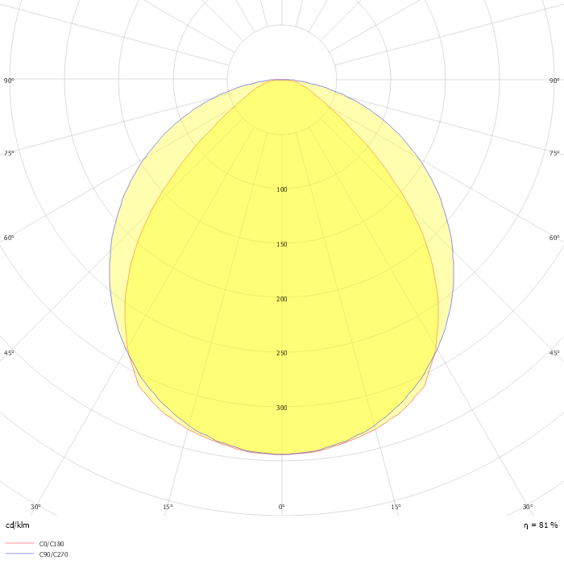

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet | LDT |
|---|---|---|---|---|---|---|---|
| OUT 065 113 026A 8040 10 99 OP 40 TK | 26 | 2413 | 4000 | Opal / 120° | 1150x65x67 |
|
|
| OUT 065 169 038A 8040 10 99 OP 40 TK | 38 | 3526 | 4000 | Opal / 120° | 1710x65x100 |
|
|
| OUT 065 210 066A 8040 10 99 OP 40 TK | 48 | 6125 | 4000 | Opal / 120° | 2270x65x67 |
|
|
| OUT 065 283 077A 8040 10 99 OP 40 TK | 66 | 7107 | 4000 | Opal / 120° | 2830x65x67 |
|
|

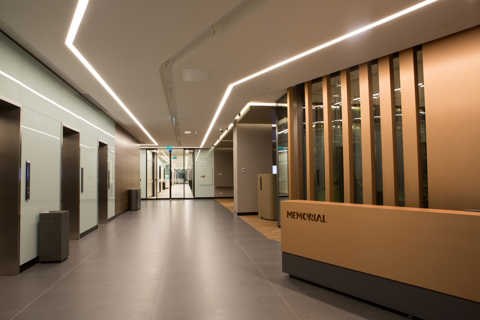

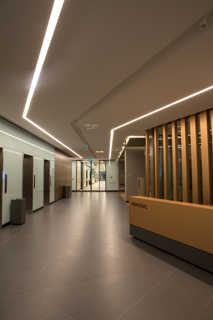

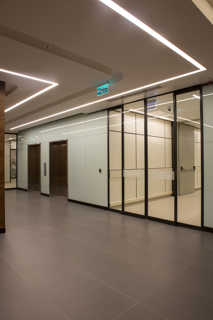

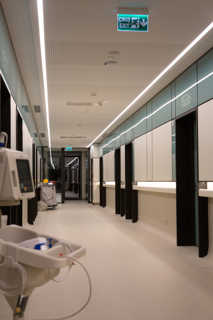

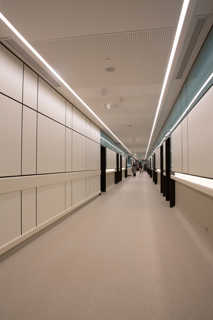

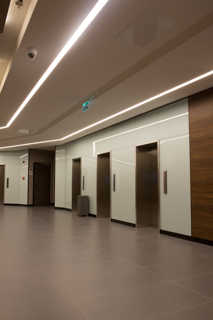

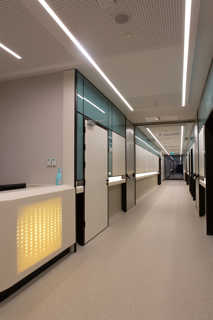

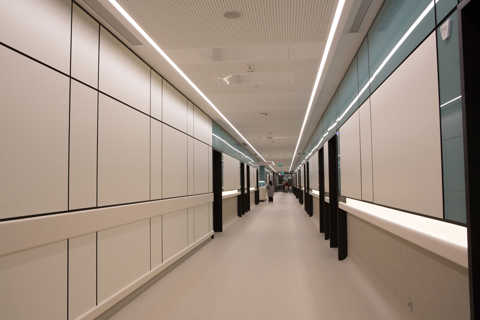

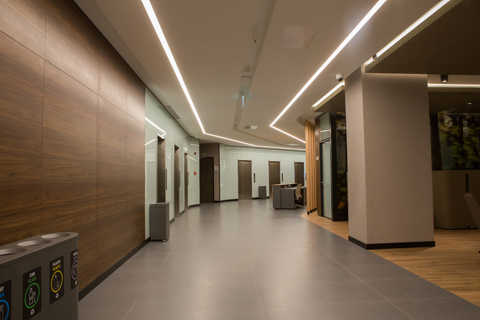

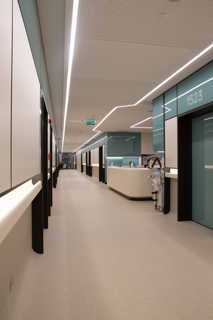

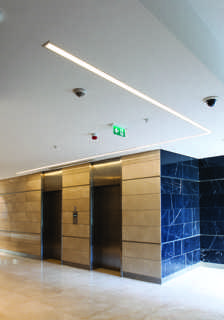

Product Applications
