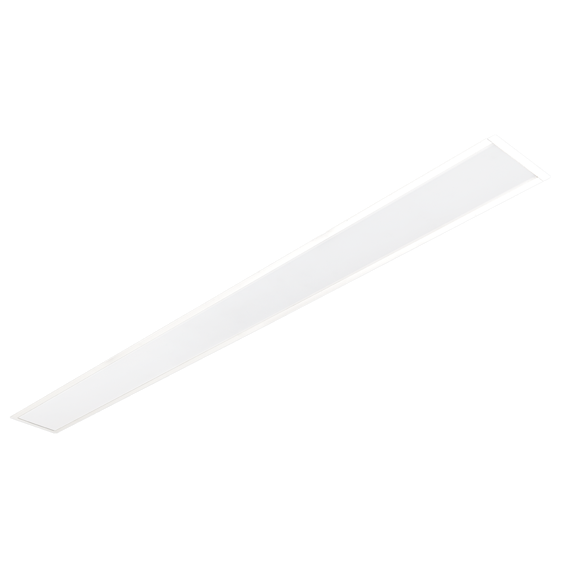

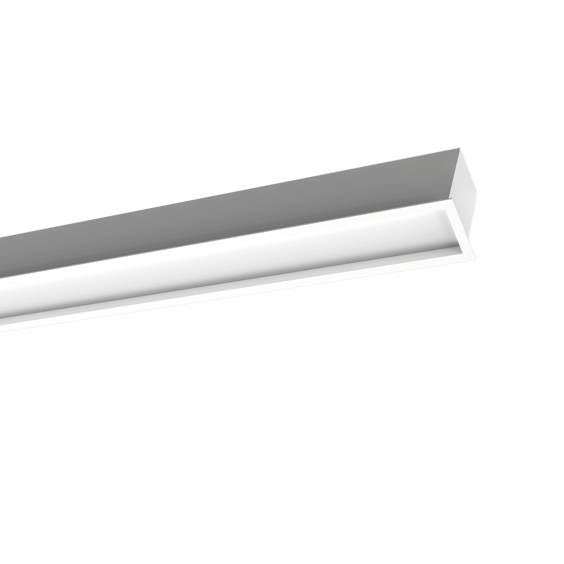

Outline Level M
Recessed Linear Luminary
Optics
Opal Diffuser
Luminous Flux
2413 lm / 3526 lm / 4640 lm / 6032 lm
Consumption Power
26 W / 39 W / 52 W / 65 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
70K
Colour Options
RAL 9016
RAL 9010
Product Features
- Luminaire Group Linear
- Mounting Type Recessed
- Luminary Color RAL 9016 - RAL 9010
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- Operating Temperature -20°C / +40°C
- Luminous Flux 2413 lm / 3526 lm / 4640 lm / 6032 lm
- Consumption Power 26 W / 39 W / 52 W / 65 W
- Luminaire Efficiency 92,81 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

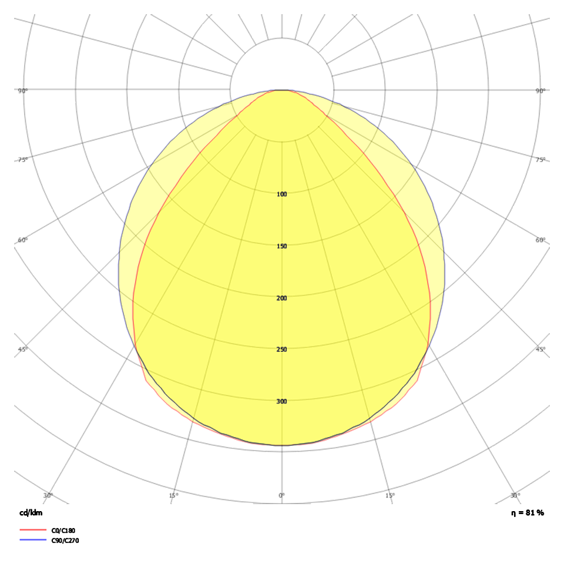

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| OUT 100 115 026A 8030 10 99 OP 40 LV | 26 | 2413 | 4000 | 120° Opal Diffuser | 1150x100x100 |
|
| OUT 100 171 039A 8030 10 99 OP 40 LV | 39 | 3526 | 4000 | 120° Opal Diffuser | 1710x100x100 |
|
| OUT 100 227 052A 8030 10 99 OP 40 LV | 52 | 4640 | 4000 | 120° Opal Diffuser | 2270x100x100 |
|
| OUT 100 283 065A 8030 10 99 OP 40 LV | 65 | 6032 | 4000 | 120° Opal Diffuser | 2830x100x100 |
|
Download

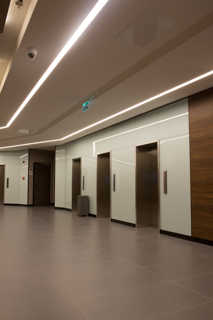

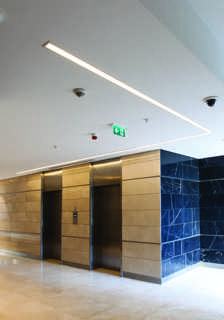

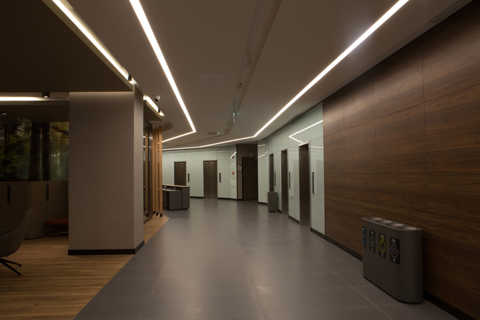

Product Applications
