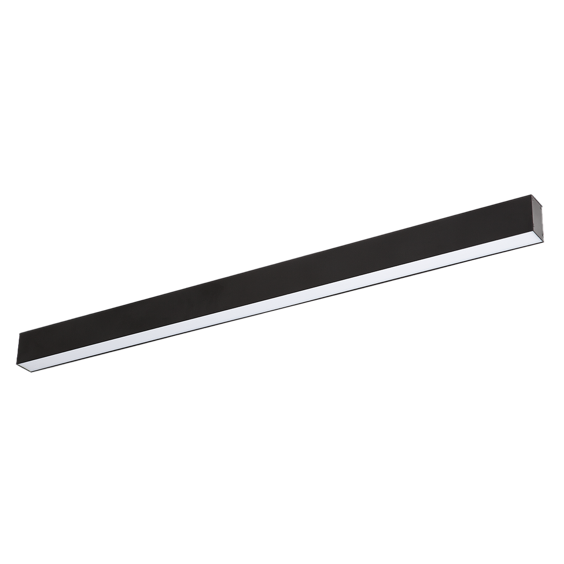

Offline M
Surface Mounted Linear Luminary
Optics
Opal Diffuser
Luminous Flux
2376 lm / 3610 lm / 4751 lm / 6081 lm
Consumption Power
25 W / 38 W / 50 W / 64 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 03
70K
Colour Options
RAL 9016
RAL 9010
Product Features
- Luminaire Group Linear
- Mounting Type Surface Mounted
- Luminary Color RAL 9016 - RAL 9010
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 2376 lm / 3610 lm / 4751 lm / 6081 lm
- Consumption Power 25 W / 38 W / 50 W / 64 W
- Luminaire Efficiency 95 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet | LDT |
|---|---|---|---|---|---|---|---|
| OFL 073 113 025S 8040 10 99 OP 40 TK | 25 | 2376 | 4000 | Opal / 120° | 1130x73x100 |
|
|
| OFL 073 169 038S 8040 10 99 OP 40 TK | 38 | 3610 | 4000 | Opal / 120° | 1690x73x100 |
|
|
| OFL 073 225 050S 8040 10 99 OP 40 TK | 50 | 4751 | 4000 | Opal / 120° | 2250x73x100 |
|
|
| OFL 073 281 064S 8040 10 99 OP 40 TK | 64 | 6081 | 4000 | Opal / 120° | 2810x73x100 |
|
|
