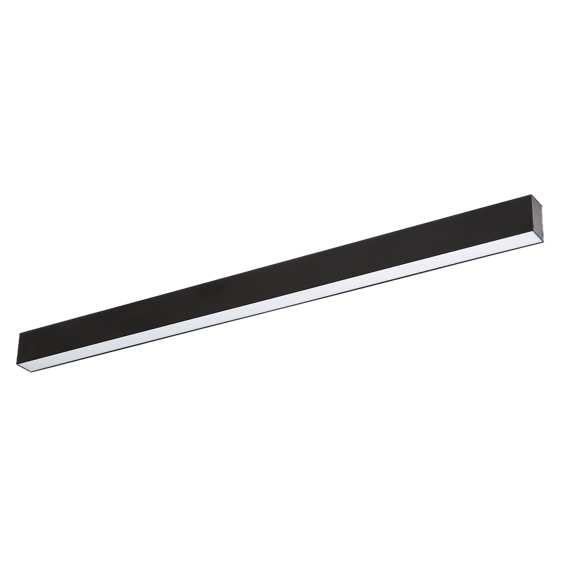

Offline S
Surface Mounted Linear Luminary
Optics
Opal Diffuser
Luminous Flux
1820 lm / 2660 lm / 3500 lm / 4410 lm
Consumption Power
26 W / 38 W / 50 W / 60 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 03
70K
Colour Options
RAL 9016
RAL 9010
Product Features
- Luminaire Group Linear
- Mounting Type Surface Mounted
- Luminary Color RAL 9016 - RAL 9010
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 1820 lm / 2660 lm / 3500 lm / 4410 lm
- Consumption Power 26 W / 38 W / 50 W / 60 W
- Luminaire Efficiency 70 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours

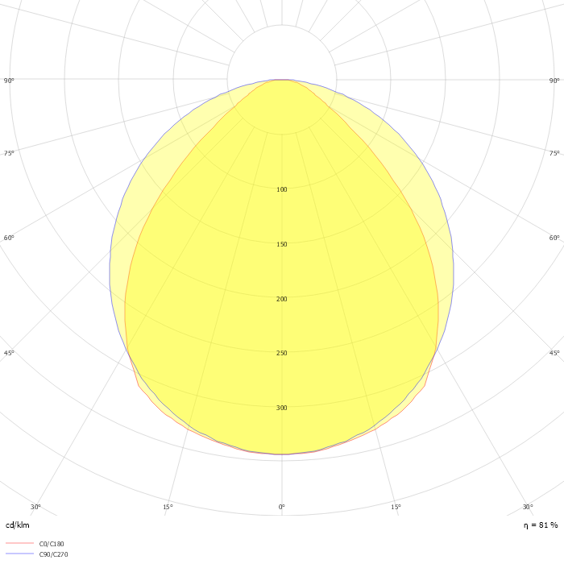

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet | LDT |
|---|---|---|---|---|---|---|---|
| OFL 047 113 026S 8040 10 99 OP 40 TK | 26 | 1820 | 4000 | 120° / Opal | 1130x47x70 |
|
|
| OFL 047 169 038S 8040 10 99 OP 40 TK | 38 | 2660 | 4000 | 120° / Opal | 1690x47x70 |
|
|
| OFL 047 225 050S 8040 10 99 OP 40 TK | 50 | 3500 | 4000 | 120° / Opal | 2250x47x70 |
|
|
| OFL 047 281 063S 8040 10 99 OP 40 TK | 60 | 4410 | 4000 | 120° / Opal | 2810x47x70 |
|
|
