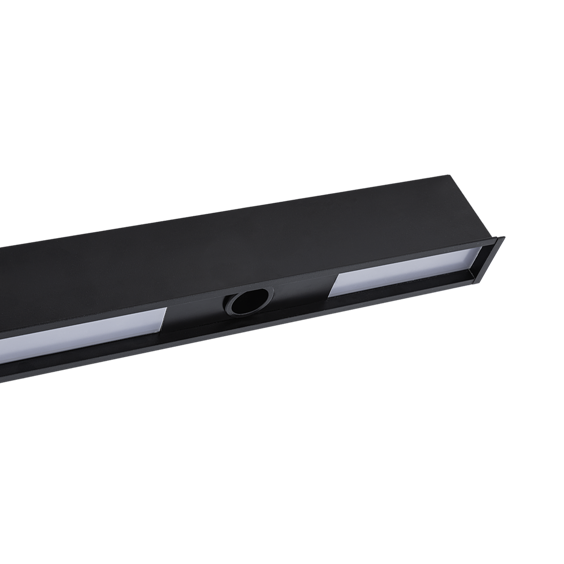

Outline Cent
Recessed Linear Luminary
Optics
Opal Difüzör & Lens 35°
Luminous Flux
1960 lm / 2870 lm / 3870 lm / 4830 lm
Consumption Power
28 W / 41 W / 54 W / 69 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 03
70K
Colour Options
RAL 9010
RAL 9005
Product Features
- Luminaire Group Linear
- Mounting Type Recessed
- Luminary Color RAL 9010 - RAL 9005
- Housing Aluminum extruded profile
- Optics Opal Difüzör & Lens 35°
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 1960 lm / 2870 lm / 3870 lm / 4830 lm
- Consumption Power 28 W / 41 W / 54 W / 69 W
- Luminaire Efficiency 70 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours

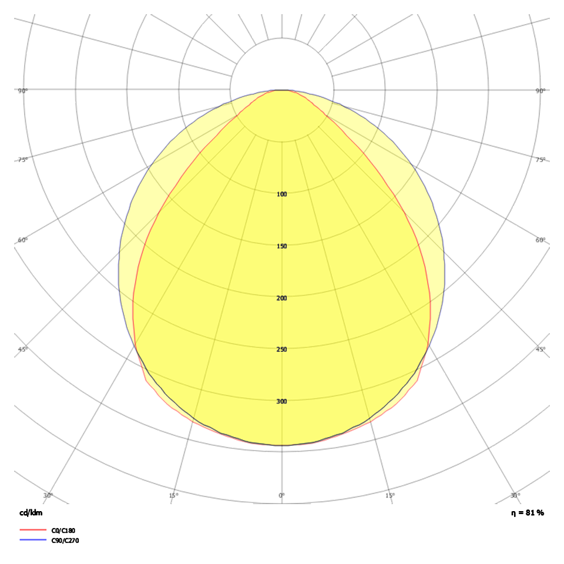

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| OUT 100 128 028A 8030 10 99 OP 40 LC | 28 | 1960 | 4000 | 35° | 1280x47x70 |
|
| OUT 100 184 041A 8030 10 99 OP 40 LC | 41 | 2870 | 4000 | 35° | 1840x47x70 |
|
| OUT 100 224 054A 8030 10 99 OP 40 LC | 54 | 3870 | 4000 | 35° | 2240x47x70 |
|
| OUT 100 296 069A 8030 10 99 OP 40 LC | 69 | 4830 | 4000 | 35° | 2960x47x70 |
|
