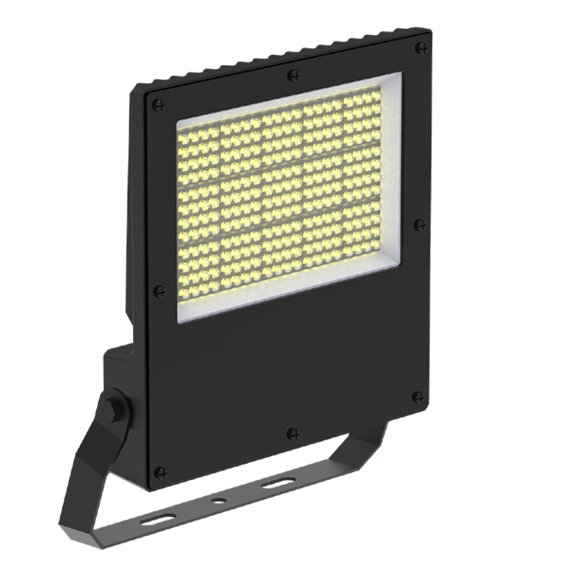

Protector
Pole Mounted Road Lighting & Floodlight Luminary
Optics
4 mm Tempered Glass
Luminous Flux
13000 lm / 19500 lm / 26000 lm
Consumption Power
100 W / 150 W / 200 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Mounting Type Pole Mounted
- Luminary Color RAL 9005
- Housing Electrostatic Powder Coated Aluminium
- Optics 4 mm Tempered Glass
- Light Source Mid Power LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 13000 lm / 19500 lm / 26000 lm
- Consumption Power 100 W / 150 W / 200 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option SPD, IP68 Connector
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CRI | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| PRD 032 039 100Y 8030 10 AS LN 66 00 | 100 | 13000 | 70 | 3000 | Asymmetric Lens | 386x320x62 |
|
| PRD 032 039 100Y 8030 10 SM LN 66 00 | 100 | 13000 | 70 | 3000 | Symmetrical Lens | 386x320x63 |
|
| PRD 032 039 150Y 8030 10 AS LN 66 00 | 150 | 19500 | 70 | 3000 | Asymmetrical Lens | 386x320x63 |
|
| PRD 032 039 150Y 8030 10 SM LN 66 00 | 150 | 19500 | 70 | 3000 | Symmetrical Lens | 386x320x63 |
|
| PRD 036 042 200Y 8030 10 AS LN 66 00 | 200 | 26000 | 70 | 3000 | Asymmetrical Lens | 421x360x62 |
|
| PRD 036 042 200Y 8030 10 SM LN 66 00 | 200 | 26000 | 70 | 3000 | Symmetrical Lens | 421x360x62 |
|
Download
