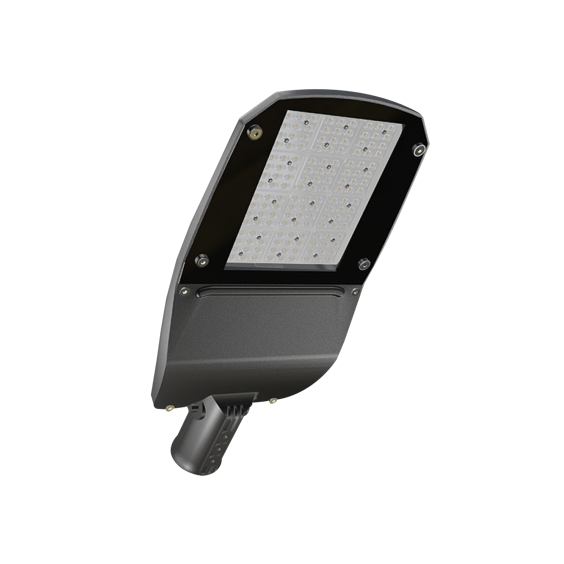

Roadster-M (1)
Road Lighting & Floodlight Luminary
Optics
Symmetrical / Asymmetrical° Lens & Tempered Glass
Luminous Flux
18750 lm / 22000 lm / 25500 lm / 27750 lm / 30750 lm
Consumption Power
150 W / 180 W / 200 W / 220 W / 240 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Luminary Color RAL 9005
- Housing Aluminum Injection
- Optics Symmetrical / Asymmetrical° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -40°C / +40°C
- Luminous Flux 18750 lm / 22000 lm / 25500 lm / 27750 lm / 30750 lm
- Consumption Power 150 W / 180 W / 200 W / 220 W / 240 W
- Luminaire Efficiency 125 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours

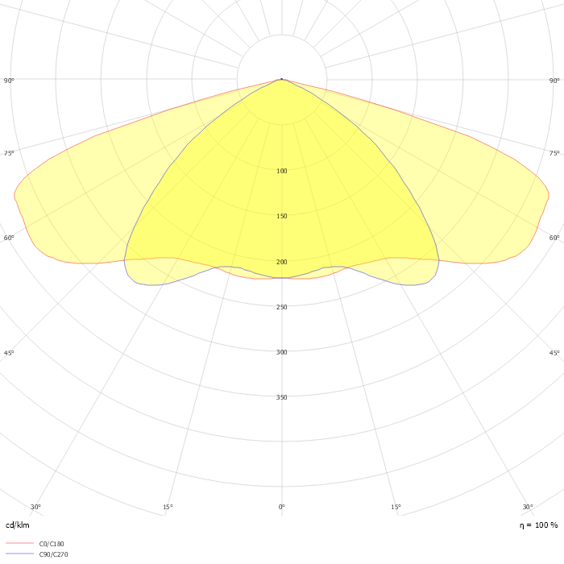

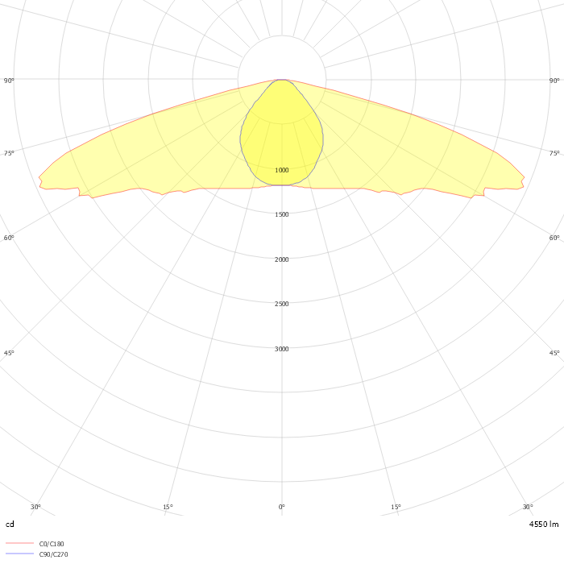

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| ROA 030 065 150M 8040 10 AS CM 66 00 | 150 | 18750 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 180M 8040 10 AS CM 66 00 | 180 | 22000 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 200M 8040 10 AS CM 66 00 | 200 | 25500 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 220M 8040 10 AS CM 66 00 | 220 | 27750 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 240M 8040 10 AS CM 66 00 | 240 | 30750 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 180M 8040 10 SM CM 66 00 | 180 | 22000 | 4000 | Symmetrical Lens | 305x653x76 |
|
| ROA 030 065 220M 8040 10 SM CM 66 00 | 220 | 25500 | 4000 | Symmetrical Lens | 305x653x76 |
|
| ROA 030 065 240M 8040 10 SM CM 66 00 | 240 | 30750 | 4000 | Symmetrical Lens | 305x653x76 |
|
| ROA 030 065 150M 8040 10 SM CM 66 00 | 150 | 18750 | 4000 | Asymmetric Lens | 305x653x76 |
|
| ROA 030 065 200M 8040 10 SM CM 66 00 | 200 | 25500 | 4000 | Asymmetric Lens | 305x653x76 |
|
