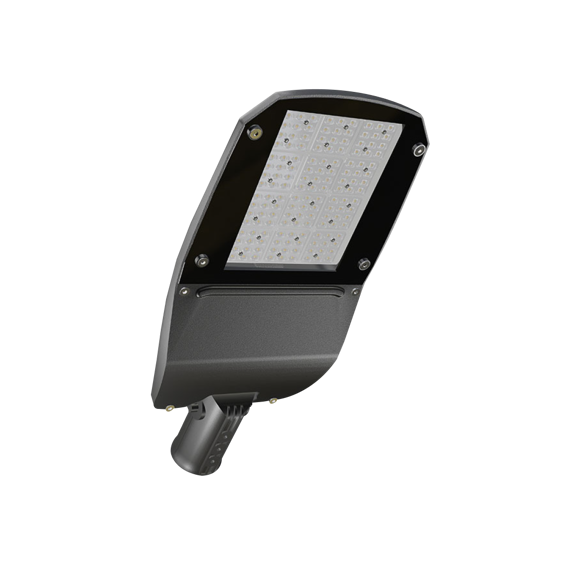

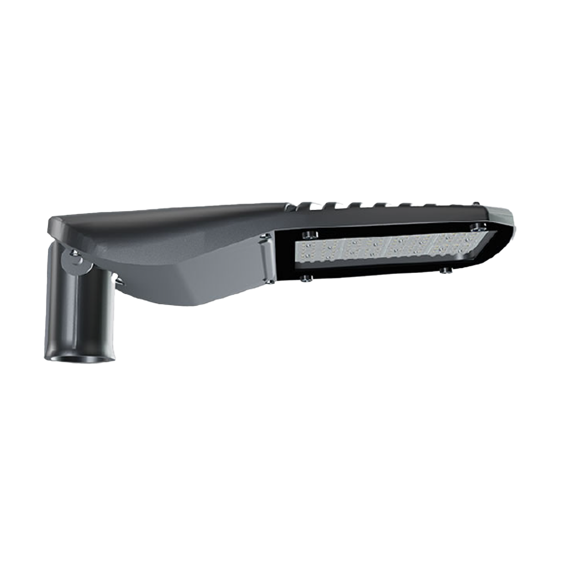

Roadster-M
Road Lighting & Floodlight Luminary
Optics
Symmetrical / Asymmetrical° Lens & Tempered Glass
Luminous Flux
10000 lm / 12500 lm / 15000 lm / 17500 lm
Consumption Power
100 W / 120 W / 140 W / 80 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Luminary Color RAL 9005
- Housing Aluminum Injection
- Optics Symmetrical / Asymmetrical° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -40°C / +40°C
- Luminous Flux 10000 lm / 12500 lm / 15000 lm / 17500 lm
- Consumption Power 100 W / 120 W / 140 W / 80 W
- Luminaire Efficiency 125 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours

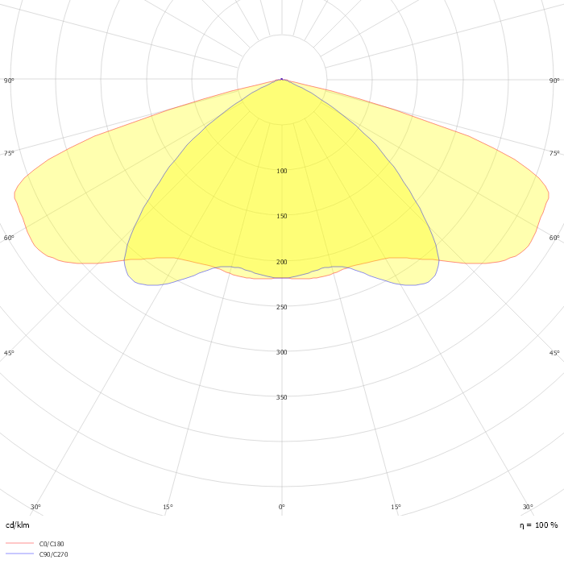

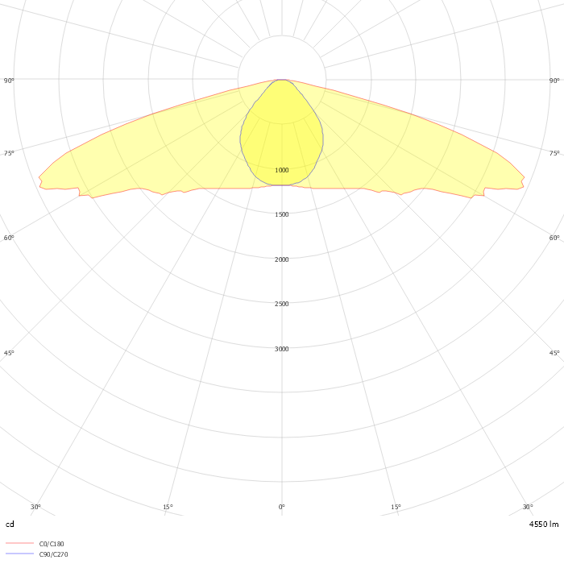

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| ROA 018 051 080M 8040 10 AS CM 66 00 | 80 | 10000 | 4000 | Asymmetric Lens | 182x516x76mm |
|
| ROA 018 051 100M 8040 10 AS CM 66 00 | 100 | 12500 | 4000 | Asymmetric Lens | 182x516x76mm |
|
| ROA 018 051 120M 8040 10 AS CM 66 00 | 120 | 15000 | 4000 | Asymmetric Lens | 182x516x76mm |
|
| ROA 018 051 140M 8040 10 AS CM 66 00 | 140 | 17500 | 4000 | Asymmetric Lens | 182x516x76mm |
|
| ROA 018 051 080M 8040 10 SM CM 66 00 | 80 | 10000 | 4000 | Simetrik Lensli | 182x516x76mm |
|
| ROA 018 051 100M 8040 10 SM CM 66 00 | 100 | 12500 | 4000 | Symmetrical Lens | 182x516x76mm |
|
| ROA 018 051 120M 8040 10 SM CM 66 00 | 120 | 15000 | 4000 | Symmetrical Lens | 182x516x76mm |
|
| ROA 018 051 140M 8040 10 SM CM 66 00 | 140 | 17500 | 4000 | Symmetrical Lens | 182x516x76mm |
|
Download
