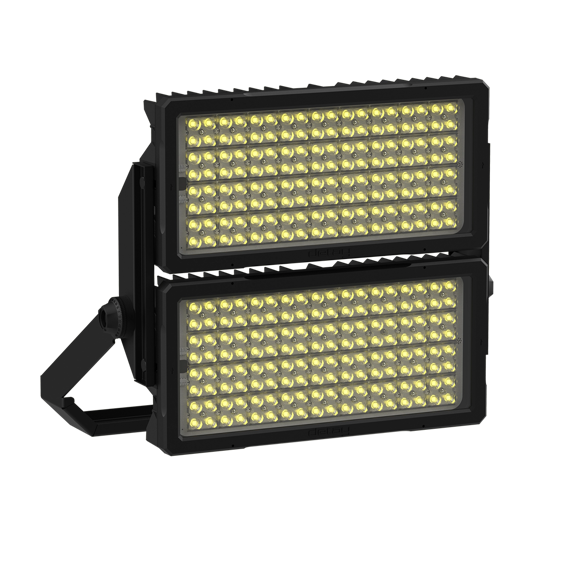

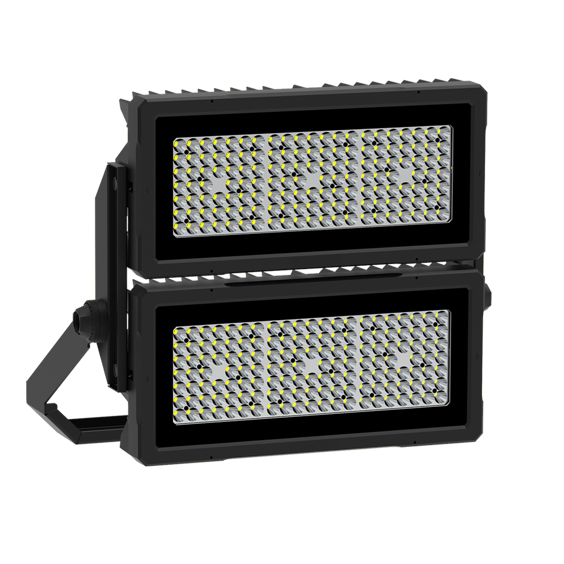

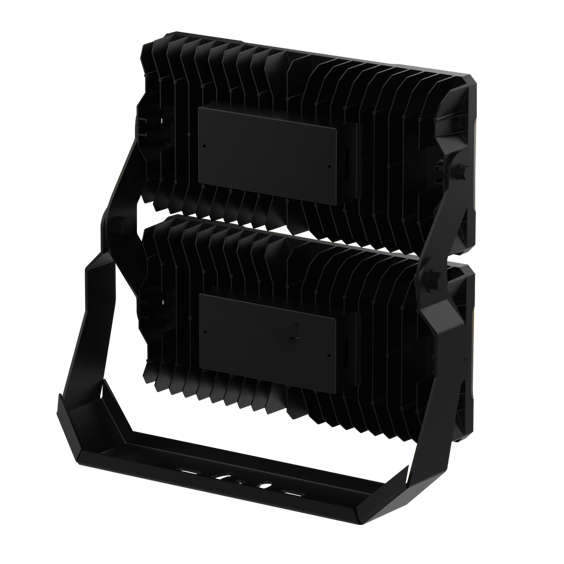

Proflood
Road Lighting & Floodlight Luminary
Optics
4 mm Tempered Glass
Luminous Flux
104000 lm
Consumption Power
800 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Luminary Color RAL 9005
- Housing Electrostatic Powder Coated
- Optics 4 mm Tempered Glass
- Light Source Mid Power LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 104000 lm
- Consumption Power 800 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option SPD, IP68 Connector

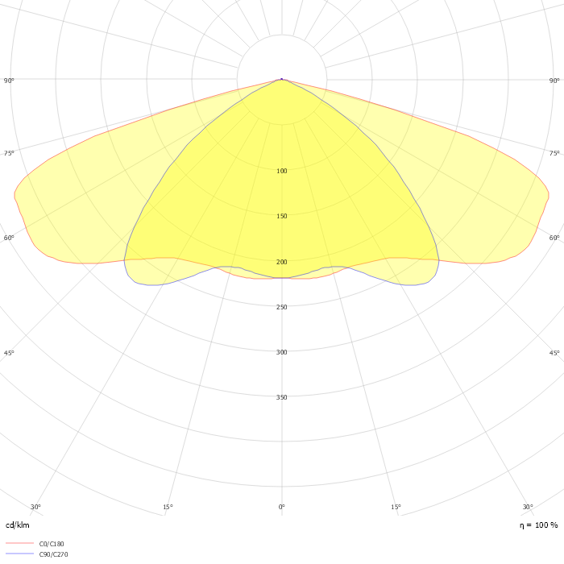

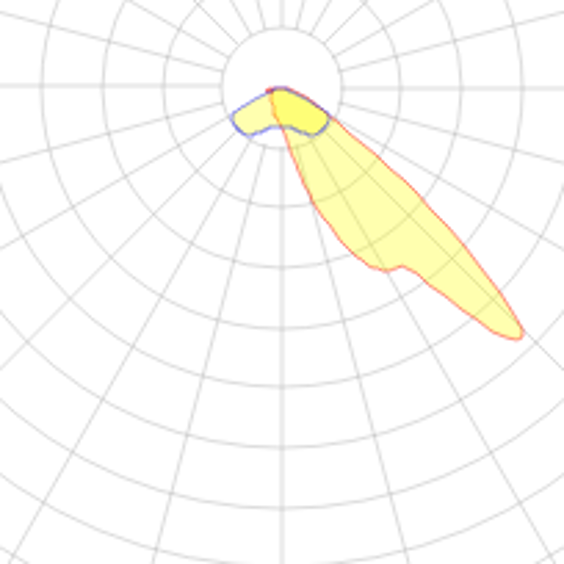

Optics

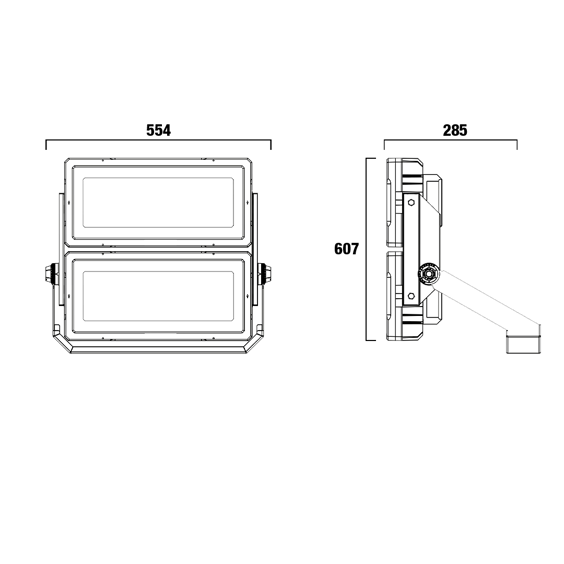

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| PRD 032 039 100Y 8030 10 AS LN 66 00 | 800 | 104000 | 4000 | Asymmetric Lens | 554x607x285 |
|
| PRD 032 039 100Y 8030 10 SM LN 66 00 | 800 | 104000 | 4000 | Symmetrical Lens | 554x607x285 |
|
| PRD 032 039 150Y 8030 10 AS LN 66 00 | 800 | 104000 | 4000 | Asymmetrical Lens | 554x607x285 |
|
| PRD 032 039 150Y 8030 10 SM LN 66 00 | 800 | 104000 | 4000 | Symmetrical Lens | 554x607x285 |
|
| PRD 036 042 200Y 8030 10 AS LN 66 00 | 800 | 104000 | 4000 | Asymmetrical Lens | 554x607x285 |
|
| PRD 036 042 200Y 8030 10 SM LN 66 00 | 800 | 104000 | 4000 | Symmetrical Lens | 554x607x285 |
|
Download
