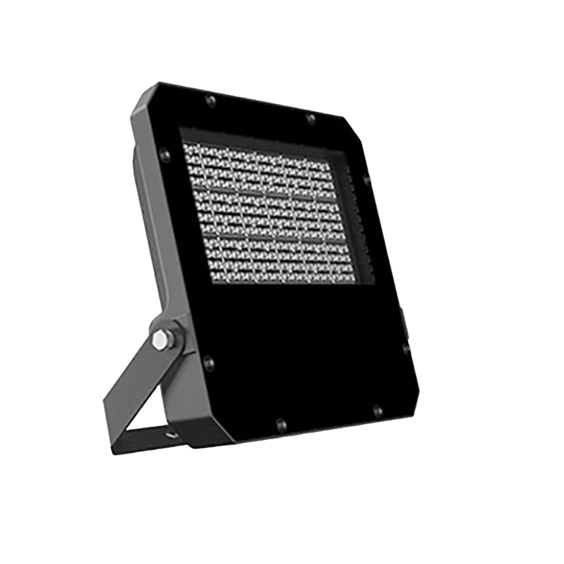

Promete M
Road Lighting & Floodlight Luminary
Optics
Symmetrical / Asymmetrical° Lens & Tempered Glass
Luminous Flux
15600 lm / 18200 lm / 19500 lm / 21600 lm / 24000 lm / 29000 lm
Consumption Power
120 W / 140 W / 150 W / 180 W / 200 W / 250 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Luminary Color RAL 9005
- Housing Aluminum Injection Electrostatic Powder Coated
- Optics Symmetrical / Asymmetrical° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -40°C / +55°C
- Luminous Flux 15600 lm / 18200 lm / 19500 lm / 21600 lm / 24000 lm / 29000 lm
- Consumption Power 120 W / 140 W / 150 W / 180 W / 200 W / 250 W
- Luminaire Efficiency 120 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours

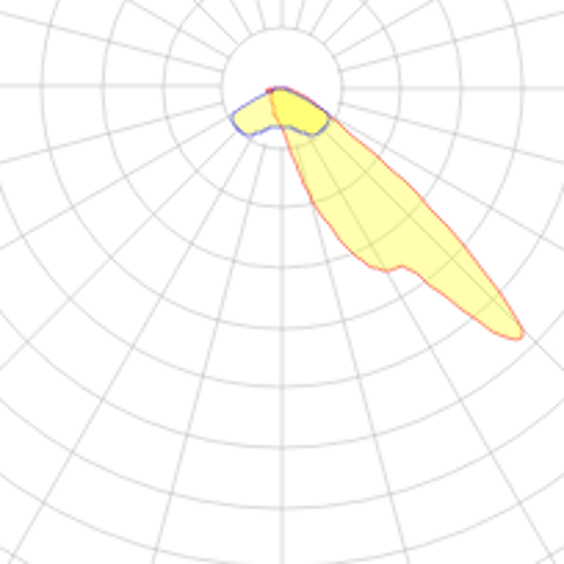

Optics

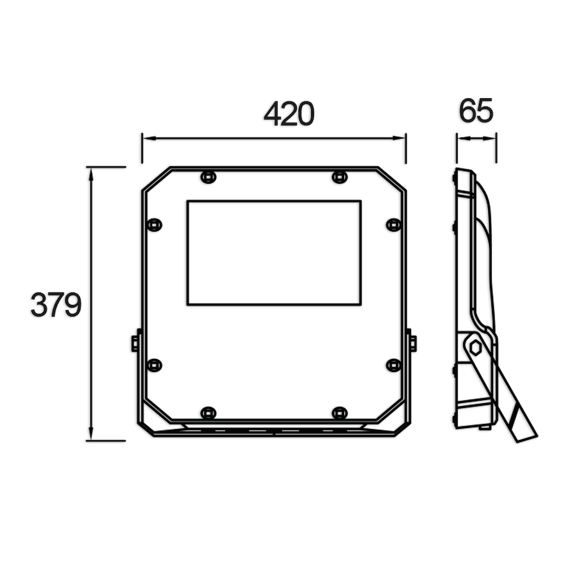

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| PRO 042 038 120Y 8040 10 AS LN 66 00 | 120 | 15600 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 140Y 8040 10 AS LN 66 00 | 140 | 18200 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 150Y 8040 10 AS LN 66 00 | 150 | 19500 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 180Y 8040 10 AS LN 66 00 | 180 | 21600 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 200Y 8040 10 AS LN 66 00 | 200 | 24000 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 250Y 8040 10 AS LN 66 00 | 250 | 29000 | 4000 | Asymmetric Lens | 420x379x65 |
|
| PRO 042 038 120Y 8040 10 SM LN 66 00 | 120 | 15600 | 4000 | Symmetrical | 420x379x65 |
|
| PRO 042 038 140Y 8040 10 SM LN 66 00 | 140 | 15600 | 4000 | Symmetrical | 420x379x65 |
|
| PRO 042 038 150Y 8040 10 SM LN 66 00 | 150 | 19500 | 4000 | Symmetrical | 420x379x65 |
|
| PRO 042 038 180Y 8040 10 SM LN 66 00 | 180 | 21600 | 4000 | Symmetrical | 420x379x65 |
|
| PRO 042 038 200Y 8040 10 SM LN 66 00 | 200 | 24000 | 4000 | Symmetrical | 420x379x65 |
|
| PRO 042 038 250Y 8040 10 SM LN 66 00 | 250 | 29000 | 4000 | Symmetrical | 420x379x65 |
|
Download
