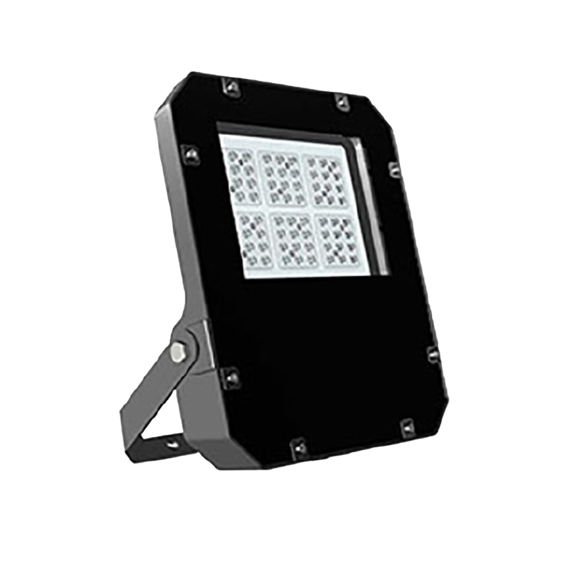

Promete S
Road Lighting & Floodlight Luminary
Optics
Symmetrical / Asymmetrical° Lens & Tempered Glass
Luminous Flux
10900 lm / 4800 lm / 7800 lm / 9600 lm
Consumption Power
100 W / 40 W / 60 W / 80 W
Light Color Temperature (CCT)
3000K/4000K/6500K
220V 240V
IP 66
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Road Lighting & Floodlight
- Luminary Color RAL 9005
- Housing Aluminum Injection
- Optics Symmetrical / Asymmetrical° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -40°C / +55°C
- Luminous Flux 10900 lm / 4800 lm / 7800 lm / 9600 lm
- Consumption Power 100 W / 40 W / 60 W / 80 W
- Luminaire Efficiency 120 lm/W
- Color Rendering (CRI) >70
- Light Color Temperature (CCT) 3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours

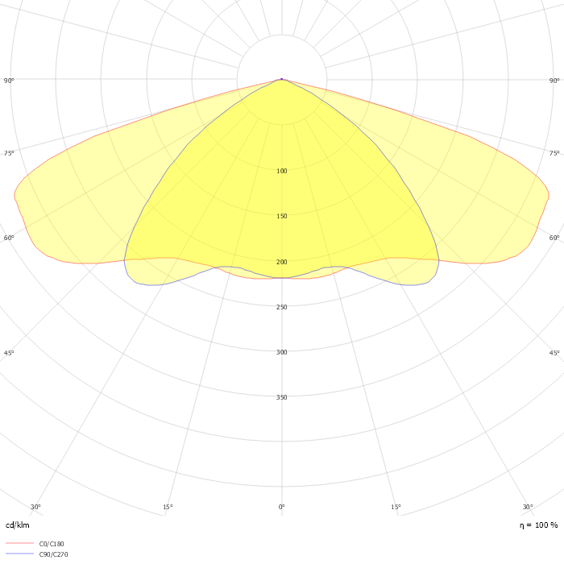

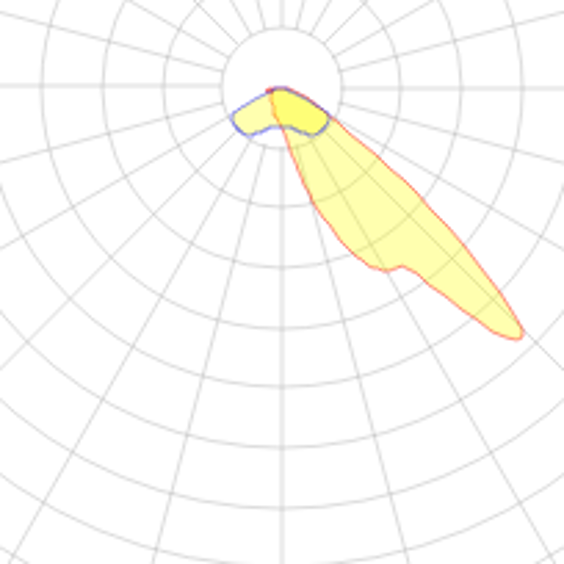

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| PMT 028 033 040Y 8040 10 AS LN 66 00 | 40 | 4800 | 4000 | Asymmetric Lens | 278x330x66 |
|
| PMT 028 033 060Y 8040 10 AS LN 66 00 | 60 | 7800 | 4000 | Asymmetric Lens | 278x330x66 |
|
| PMT 028 033 080Y 8040 10 AS LN 66 00 | 80 | 9600 | 4000 | Asymmetric Lens | 278x330x66 |
|
| PMT 028 033 100Y 8040 10 AS LN 66 00 | 100 | 10900 | 4000 | Asymmetric Lens | 278x330x66 |
|
| PMT 028 033 040Y 8040 10 SM LN 66 00 | 40 | 4800 | 4000 | Symmetrical Lens | 278x330x66 |
|
| PMT 028 033 060Y 8040 10 SM LN 66 00 | 60 | 7800 | 4000 | Symmetrical Lens | 278x330x66 |
|
| PMT 028 033 080Y 8040 10 SM LN 66 00 | 80 | 9600 | 4000 | Symmetrical Lens | 278x330x66 |
|
| PMT 028 033 100Y 8040 10 SM LN 66 00 | 100 | 10900 | 4000 | Symmetrical Lens | 278x330x66 |
|
