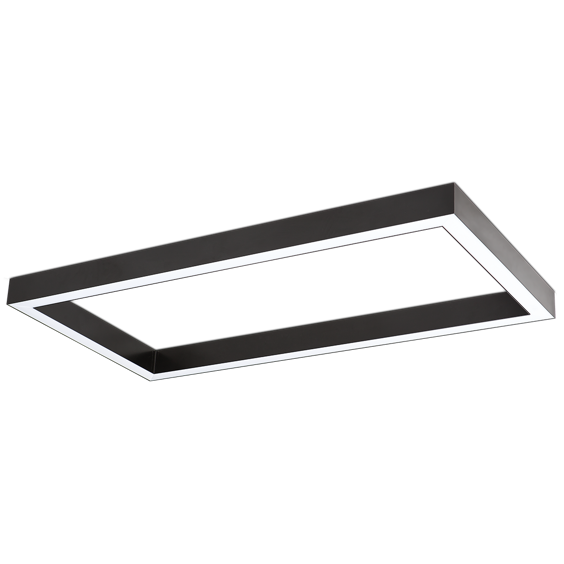

Shorerec S 1080X1080

ShoreRec S

Surface Mounted Linear Luminary

Optics
Opal Diffuser

Luminous Flux
11232 lm / 14976 lm / 18720 lm / 22464 lm

Consumption Power
104 W / 130 W / 156 W / 78 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9010
RAL 9005
Product Features
  • Luminaire Group Linear
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9010 - RAL 9005
  • Housing Aluminum extruded profile
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 11232 lm / 14976 lm / 18720 lm / 22464 lm
  • Consumption Power 104 W / 130 W / 156 W / 78 W
  • Luminaire Efficiency 144 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Optics

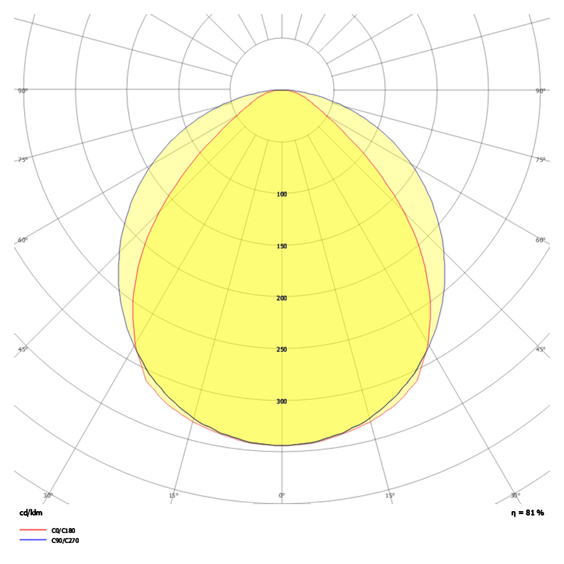

Shorerec S Isik Egrisi
Dimensions
Shorerec S 890X1450Shorerec S 1450X2010Shorerec S 610X1170Shorerec S 1170X1730
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
SRC 117 061 078S 8040 10 99 OP 40 00 78 11232 4000 120° Opal Diffuser 610x1170x47x70 Datasheet
SRC 145 089 104S 8040 10 99 OP 40 00 104 14976 4000 120° Opal Diffuser 890x1450x47x70mm Datasheet
SRC 173 117 130S 8040 10 99 OP 40 00 130 18720 4000 120° Opal Diffuser 1170x1730x47x70 Datasheet
SRC 201 145 156S 8040 10 99 OP 40 00 156 22464 4000 120° Opal Diffuser 1450x2010x47x70 Datasheet
Download
