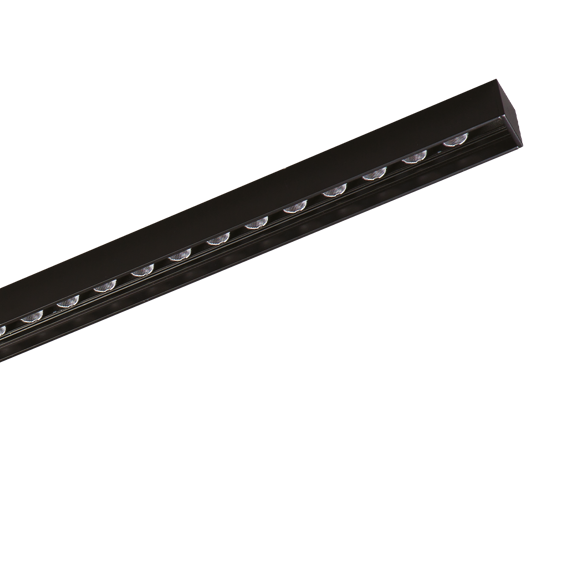

Thinpower 1080X1080

ThinPower

Surface Mounted Linear Luminary

Optics
Reflector

Luminous Flux
4370 lm

Consumption Power
36 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Tse 220V 240V IP 40 IK 03 70KLED life
Colour Options
RAL 9010
RAL 9005
Product Features
  • Luminaire Group Linear
  • Mounting Type Surface Mounted
  • Luminary Color RAL 9010 - RAL 9005
  • Housing Aluminum extruded profile
  • Optics Reflector
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 03
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 4370 lm
  • Consumption Power 36 W
  • Luminaire Efficiency 121 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Optics

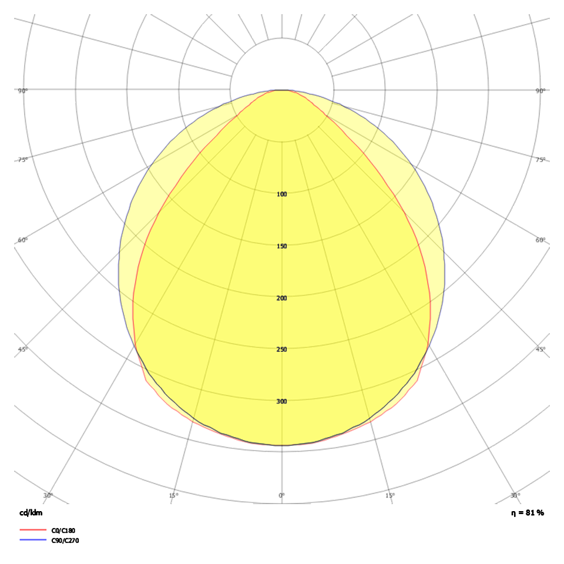

Thinpower Isik EgrisiThinpower Isik Egrisi 40º
Previous
Previous
Dimensions
Thinpower Teknik (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
TPW 030 090 036S 8040 10 40 LN 40 TK 36 4370 4000 40° Opal Diffuser 30x30x1000 Datasheet
Download

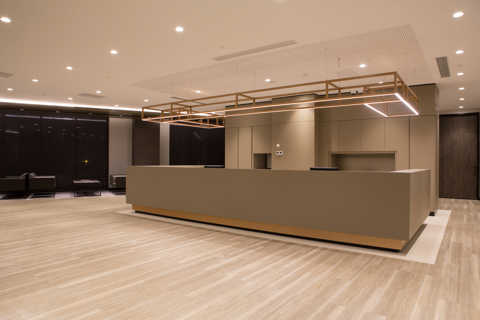

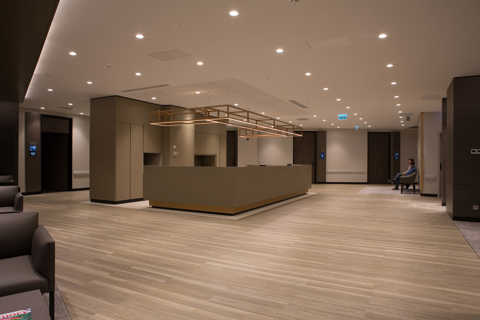

Product Applications
5K6A18575K6A1855
